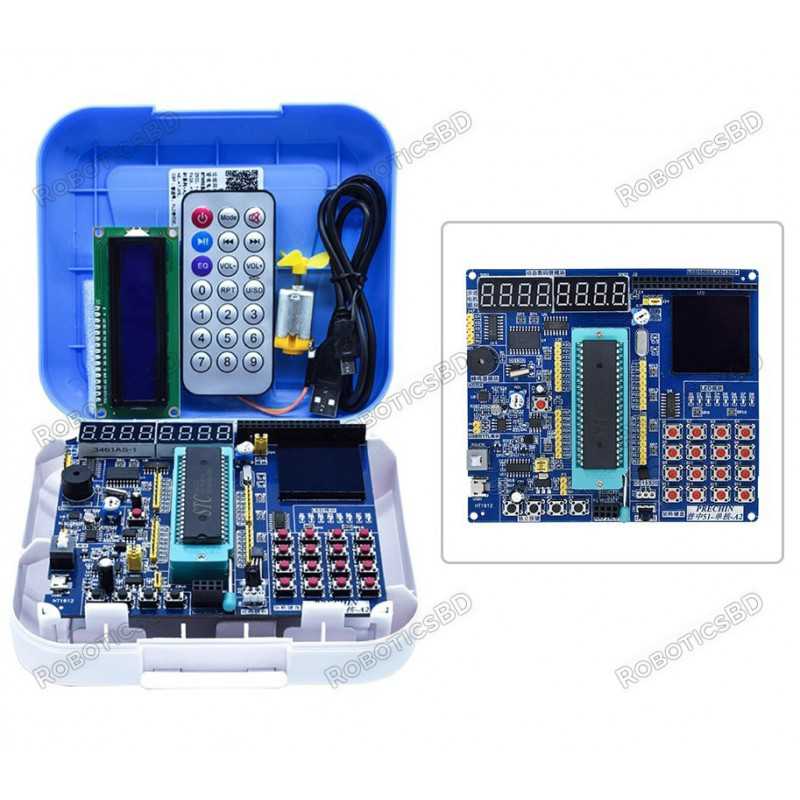

8051 Microcontroller System STC89C52 Development Board Kit

Description:

• It is an 8051 microcontroller development board, fully compatible with WIN10/XP 32/64-bit operating system. A USB cable can fully realize program/serial communication.

• Its accessories include blue screen with backlight LCD1602, infrared remote control, integrated infrared receiver, and other accessories, which give full play to the expandability of the MINI8051 development board. C51's external dimensions and super expandability make C51 easy to use in various DIY fields.

Note: The plastic box may not be included with the product. However, it is important to note that due to the nature of shipping, there is a possibility of the plastic box becoming damaged in transit.

Feature:

• Support online learning. It does not require cumbersome downloads which can make learning more convenient;

• Add host computer software to control the development board on the computer side, which is super interesting and fun. Use the USB cable to connect the computer, you can use the intelligent host computer client to directly control the development board, two-way real-time communication, you can control the development board, and you can collect the data returned by the development board in real-time;

• It uses a 1.6mm thick high-quality PCB board, which is durable and not deformed, surpassing the ordinary 1.2mm thick development board;

• The support structure uses high-quality copper posts instead of cheap plastic support posts;

• It uses a 1.5-meter USB data cable with a thick copper core and shielding, and data transmission is stable;

• Blue screen with backlight 1602 for clearer viewing;

• High-quality adjustable resistors for durability;

• It uses high-quality self-locking switches and imported reeds, and the feel and durability are far superior to ordinary switches. All-copper USB socket, sensitive contacts, long-term use without bad contact;

• High-brightness SMD LED lights, red, green, yellow, and blue four-color lights;

• It uses a 4-digit common negative digital tube, which is suitable for beginners and can display 4 digits in real time;

• It has four independent buttons, located on the right-hand side of the board, for flexible operation. It is a common input interface for single-chip microcomputers. A reset button can perform a hardware reset on the microcontroller program;

• It adopts a high-power infrared emission tube with high signal strength, and can remotely control home appliances within 7 meters. Additional leads to 4-bit 5V power interface, 4-bit 3.3V power interface, and 4-bit GND interface;

• The accessories have an integrated infrared receiving head, which is plug-and-play. With the provided infrared remote control, it is easy to learn infrared decoding.

Parameter:

• Product Name:8051 Microcontroller Development Board
• Chip: STC89C52
• Compatible System: WIN10/XP 32/64 bit operating system
• Types of Accessories: 10 kinds
• Work Temperature:-25℃~85℃
• Work Humidity:5%~95%RH
• Size:150x130x50mm

Package:

• C51 motherboard x1
• Infrared receiving tube x1
• DS18B20 Temperature sensor x1
• Screen with backlight 1602 LCD screen x1
• MicroUSB data cable x1
• Infrared remote control x1
• STC Single chip microcomputer x1
• The packing box x1
• DC motor x1
