Maixduino AI Development Kit K210 RISC-V AI + IoT ESP32

RBD-2830
DFRobot

Based on K210 RISC-V AI processor, the Maixduino AI development board comes with MI AI module and ESP32 module for WiFi and Bluetooth connectivity in the Arduino UNO form factor.

K210 comes with a dual-core processor chip with independent FPU, 64 bits CPU bit width, 8 MB on-chip SRAM, 400 adjustable nominal frequency, and double-precision FPU supporting multiplication, division, and square root operation. Besides, Maixduino AI Development Board is equipped with neural network hardware accelerator KPU, voice processing unit (APU), programmable IO array (FPIOA/IOMUX), and Fast Fourier Transform Accelerator

BDT 9,500.00
BDT 9,500.00 BDT 9,500.00 BDT 9,500.00 BDT 9,500.00
Tax included Tax excluded Tax included Tax excluded
BDT 9,500.00 Tax excluded
BDT 9,500.00 Tax included
BDT 0.00 Tax
BDT 9,500.00 Tax excluded
BDT 0.00 Tax
BDT 9,500.00 Tax included
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

INTRODUCTION

Based on K210 RISC-V AI processor, the Maixduino AI development board comes with MI AI module and ESP32 module for WiFi and Bluetooth connectivity in the Arduino UNO form factor.

K210 comes with a dual-core processor chip with independent FPU, 64 bits CPU bit width, 8 MB on-chip SRAM, 400 adjustable nominal frequency, and double-precision FPU supporting multiplication, division, and square root operation. Besides, Maixduino AI Development Board is equipped with neural network hardware accelerator KPU, voice processing unit (APU), programmable IO array (FPIOA/IOMUX), and Fast Fourier Transform Accelerator. In the AI processing, K210 can perform operations such as convolution, batch normalization, activation, and pooling. At the same time, the pre-processing of voice direction scanning and voice data output can also be performed.

The on-board wireless module of the product is the ESP32-WROOM-32 with dual-core ESP32 Xtensa LX6 processor, 2.4GHz 802.11.b/g/n WiFi 4 and Bluetooth 4.2 LE connectivity. Besides, it has DVP camera connector, LCD display connector, built-in MEMS microphone, TM8211 I2S audio DAC, 3W power amplifier, USB 2.0 Device type C port for powering and programming via dual channel CH522 chip to support for both K210 and ESP32, Arduino UNO compatible headers with digital I/Os / PWM, I2C, UART,  6x analog inputs, and power signals.

Application: smart home(Robotic vacuum cleaner and Smart speaker), medical device, Industry 4.0, agriculture, and education.

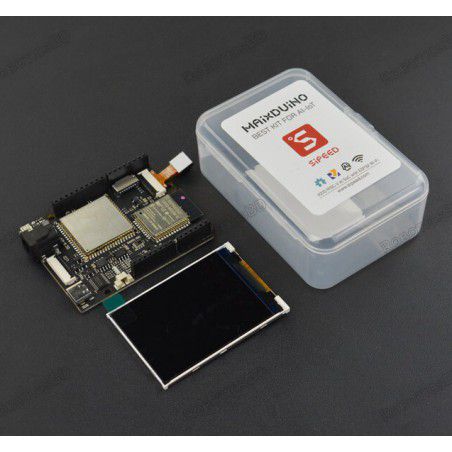

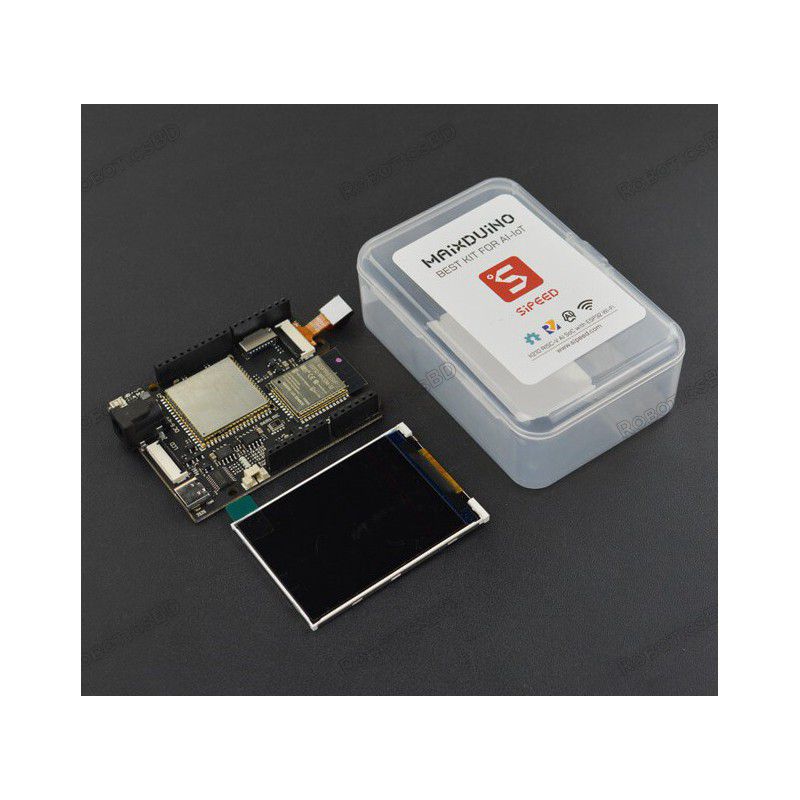

The Kit includes: Maixduino controller, 2.4” LCD screen, GC0328 camera

Note: The shape and pins are compatible with Arduino UNO R3 but the voltage level is not compatible, which requires great attention, otherwise the board can be damaged. Maixduino supports 3.3V and 1.8V levels, and the pins are divided into several BANKs, each BANK can be set to a voltage of 1.8V or 3.3V by software, However, these pins are not 5V tolerated. Therefore, when using the peripheral device of Arduino, be careful not to short the 5V to the pin or RST (1.8V) pin.

Maixduino AI Development Kit K210 RISC-V AI + lOT ESP32

FEATURES

  • CPU: RISC-V Dual Core 64bit, with FPU; 400MHz standard frequency (overclockable)
  • Built-in neural network processor
  • Connector: compatible with Arduino interface, TF card slot, speaker port
  • Wireless: support 2.4G 802.11.b/g/n and Bluetooth 4.2
  • Audio: MEMS microphone, 3W speaker output
  • 8 Bit (256 levels) adjustable color, 5Bit (32 levels) brightness adjustment
  • DVP Camera Interface: 24P 0.5mm FPC connector, support 0V2640, 5640, 0V7740, etc.
  • LCD Interface: 24P 0.5mm FPC connector; support 8bit MCU LCD
  • ESP32 Module: support 2.4G 802.11.b/g/n
                                    802.11 n (2.4 GHz) speed reaches 150 Mbps

                                    Bluetooth v4.2 full specification, including traditional Bluetooth (BR / EDR) and Bluetooth Low Energy (BLE)

  • Development Environment: support for Arduino IED, MaixPy IDE, OpenMV IDE

SPECIFICATION

  • Dimension: 68x 54mm/2.68x 2.13”
  • Power Input: USB Type-C (6~12V)
  • Temperature Rise: <20K
  • Operating Temperature: -30~85ºC
  • MCU: ESP8285
  • Wireless Standard: 802.11 b/g/n
  • Frequency Range: 2400Mhz~2483.5Mhz
  • Transmit Power: 802.11.b:+15dBm
                                       802.11.g:+10dBm(54Mbps)

                                       802.11.n:+10dBm(65Mbps)

  • Wireless Connector: IPEX 3.0x3.0mm
  • WiFi Mode: Station/SoftAP/SoftAP+Station

DOCUMENTS

SHIPPING LIST

  • Maixduino controller x1
  • 2.4” LCD screen x1
  • GC0328 camera x1
Product Details
RBD-2830
1 Item

Specific References

EAN13
2830
