GY-50 L3G4200D 3-Axis Gyroscope Sensor

RBD-2733

GY-50 L3G4200D 3-Axis Gyroscope Sensor Module

  •   Three selectable full scales (250/500/2000 dps)
  •   I2C and SPI digital output interface avail.
  •   Two I2C address you can select by jumpers
  •   16 bit-rate value data output
  •   8-bit temperature data output
  •   Wide supply voltage: 2.4 V to 3.6 V
  •   Low voltage-compatible IO (1.8 V)
  •   Embedded power-down and sleep mode
  •   Embedded temperature sens
BDT 380.00
BDT 380.00 BDT 380.00 BDT 380.00 BDT 380.00
Tax included Tax excluded Tax included Tax excluded
BDT 380.00 Tax excluded
BDT 380.00 Tax included
BDT 0.00 Tax
BDT 380.00 Tax excluded
BDT 0.00 Tax
BDT 380.00 Tax included
Quantity
100 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Description

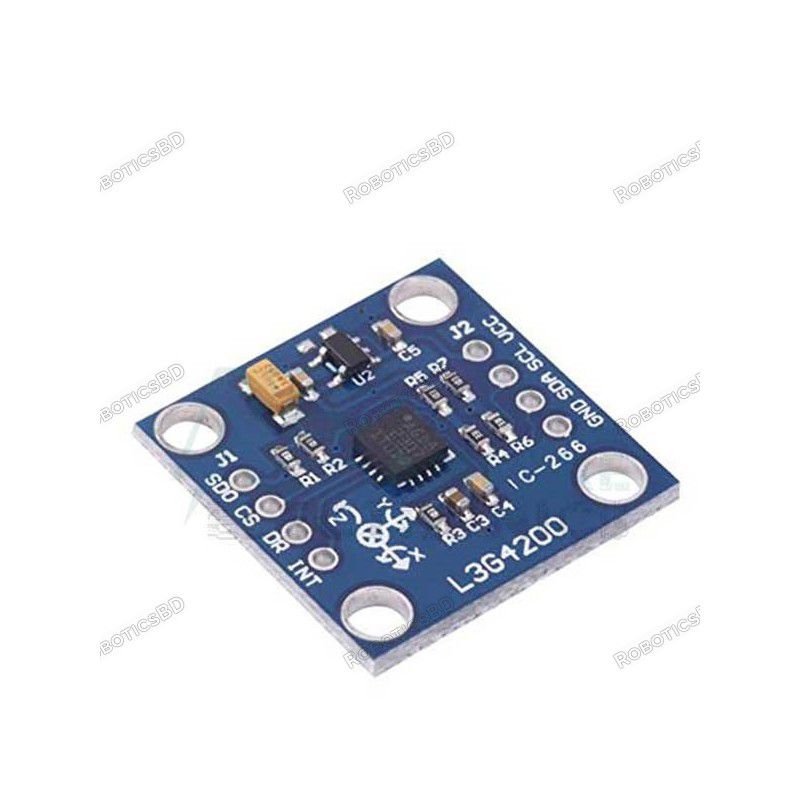

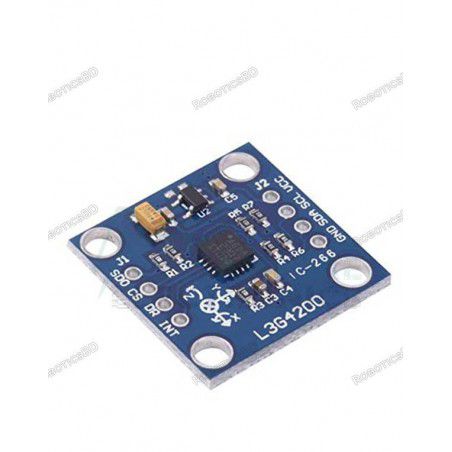

GY-50 L3G4200D 3-Axis Gyroscope Sensor Module

This is a breakout board for the L3G4200D low-power three-axis angular rate sensor. The L3G4200D has a full scale of ±250/±500/±2000 dps and is capable of measuring rates with a user-selectable bandwidth. These work great in gaming and virtual reality input devices, GPS navigation systems and robotics.

L3G4200D Features :

  •   Three selectable full scales (250/500/2000 dps)
  •   I2C/SPI digital output interface
  •   16 bit-rate value data output
  •   8-bit temperature data output
  •   Two digital output lines (interrupt and data ready)
  •   Integrated low- and high-pass filters with user selectable bandwidth
  •   Ultra-stable over temperature and time
  •   Wide supply voltage: 2.4 V to 3.6 V
  •   Low voltage-compatible IOs (1.8 V)
  •   Embedded power-down and sleep mode
  •   Embedded temperature sensor
  •   Embedded FIFO
  •   High shock survivability
  •   Extended operating temperature range (-40 °C to +85 °C)

Specifications:

  •   Three selectable full scales (250/500/2000 dps)
  •   I2C and SPI digital output interface avail.
  •   Two I2C address you can select by jumpers
  •   16 bit-rate value data output
  •   8-bit temperature data output
  •   Wide supply voltage: 2.4 V to 3.6 V
  •   Low voltage-compatible IO (1.8 V)
  •   Embedded power-down and sleep mode
  •   Embedded temperature sensor
  •   High shock survivability

Package Includes:

  • 1x GY-50 Module
