DSServo DS3218 20KG Digital Metal Servo with Metal Servo Horn 270 Degree

RBD-2674

  • Brand: DSSERVO
  • Model: DS3218MG
  • Stall Torque (5V): 19 kg/cm (263.8 oz/in)
  • Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
  • Dead Band: 3μs
  • Speed: 0.16 sec/60°(5V) / 0.14 sec/60°(6.8V)
  • Operating Voltage: 4.8 ~ 6.8 DC Volts
  • Weight: 60 g (2.12 oz)
  • Motor Type: DC Motor
  • Gear Type: Copper & Aluminum

    270 Degree Angle
BDT 2,950.00
BDT 2,950.00 BDT 2,950.00 BDT 2,950.00 BDT 2,950.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,950.00 Tax excluded
BDT 2,950.00 Tax included
BDT 0.00 Tax
BDT 2,950.00 Tax excluded
BDT 0.00 Tax
BDT 2,950.00 Tax included
Quantity
8 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

DS3218MG 20KG High Voltage Digital Servo

The DS3218MG is a high-performance programmable digital servo designed for a wide range of applications, including robots, mechanical arms, climbing cars, and remote control toys. With its fast heat dissipation, large torque, high compatibility, and responsive operation, this servo is an excellent choice for enthusiasts and professionals alike.

Key Features:

  • High-precision metal gears with hard anodizing for durability
  • CNC aluminum middle shell for enhanced strength
  • Waterproof design with rubber seals and screws for protection against water splash

Specifications:

  • Brand: DSSERVO
  • Model: DS3218MG
  • Stall Torque (5V): 19 kg/cm (263.8 oz/in)
  • Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
  • Dead Band: 3μs
  • Speed: 0.16 sec/60°(5V) / 0.14 sec/60°(6.8V)
  • Operating Voltage: 4.8 ~ 6.8 DC Volts
  • Weight: 60 g (2.12 oz)
  • Motor Type: DC Motor
  • Gear Type: Copper & Aluminum
  • Working Frequency: 1520μs / 333Hz
  • CE Certification: Yes
  • Size: 40 x 20 x 40.5 mm (1.58 x 0.79 x 1.60 in)

The DS3218MG servo features precision potentiometers for stable, low-noise operation. Its IP66 waterproof rating makes it ideal for use in environments with water splash. Equipped with dual ball bearings, this servo ensures smooth and reliable performance.

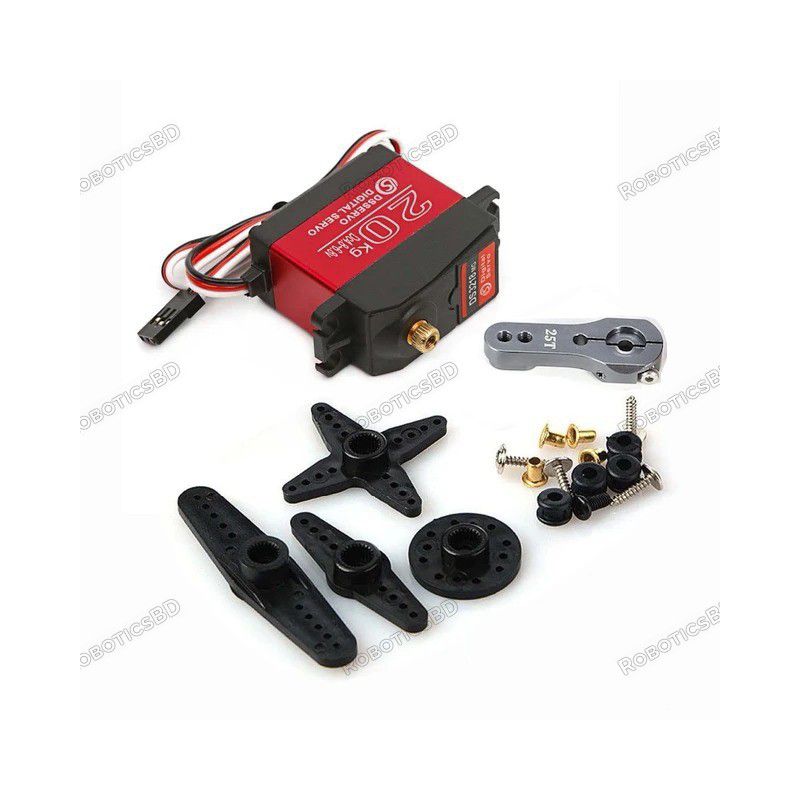

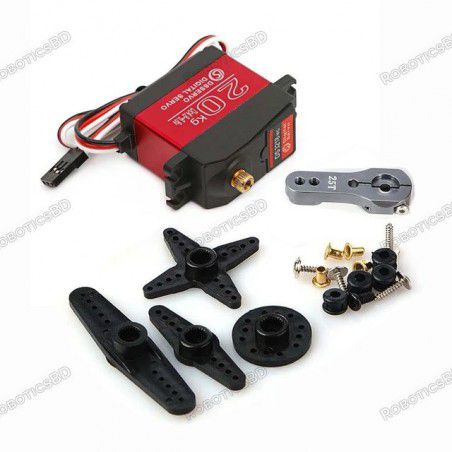

Package Includes:

  • 1x DS3218MG Digital Servo
  • 1x 25T Adjustable Metal Servo Arm

Experience high torque, precision, and reliability with the DS3218MG 20KG High Voltage Digital Servo. Ideal for hobbyists, researchers, and professionals seeking advanced servo control in their projects.
