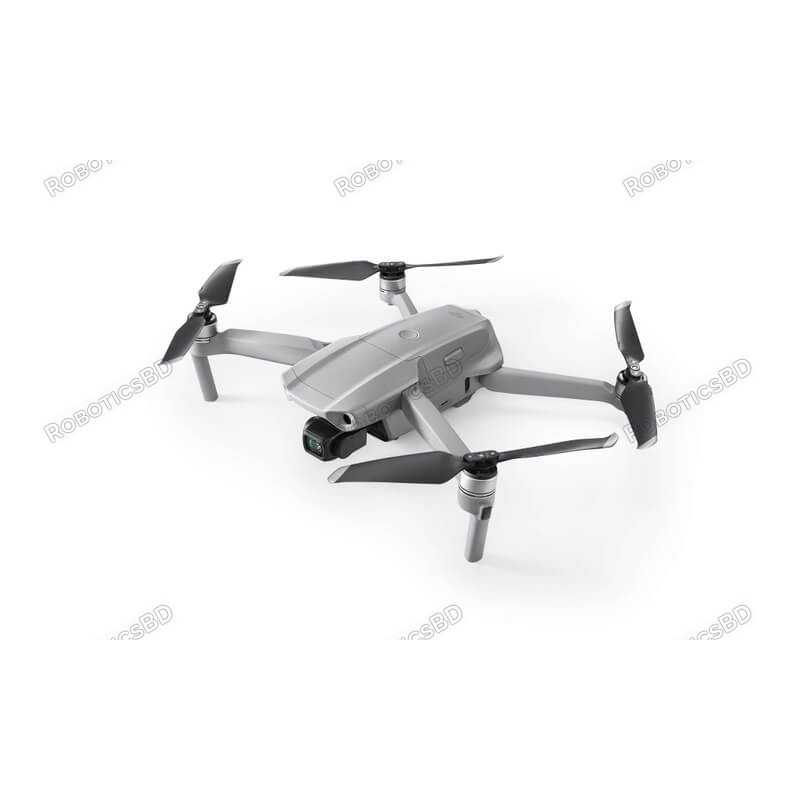

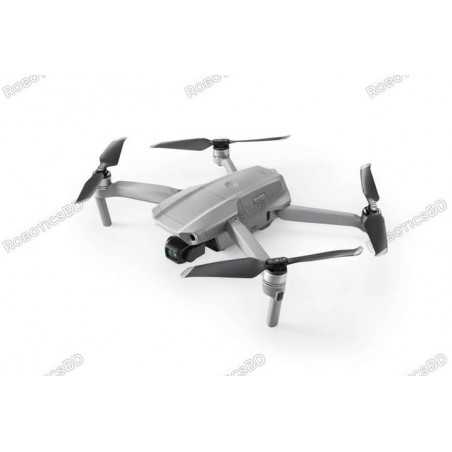

A midrange drone with flagship features, the DJI Mavic Air 2 combines a foldable and portable frame, high-end camera system, and a host of accessories to get you flying quickly. The 3-axis gimbal sports a 1/2" CMOS sensor capable of capturing 8K Hyperlapse time-lapse shots, 4K60 video, 240 fps slow-motion 1080p video, and up to 48MP stills. In addition, photos, panoramas, and video can be captured in HDR for more dynamic results. All your footage can be saved to 8GB of internal storage and on optional SD cards up to 256GB in size. RoboticsBD
FocusTrack
- ActiveTrack 3.0: Follows a target while avoiding obstacles and works to reidentify targets if lost, such as when going behind a tree
- Spotlight 2.0: Fly freely while locking the camera on a subject; just tap a subject on the remote and fly
- POI 3.0: Creates an automated path to fly around a target while keeping the camera centered; works with flat surfaces and can dynamically track objects such as people, cars, and boats
Hyperlapse Time-Lapse Shots
With a single tap, you can use your Mavic Air 2 to capture stunning time-lapse shots in Hyperlapse mode, processing everything automatically without the need for post-processing. You can even simultaneously save photos in JPEG and raw on a microSD card (not included). Hyperlapse shots can be captured with four distinct modes; simply select the mode and shooting location in the DJI Fly app. RoboticsBD
- Free: Move the Mavic Air 2 where you want with total freedom
- Circle: Lock onto a subject and the Mavic Air 2 will circle it while continuously capturing footage
- Course Lock: This locks the gimbal onto a subject, automatically turning to keep it in the frame as you fly towards and past the subject
- WayPoint: Set a specific, savable flight path (up to 5 points) in 3D space for a single time-lapse, or for multiple shots at different times to edit together later
SmartPhoto
Integrated scene recognition works with DJI's HyperLight and HDR technologies to adjust the camera's parameters and deliver optimal results. Scene recognition can detect five different categories: sunset, skies, grass, snow, and trees.
QuickShots
Capture cinematic video clips with just a few taps using predefined flight pattern modes. The Mavic Air 2 will fly a complicated aerial route and you can add music, effects, and filters using Story templates. The resulting footage can be directly shared onto various social media platforms. QuickShot modes include:
- Dronie: Locks onto a subject and flies away while filming
- Circle: Locks onto a subject and flies around it from a set distance
- Helix: Locks onto a subject and flies away and above it in a unique pattern
- Rocket: Locks onto a subject and flies above it while continuously gaining altitude
- Boomerang: Locks onto a subject and flies away from it, then back towards it after reaching a certain point, all while continuously circling it
- Asteroid: Locks onto a subject and then rapidly gains altitude
Obstacle Avoidance
Utilizing APAS 3.0 and forward, backward, and downward sensors, the Mavic Air 2 actively avoids obstacles to stay safe while in flight. An auxiliary light on the drone helps improve the sensors' visibility.
AirSense
Stay safe while in flight with AirSense technology. It utilizes an ADS-B receiver and satellite positioning to warn you of other nearby aircraft.
DJI Fly App
Control the Mavic Air 2, adjust settings and functions, and utilize built-in templates to capture stunning videos. It also incorporates technology from the DJI Mimo app to allow you to edit footage.
Remote Controller
The included remote controller works with your existing smartphone to control the Mavic Air 2 and view live footage from the drone. It's constructed with a comfortable and ergonomic grip and provides up to four hours of battery life. Integrated antennas help improve signal performance. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- 48MP Photo | 4K/60fps Video
- 34-Min Max Flight Time
- 10km Video Transmission
- APAS 3.0 Obstacle Avoidance
- FocusTrack
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| Aircraft |
| Weight |
570 g |
| Size |
Folded: 180×97×84 mm (Length×Width×Height)
Unfolded: 183×253×77 mm (Length×Width×Height) |
| Diagonal Distance |
302 mm |
| Max Ascent Speed |
4 m/s (S Mode)
4 m/s (N Mode) |
| Max Descent Speed |
3 m/s (S Mode)
3 m/s (N Mode)
5 m/s (S Mode and N Mode during a sharp descent)
3 m/s (all modes at elevations over 4500 m) |
| Max Service Ceiling Above Sea Level |
5000 m |
| Max Flight Time (without wind) |
34 minutes |
| Max Hover Time (without wind) |
33 minutes |
| Max Flight Distance |
18.5 km |
| Max Horizontal Flight Speed |
19 m/s (S Mode)
12 m/s (N Mode)
5 m/s (T Mode) |
| Max Wind Resistance |
8.5-10.5 m/s (Level 5) |
| Max Tilt Angle |
35° (S Mode)
20° (N Mode)
35° (N Mode under strong wind) |
| Max Angular Velocity |
250°/s (S Mode)
250°/s (N Mode) |
| Operating Temperature Range |
-10° to 40°C (14° to 104°F) |
| Operating Frequency |
2.400-2.4835 GHz
5.725-5.850 GHz |
| Transmitter Power (EIRP) |
2.400-2.4835 GHz:
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm
5.725-5.850 GHz:
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm |
| Hovering Accuracy Range |
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GPS positioning)
Horizontal:
±0.1 m (with vision positioning)
±1.5 m (with GPS positioning) |
| Propellers |
Quick release, low noise, folding |
| Satellite Systems |
GPS+GLONASS |
| Compass |
Single Compass |
| IMU |
Single IMU |
| Internal Storage |
8 GB |
| Battery |
| Capacity |
3500 mAh |
| Voltage |
11.55 V |
| Charging Voltage Limit |
13.2 V |
| Battery Type |
LiPo 3S |
| Energy |
40.42 Wh |
| Weight |
198 g |
| Charging Temperature |
5° to 40°C (41° to 104°F) |
| Max Charging Power |
38 W |
| Camera |
| Sensor |
1/2" CMOS |
| Effective Pixels: |
12 MP and 48 MP |
| Lens |
FOV: 84° |
| Equivalent Focal Length: |
24 mm |
| Aperture: |
f/2.8 |
| Focus Range: |
1 m to ∞ |
| ISO |
Video:
100-6400
Photo (12 MP):
100-3200 (Auto)
100-6400 (Manual)
Photo (48 MP):
100-1600 (Auto)
100-3200 (Manual) |
| Max Photo Resolution |
48 MP 8000×6000 pixel |
| Photo Modes |
Single: 12 MP and 48 MP
Burst: 12 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 12MP, 3/5 Frames at 0.7EV Bias
Timed: 12 MP 2/3/5/7/10/15/20/30/60 seconds
SmartPhoto: Scene Recognition, HyperLight, and HDR
HDR Panorama[1]:
Vertical (3×1): 3328×8000 pixels (Width×Height)
Wide-angle (3×3): 8000×6144 pixels (Width×Height)
180° Panorama (3×7): 8192×3500 pixels (Width×Height)
Sphere (3×8+1): 8192×4096 pixels (Width×Height) |
| Photo Formats |
JPEG/DNG (RAW) |
| Video Resolution and Frame Rates |
4K Ultra HD: 3840×2160 24/25/30/48/50/60 fps
2.7K: 2688×1512 24/25/30/48/50/60 fps
FHD: 1920×1080 24/25/30/48/50/60/120/240 fps
4K Ultra HD HDR: 3840×2160 24/25/30 fps
2.7K HDR: 2688×1512 24/25/30 fps
FHD HDR: 1920×1080 24/25/30 fps |
| Color Profiles |
D-Cinelike, Normal |
| Video Formats |
MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC) |
| Max Bitrate |
120 Mbps |
| Supported SD Cards |
Supports a microSD with capacity of up to 256 GB |
| Supported File Systems |
FAT32 and exFAT |
| Zoom |
Available |
| Gimbal |
| Stabilization |
3-axis (tilt, roll, pan) |
| Mechanical Range |
Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -100° to 100° |
| Controllable Range |
Tilt: -90° to 0° (Default)
-90° to 24° (Extended) |
| Max Controllable Speed (tilt) |
100°/s |
| Angular Vibration Range |
±0.01° |
| Charger |
| Charging Input |
100-240 V, 50/60 Hz, 1.3 A |
| Charging Output |
Charging Port: 13.2 V⎓2.82 A USB Port: 5 V⎓2 A |
| Voltage |
13.2 V |
| Rated Power |
38 W |
| General Specs |
| Weight: |
570 grams |
| Max video resolution: |
4K/60 fps |
| Camera: |
1/2 inch, 12MP |
| Flight time: |
34 minutes |
| Max Flight Distance |
18.5 km |
| CAAB Registration: |
Required |
| Shipment Weight |
1.95 kg |
| Shipment Dimensions |
20 × 14 × 13.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Product Page
- Civil Aviation Permission Form
- Civil Aviation Permission Form
Package Includes:
1 x DJI Mavic Air 2
