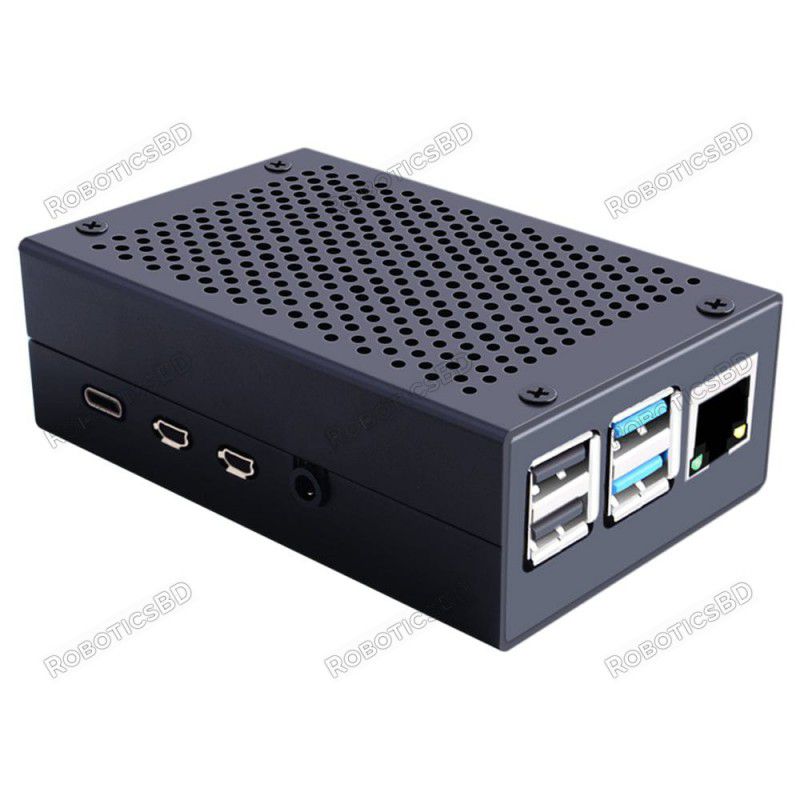

This is an aluminum alloy metal case with onboard cooling fan perfect for Raspberry Pi 4 model B ONLY, all ports and slots of the aluminum case can match with Raspberry Pi 4 perfectly, including the USB-C Power Supply port, Micro HDMI Ports, GPIO Cale Interface... Super cooling system: hundreds cooling holes with cooling fan, almost no weakness for the WLAN or Bluetooth signal. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: the raspberry pi 4 board is not included in the packing list
Assembly of your heatsink should be quick and easy. First and foremost, make sure your Raspberry Pi 4 is powered off and unplugged.
Next, take a thermal thermal pad, peel off the protective covers and attach it to the CPU of your Raspberry Pi. If you would like, you can attach thermal pads to the DDR4 RAM chip, however, it isn’t a necessity. RoboticsBD
Finally, you will need to position the top half of the case with the correct orientation, while simultaneously positioning the bottom half underneath your Pi. Grab your hex screws and trusty hex key, secure your new Pi heatsink case in place. If after assembly there is a visible gap between the CPU and the heatsink, disassemble and use an additional thermal pad.
Connect the fan wire as shown below (the orientation of red & black will control which direction the fan blows. They can be reversed).
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Metal Aluminum Case – Black/Silver
1 x Fan with Connector
1 x Screw Set.
