3 Pin Pitch 5.0mm Straight Pin Screw PCB Terminal Block Connector Robotics Bangladesh
  • 3 Pin Pitch 5.0mm Straight Pin Screw PCB Terminal Block Connector Robotics Bangladesh

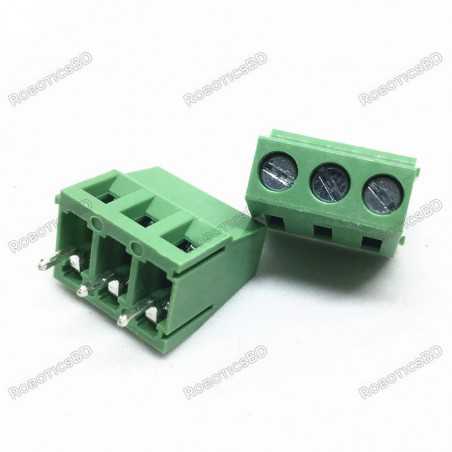

3 Pin Pitch 5.0mm Straight Pin Screw PCB Terminal Block Connector

RBD-2025

  • 5.08mm pitch.
  • Pin header: Tin plated brass.
  • Contacts: Nickel plated brass.
  • Strong, compact, lightweight.
  • Heat resistant.
BDT 14.00
BDT 14.00 BDT 14.00 BDT 14.00 BDT 14.00
Tax included Tax excluded Tax included Tax excluded
BDT 14.00 Tax excluded
BDT 14.00 Tax included
BDT 0.00 Tax
BDT 14.00 Tax excluded
BDT 0.00 Tax
BDT 14.00 Tax included
Quantity
In-Stock
178 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts. RoboticsBD

The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant(UL94-0) and has good insulation properties. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Pin header: Tin plated brass.
  2. Contacts: Nickel-plated brass.
  3. Strong, compact, lightweight.
  4. Heat resistant.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Connector PCB Terminal Block
Termination Screw
No. of Contacts 3
Allowed Wire Size (AWG) 24 ~ 16
Voltage(V) 220V AC
Operating Current (A) 10
Mounting Type Through Hole
Pin Spacing (mm) 5.08
Material Metal and plastic
Length (mm) 15
Width (mm) 10.3
Height (mm) 14.12
Weight (gm) 1 (approx.) (each)
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x 3 Pin Pitch 5.0mm Straight Pin Screw PCB Terminal Block Connector.
