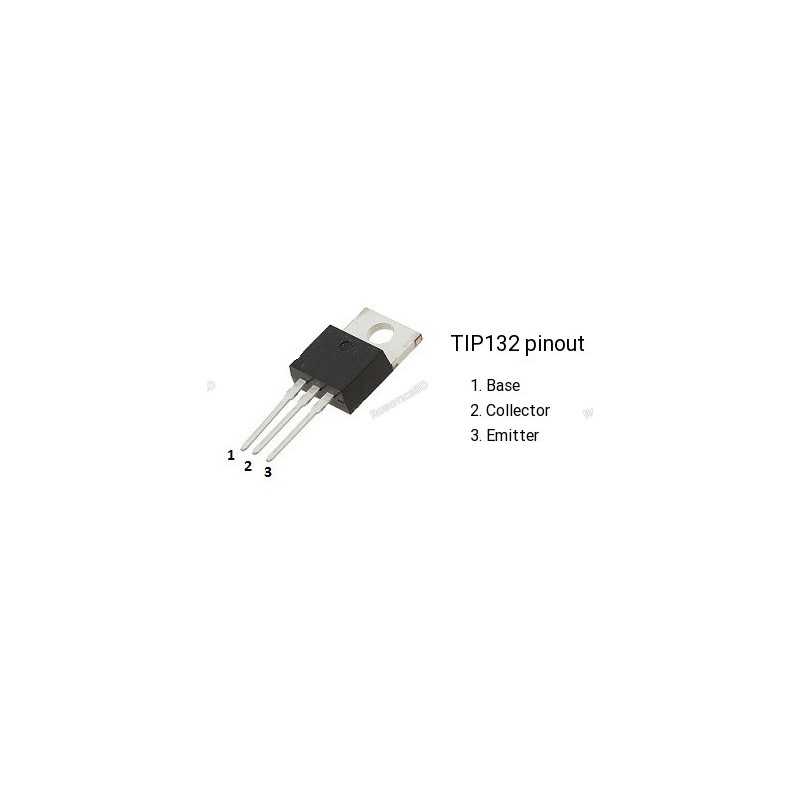

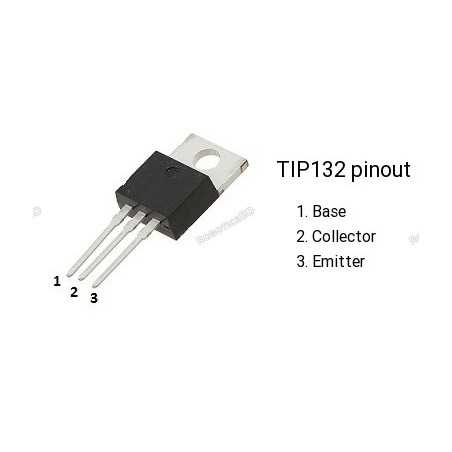

TIP132 NPN Transistor Robotics Bangladesh
  • TIP132 NPN Transistor Robotics Bangladesh
  • TIP132 NPN Transistor Robotics Bangladesh

TIP132 NPN Transistor

RBD-1479

  • TIP132 bipolar transistor
  • Type - NPN
BDT 35.00
BDT 35.00 BDT 35.00 BDT 35.00 BDT 35.00
Tax included Tax excluded Tax included Tax excluded
BDT 35.00 Tax excluded
BDT 35.00 Tax included
BDT 0.00 Tax
BDT 35.00 Tax excluded
BDT 0.00 Tax
BDT 35.00 Tax included
Quantity
In-Stock
31 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The TIP132 is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration, mounted in Jedec TO-220 plastic package. It is intented for use in power linear and switching applications.

The complementary PNP type is TIP137 . Also TIP135 is a PNP type. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

    1. LINEAR EQUIPMENT
    2. SWITCHING INDUSTRIAL EQUIPMENT

Features:

  1. Type - NPN
  2. Collector-Emitter Voltage: 100 V
  3. Collector-Base Voltage: 100 V
  4. Emitter-Base Voltage: 5 V
  5. Collector Current: 8 A
  6. Collector Dissipation - 70 W
  7. DC Current Gain (hfe) - 1000 to 15000
  8. Operating and Storage Junction Temperature Range -65 to +150 °C

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Collector−Base Voltage VCBO 100V
Collector−Emitter Voltage VCEO 100V
Emitter-Base Voltage VEBO  5V
Product Type TIP132 TIP135 TIP137 COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x TIP132 NPN Transistor.
