APPLICABLE- Used for modification, remote control boat, boat models, fishing gear boats, pull net boats, lifeboats, underwater robots, etc.
DURABILITY- With fine workmanship, it has compact structure , eco-friendly and durable for long term use. RoboticsBD
HIGH PERFORMANCE- A specially designed propeller and nozzle provides efficient, powerful thrust .The underwater thruster is high performance ensures better work efficiency. RoboticsBD
PLEASE NOTE- CW stands for Clock-wise, CCW stands for Counter-Clock-wise. If you need to use ONLY ONE propeller, please choose CW; Need to install 2 propellers, please use a pair of propellers (CW&CCW). Please be sure to know it before purchasing. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Voltage: 12-24V
- Current: 20A
- Power: 30-200W
- Motor KV: 1000KV
- Size: Wire length 250mm ,Diameter 74mm ,Total length 75mm ,Propeller diameter 60mm
- Material: Motor 304 Stainless steel bearing Aluminum alloy ,Shell PLA ,Propeller PC
- 1 pcs CW, 1 pcs CCW
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Weight: |
130g/pc |
| Voltage: |
DC 12V-24V |
| Current: |
20A |
| - KV: |
1000KV |
| - Power: |
30-200W |
| - Wire length: |
250mm |
| - Whole length: |
75mm |
| - Propeller diameter: |
62mm |
| - Hole diameter: |
2.3mm |
| Shipment Weight |
0.340 kg |
| Shipment Dimensions |
14 × 7 × 8 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note:
- In the 12-24V voltage range, the greater the voltage, the greater the power.
- The thrusters must be connected to ESC or brushless motor, can not directly be connected to a battery
- This propeller is semi-submersible (that is, to leave a little of air for the propeller to inhale the mixed water to make a greater thrust). If the propeller is to be placed in deep water, it is recommended to install a 12mm pipe to access the air.
- Wiring diagram is not provided, it is recommended for experienced players to buy.
Package Includes:

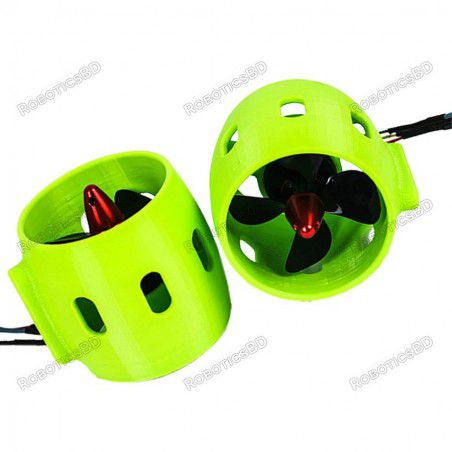

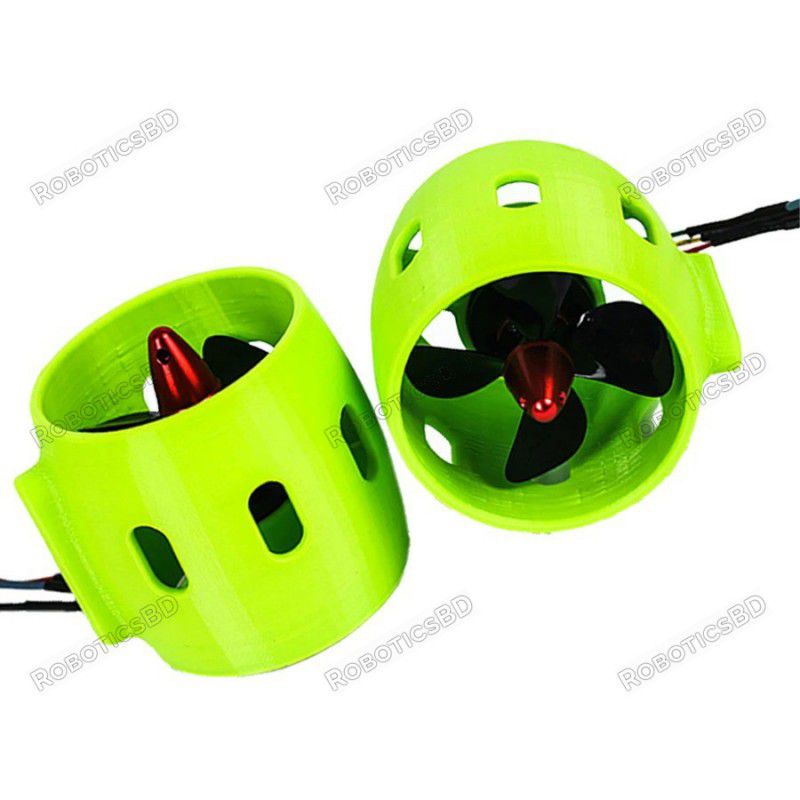

1 x Underwater Thruster Brushless Motor 4 Blade Propeller Propulsion 30-200W
