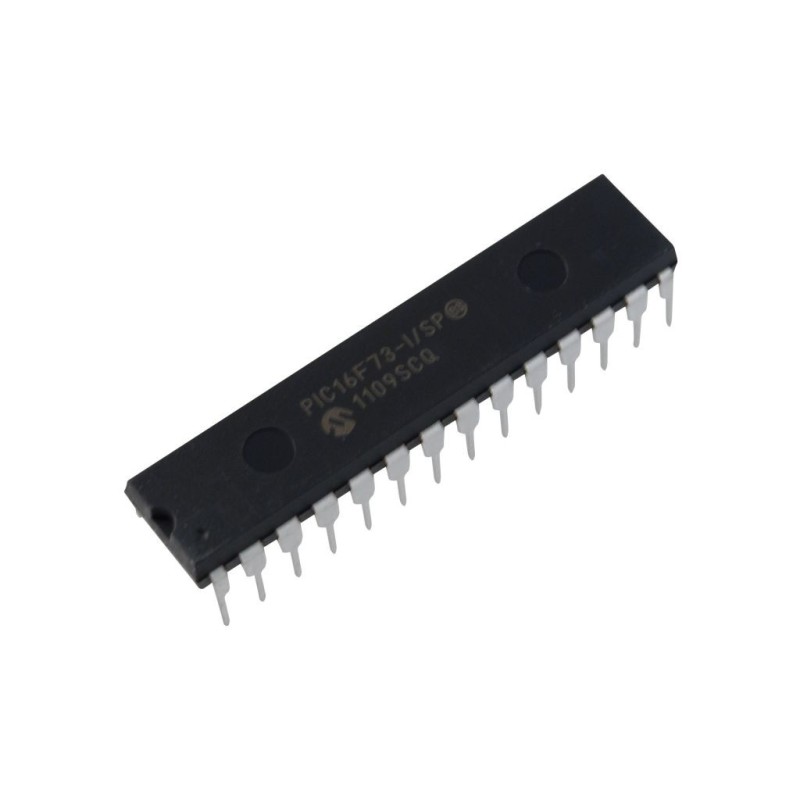

PIC16F73 Microcontroller
- High performance RISC CPU
- Only 35 single word instructions to learn
- All single cycle instructions except for program branches which are two-cycle
Description
This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F73 features 5 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, 2 capture/compare/PWM functions and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Power-on Reset (POR)
- Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
- Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
- Programmable code protection
- Power saving SLEEP mode
- Selectable oscillator options
- In-Circuit Serial Programming (ICSP) via two pins
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Program Memory Type | Flash |
| Program Memory Size (KB) | 7 |
| CPU Speed (MIPS/DMIPS) | 5 |
| Data EEPROM (bytes) | 0 |
| Capture/Compare/PWM (CCP) | 2 |
| Enhanced Capture/Compare/PWM (ECCP) | 0 |
| Max 8 Bit Digital Timers | 2 |
| Number of ADCs | 1 |
| ADC Channels | 5 |
| Max ADC Resolution (bits) | 8 |
| Number of Comparators | 0 |
| Number of USB Modules | 0 |
| Number of CAN Modules | 0 |
| Segment LCD | 0 |
| Ethernet | None |
| Temp. Range Min. | -40 |
| Temp. Range Max. | 125 |
| Operation Voltage Max.(V) | 5.5 |
| Operation Voltage Min.(V) | 2 |
| Pin Count | 28 |
| Low Power | No |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Package Includes:
1 x PIC16F73 Microcontroller.
