    PIC Development Board with Cable PIC16F877

    RBD-1038

    • Reset button.
    • 4M crystal onboard, Using socket, Crystal frequency can be replaced easily at any time
    • 4 independent push buttons, connected to RB0 RB1 RB2 RB3
    • 8 LED's connected to the RD port, J3 is jumpered to enable LED. Remove to disconnect.
    • Standard RS232 communication interface, microcontroller computer communication interface.
    BDT 2,200
    BDT 2,200 BDT 2,200 BDT 2,200 BDT 2,200
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 2,200 Tax excluded
    BDT 2,200 Tax included
    BDT 0 Tax
    BDT 2,200 Tax excluded
    BDT 0 Tax
    BDT 2,200 Tax included
    Quantity
    In-Stock
    8 Items

    21 people have purchased this item
    1 person recently added this item to the cart
    8 items in stock
    Description

    The PIC Development Board with Cable PIC16F877 is a low-cost high-performance PIC programmer. This supports most popular PIC chips, programmed, readout, encryption, use a high-speed USB communication, fast programming. RoboticsBD

    The programming quality is stable and reliable. (speed average PICSTART + 3-5 times) fully automatic programming checksum. This is equipped with 40pin DIP programming Block, direct programming of 8pin – 40pin DIP chip. 8 pin-40 pin chip other than through the onboard the ICSP interface online to download software. RoboticsBD

    Software-compatible with PIC Development Board with Cable PIC16F877 is the Windows98 and Windows2000/NT, Windows XP/windows7/ Windows 8/ Windows 10 operating system. The new device will vary with the PIC escalating. Master chip retains the DIP package with the seat. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Please note a separate programmer will be required to program the microcontroller such as item HCDVBD0002. RoboticsBD

    Features :

    1. Reset button.
    2. 4M crystal onboard, Using socket, Crystal frequency can be replaced easily at any time
    3. 4 independent push buttons, connected to RB0 RB1 RB2 RB3
    4. 8 LED's connected to the RD port, J3 is jumper to enable LED. Remove to disconnect.
    5. Standard RS232 communication interface, microcontroller computer communication interface.
    6. USB power supply interface.
    7. External 5V DC power interface
    8. Power switch. RoboticsBD
    9. ICSP programming interface (K150 PICKIT2 PICKIT3 ICD2 etc.)
    10. VCC GND Pin power expansion interface can use for access or to the 5V power supply.
    11. Microcontroller IO port Pin leads for convenient expansion.
    12. DS18B20 temperature sensor interface
    13. LCD1602 LCD interface
    14. LCD12864 LCD interface

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Board Dimensions(mm)(LxWxH)82x54x14
    USB Cable Length1 Meter
    ICSP Cable Length30 cm
    Pitch (mm)4
    Shipment Weight0.13 kg
    Shipment Dimensions10 × 5 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation :

    1. Great Cow Basic Development Environment Quick Start Guide
    2. PIC - PIC Development Board + PIC16F877A (HCDVBD0003)

    Package Includes :

    1 x PIC development board
    1 x USB cable.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-1038
    8 Items

    Specific References

    EAN13
    1038
    Comments (0)
    Grade
    No customer reviews for the moment.
    16 other products in the same category:

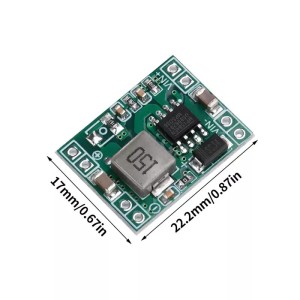

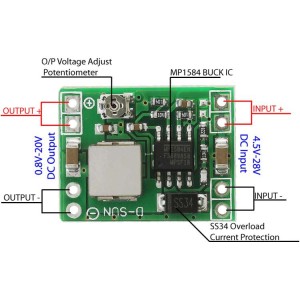

    Mini MP1584EN DC-DC BUCK Adjustable Step Down Module Robotics Bangladesh Mini MP1584EN DC-DC BUCK Adjustable Step Down Module Robotics Bangladesh

    Reference: RBD-1769

    Mini MP1584EN DC-DC BUCK 5V Step Down Module

    (0)
    Input Voltage: 4.5V – 18V Output Voltage: 5V Output Current:  1.8A (typical), 3.0A (max). Ceramic Capacitor Stable Internal Soft-Start Internally Set Current Limit without a Current Sensing Resistor
    BDT 95
    BDT 95 tax incl.
    BDT 95 tax excl.
    BDT 95 tax excl.
    BDT 95 tax incl.
    BDT 95 tax incl.
    BDT 0 Tax
    BDT 95 tax excl.
    BDT 95 tax excl.
    BDT 0 Tax
    BDT 95 tax incl.
    More Mini MP1584EN DC-DC BUCK 5V Step Down Module
    In-Stock
    In stock: 63
    SIM7600G-H CAT4 4G (LTE) Shield for Arduino Robotics Bangladesh

    Reference: RBD-2999

    Brand: DFRobot

    SIM7600G-H CAT4 4G (LTE) Shield for Arduino

    (0)
    SIM7600G-H CAT4 4G (LTE) Shield with global 2G/3G/4G support for Arduino Offers LTE CAT4 speeds: 150Mbps download, 50Mbps upload Built-in GNSS positioning with GPS, GLONASS, and BeiDou (BD) support Compatible with Arduino UNO, Leonardo, Mega, and standard pinout controllers Supports SMS, voice, data, and multiple network protocols (TCP/IP, HTTP, FTP,...
    BDT 11,900
    BDT 11,900 tax incl.
    BDT 11,900 tax excl.
    BDT 11,900 tax excl.
    BDT 11,900 tax incl.
    BDT 11,900 tax incl.
    BDT 0 Tax
    BDT 11,900 tax excl.
    BDT 11,900 tax excl.
    BDT 0 Tax
    BDT 11,900 tax incl.
    More SIM7600G-H CAT4 4G (LTE) Shield for Arduino
    Last items in stock
    In stock: 2
    Sold-out Raspberry Pi 3 Robot Shield Expansion Board Pioneer 600 Robotics Bangladesh Raspberry Pi 3 Robot Shield Expansion Board Pioneer 600 Robotics Bangladesh

    Reference: RBD-0270

    Raspberry Pi 3 Robot Shield Expansion Board Pioneer 600

    (0)
    AD/DA IO interface : screw terminal 1-WIRE interface : for connecting 1-WIRE devices like DS18B20 Sensor interface : for connecting various sensors 0.96inch OLED : SSD1306 driver, 128×64 resolution, SPI interface Buzzer CP2102 : USB TO UART converter PCF8591 : 8-bit AD/DA converter, I2C interface
    BDT 3,400
    BDT 3,400 tax incl.
    BDT 3,400 tax excl.
    BDT 3,400 tax excl.
    BDT 3,400 tax incl.
    BDT 3,400 tax incl.
    BDT 0 Tax
    BDT 3,400 tax excl.
    BDT 3,400 tax excl.
    BDT 0 Tax
    BDT 3,400 tax incl.
    More Raspberry Pi 3 Robot Shield Expansion Board Pioneer 600
    Sold-out
    In stock: 0
    MP2315 Mini Adjustable DC-DC Step-Down Module Robotics Bangladesh

    Reference: RBD-2447

    MP2315 Mini Adjustable DC-DC Step-Down Module

    (0)
    Ultra-compact MP2315 DC-DC buck converter module for efficient voltage step-down Wide input range: 4.5V – 24V, adjustable output: 0.8V – 22V Provides 1.5A continuous current with peaks up to 2A Excellent load and voltage regulation for stable performance Output enable pin compatible with 3.3V & 5V logic systems Optional fixed voltage output via solder...
    BDT 80
    BDT 80 tax incl.
    BDT 80 tax excl.
    BDT 80 tax excl.
    BDT 80 tax incl.
    BDT 80 tax incl.
    BDT 0 Tax
    BDT 80 tax excl.
    BDT 80 tax excl.
    BDT 0 Tax
    BDT 80 tax incl.
    More MP2315 Mini Adjustable DC-DC Step-Down Module
    In-Stock
    In stock: 35

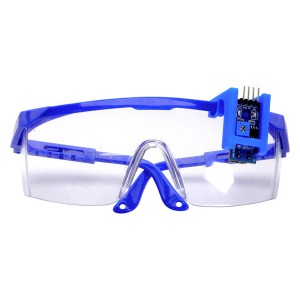

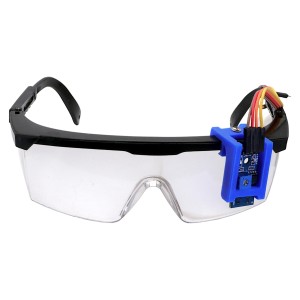

    Eye Blink Detection Analog & Digital Sensor with Goggles High Quality Robotics Bangladesh Eye Blink Detection Analog & Digital Sensor with Goggles High Quality Robotics Bangladesh

    Reference: RBD-2096

    Eye Blink Detection Analog & Digital Sensor with Goggles High Quality

    (0)
    The Eye Blink Detection Analog & Digital Sensor with Goggles is a powerful tool designed for Arduino enthusiasts, developers, and researchers interested in human-computer interaction and biometric sensing. Why is an analog eyeblink sensor better than a digital eyeblink sensor? Currently, most eye blink sensors on the market are digital. they can only...
    BDT 590
    BDT 590 tax incl.
    BDT 590 tax excl.
    BDT 590 tax excl.
    BDT 590 tax incl.
    BDT 590 tax incl.
    BDT 0 Tax
    BDT 590 tax excl.
    BDT 590 tax excl.
    BDT 0 Tax
    BDT 590 tax incl.
    More Eye Blink Detection Analog & Digital Sensor with Goggles High Quality
    In-Stock
    In stock: 13
    Infrared IR Sensor Receiver Module for Arduino Robotics Bangladesh Infrared IR Sensor Receiver Module for Arduino Robotics Bangladesh

    Reference: RBD-2082

    Infrared IR Sensor Receiver Module for Arduino

    (0)
    Dimension: 2.5 x 1.5 x 1.5 cm. Receiving angle: 90 °. Working voltage: 2.7 ~ 5.5V. Frequency: 37.9KHz Receiving range: 18m. Weight: 4 gm.
    BDT 59
    BDT 59 tax incl.
    BDT 59 tax excl.
    BDT 59 tax excl.
    BDT 59 tax incl.
    BDT 59 tax incl.
    BDT 0 Tax
    BDT 59 tax excl.
    BDT 59 tax excl.
    BDT 0 Tax
    BDT 59 tax incl.
    More Infrared IR Sensor Receiver Module for Arduino
    In-Stock
    In stock: 33
    Impact Switch Collision Switch Sensor Module Robotics Bangladesh

    Reference: RBD-2833

    Impact Switch Collision Switch Sensor Module

    (0)
    Compact impact/collision detection sensor module for Arduino and robotics Converts mechanical impact into an electrical signal output Lightweight design, only 3g with 25 × 14 × 6 mm dimensions Simple installation with M3 mounting hole for small cars and robotics projects Low-level output trigger when collision/impact occurs Ideal for DIY robotics,...
    BDT 90
    BDT 90 tax incl.
    BDT 90 tax excl.
    BDT 90 tax excl.
    BDT 90 tax incl.
    BDT 90 tax incl.
    BDT 0 Tax
    BDT 90 tax excl.
    BDT 90 tax excl.
    BDT 0 Tax
    BDT 90 tax incl.
    More Impact Switch Collision Switch Sensor Module
    In-Stock
    In stock: 27
    2.42 inch OLED Screen LCD Display Module 128x64 IIC I2C 4Pin White Robotics Bangladesh 2.42 inch OLED Screen LCD Display Module 128x64 IIC I2C 4Pin White Robotics Bangladesh

    Reference: RBD-2922

    2.42 inch OLED Screen LCD Display Module 128x64 IIC I2C 4Pin White

    (0)
    2.42-inch OLED display module with sharp 128×64 resolution Powered by SSD1309 driver IC, communicates via I2C (4-pin) interface White monochrome OLED panel with 0.4 × 0.4 mm pixel size Ultra-narrow bezel design with compact 55.01 × 27.49 mm display area Compatible with Arduino, Raspberry Pi, STM32, ESP32, Jetson Nano Onboard voltage translator ensures...
    BDT 1,690
    BDT 1,690 tax incl.
    BDT 1,690 tax excl.
    BDT 1,690 tax excl.
    BDT 1,690 tax incl.
    BDT 1,690 tax incl.
    BDT 0 Tax
    BDT 1,690 tax excl.
    BDT 1,690 tax excl.
    BDT 0 Tax
    BDT 1,690 tax incl.
    More 2.42 inch OLED Screen LCD Display Module 128x64 IIC I2C 4Pin White
    In-Stock
    In stock: 15
    GPS GSM GPRS SIM808 Module (Arduino Compatible) Robotics Bangladesh GPS GSM GPRS SIM808 Module (Arduino Compatible) Robotics Bangladesh

    Reference: RBD-0579

    GPS GSM GPRS SIM808 Module (Arduino Compatible)

    (0)
    Quad-band 850/900/1800/1900MHz GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load) GPRS mobile station class B Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands) Supports charging control for Li-Ion battery Supports Real-Time Clock Integrated GPS/CNSS and supports A-GPS Low power consumption, 10mA in sleep...
    BDT 3,450
    BDT 3,450 tax incl.
    BDT 3,450 tax excl.
    BDT 3,450 tax excl.
    BDT 3,450 tax incl.
    BDT 3,450 tax incl.
    BDT 0 Tax
    BDT 3,450 tax excl.
    BDT 3,450 tax excl.
    BDT 0 Tax
    BDT 3,450 tax incl.
    More GPS GSM GPRS SIM808 Module (Arduino Compatible)
    In-Stock
    In stock: 35
    1.8" inch TFT LCD Display module ST7735S 128x160 Robotics Bangladesh 1.8" inch TFT LCD Display module ST7735S 128x160 Robotics Bangladesh

    Reference: RBD-0699

    1.8" inch TFT LCD Display module ST7735S 128x160

    (0)
    Display Size: 1.8″ Driver IC: ST7735 Input Voltage (V): 3.3 to 5 Pixel Resolution: 128 x 160 Interface Type: SPI
    BDT 590
    BDT 590 tax incl.
    BDT 590 tax excl.
    BDT 590 tax excl.
    BDT 590 tax incl.
    BDT 590 tax incl.
    BDT 0 Tax
    BDT 590 tax excl.
    BDT 590 tax excl.
    BDT 0 Tax
    BDT 590 tax incl.
    More 1.8" inch TFT LCD Display module ST7735S 128x160
    In-Stock
    In stock: 28

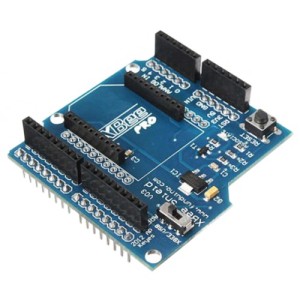

    Xbee Shield For Arduino V03 Robotics Bangladesh Xbee Shield For Arduino V03 Robotics Bangladesh
