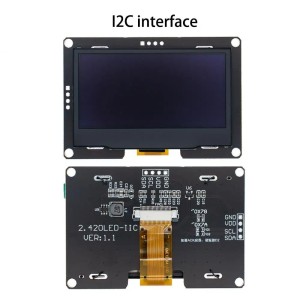

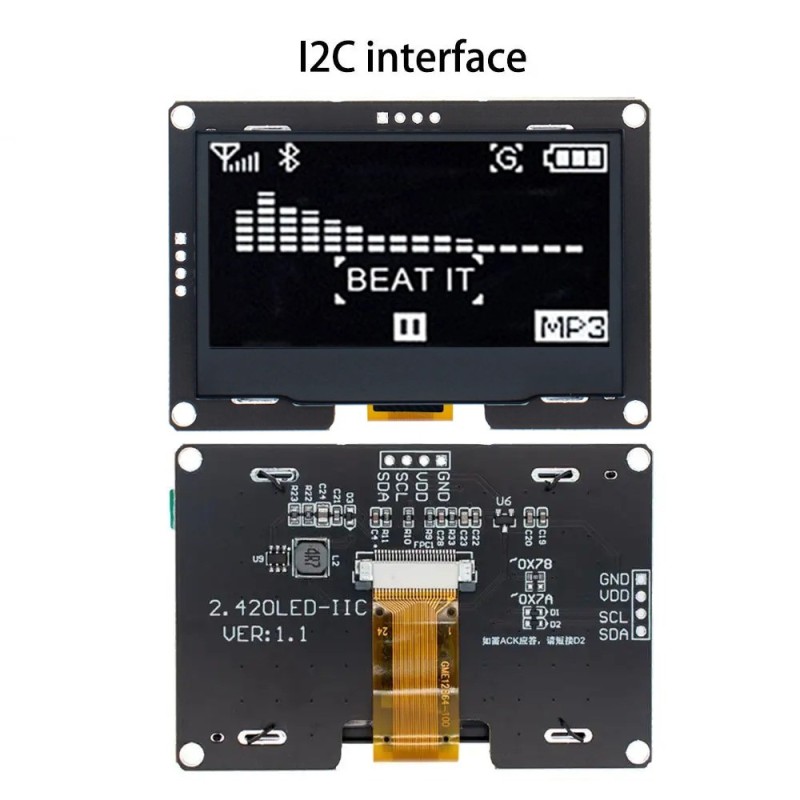

2.42 inch OLED Screen LCD Display Module 128x64 IIC I2C 4Pin White

Reference RBD-2922

2.42-inch OLED display module with sharp 128×64 resolution
Powered by SSD1309 driver IC, communicates via I2C (4-pin) interface
White monochrome OLED panel with 0.4 × 0.4 mm pixel size
Ultra-narrow bezel design with compact 55.01 × 27.49 mm display area
Compatible with Arduino, Raspberry Pi, STM32, ESP32, Jetson Nano
Onboard voltage translator ensures stable operation at 3.3V

Note: The component, colour & shape of the module may vary depending on our stock rotation.

Description
Product Details

Description

The 2.42-inch OLED Screen LCD Display Module (128×64, SSD1309, I2C) provides sharp and clear visuals in a compact form factor. Featuring a white monochrome OLED panel with 128×64 resolution, it offers excellent readability for text and graphics. With I2C (4-pin) communication and SSD1309 driver support, it integrates seamlessly with platforms such as Arduino, Raspberry Pi, STM32, ESP32, and Jetson Nano. Its ultra-narrow bezel design and 3.3V operation make it ideal for IoT dashboards, portable devices, embedded electronics, and DIY projects requiring reliable and efficient displays. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High-Resolution Display – 128×64 pixels for crisp, detailed visuals.
White OLED Panel – Bright and clear monochrome output.
I2C Interface – Simple 4-pin communication with wide microcontroller support.
SSD1309 Driver IC – Stable performance and development resource availability.
Ultra-Narrow Bezel – Sleek and compact for embedded projects.
Cross-Platform Compatible – Works with Arduino, Raspberry Pi, STM32, ESP32, and Jetson Nano.
Low-Power Operation – Runs on 3.3V with onboard voltage translator.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

IoT Dashboards – Display sensor or system data in real time.
Portable Electronics – Ideal for handheld and battery-powered devices.
Embedded Systems – Adds graphical output to microcontroller projects.
DIY Electronics – Useful for hobbyists and makers experimenting with visual interfaces.
Educational Tools – Demonstrates graphical programming concepts with microcontrollers.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Product Type	OLED Display Module
Screen Size	2.42 inch
Resolution	128 × 64 pixels
Pixel Size	0.4 × 0.4 mm
Display Color	White Monochrome
Driver IC	SSD1309
Communication Interface	I2C (4-pin)
Operating Voltage	3.3V
Display Area	55.01 × 27.49 mm
Bezel	Ultra-narrow
Compatibility	Arduino, Raspberry Pi, STM32, ESP32, Jetson Nano
Shipment Weight	0.0355 kg
Shipment Dimensions	8 × 6 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Useful Link:

https://www.waveshare.com/wiki/2.42inch_OLED_Module

Package Includes:

1 x 2.42 inch OLED Screen LCD Display Module 128x64 IIC I2C 4Pin White
