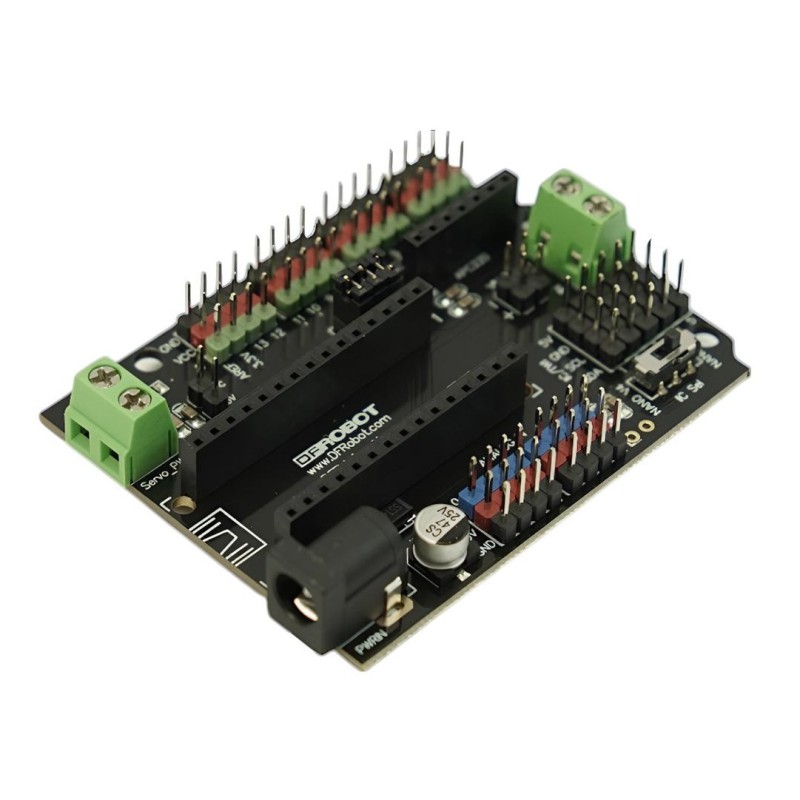

    Gravity: Nano I/O Shield for Arduino Nano

    RBD-3623
    DFRobot

    The Arduino Nano I/O Sensor Shield is an expansion board compatible with various microcontrollers, offering multiple power input options and easy sensor connections.

    BDT 1,290
    BDT 1,290 BDT 1,290 BDT 1,290 BDT 1,290
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,290 Tax excluded
    BDT 1,290 Tax included
    BDT 0 Tax
    BDT 1,290 Tax excluded
    BDT 0 Tax
    BDT 1,290 Tax included
    Quantity
    7 Items

    1 person has purchased this item
    7 items in stock
    Description

    Introduction

    The Arduino Nano I/O  Sensor Shield acts as an expansion board for the Arduino Nano and DFRduino Nano microcontrollers. There are several different options for power input. The form factor of the Nano I/O Shield board is the same as the Arduino UNO/arduino Leonardo. In addition, the sensor shield adopts Gravity interface that each pinout includes 5V and GND pins for easy connection to Gravity sensors or servos. To the best compatibility, the shield supports jumper wires for rapid prototyping.

    This unit comes fully assembled. The board also has a space specifically for the DFRobot bluetooth module and ACP220. Several I2C pins are also expanded.

    The arduino nano shield has independent power supply to provide extra power for servo and other sensors.


    V1.1 Update：Add a I2C interface switch, now it is compatible with Arduino Nano, DFRduino Nano V4 and Bluno Nano

    Specification

    • Power supply: +5 V
    • Size: 69x54mm (2.7 x 2.1 in)

    Documents

    Shipping List

    • Nano I/O Shield for Arduino Nano    x1
