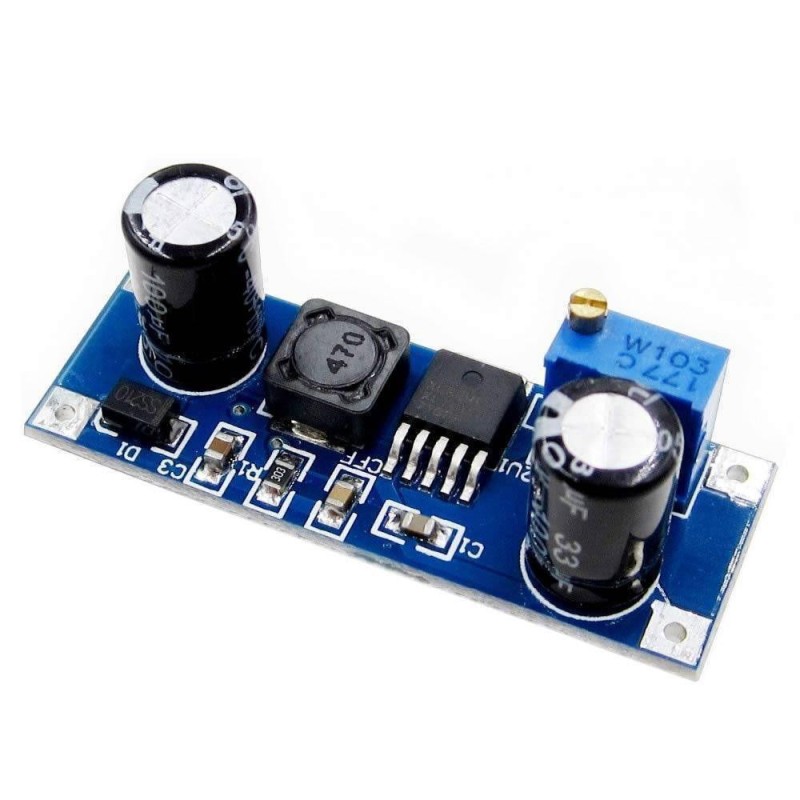

The XL7015 5V-80V DC-DC Step-down Converter Module is a highly efficient buck regulator designed for wide input voltage applications. Supporting an input range of 5V to 80V, it can step down voltage to an adjustable 5V–20V output at up to 0.8A current, making it suitable for projects requiring stable low-voltage power. With excellent load and line regulation, low ripple output, and robust protection features including thermal shutdown, overcurrent, and short-circuit protection, this module outperforms LM2596-based alternatives. Its compact size and reliability make it an excellent choice for electric vehicle controllers, battery systems, and DIY electronics requiring regulated power supply. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Wide input voltage range: 5V–80V for versatile use.
Adjustable output: 5V–20V to match multiple device requirements.
Maximum output current of 0.8A with efficiency optimization.
Built-in protections: thermal shutdown, overcurrent, and short-circuit safety.
Low ripple and excellent regulation for clean, stable output.
Compact board size for easy integration in projects.
Higher performance compared to LM2596 modules under high-voltage input.
Electric vehicle controllers requiring stable low-voltage supplies.
Battery-powered devices and battery management systems.
DIY electronics projects needing efficient DC power regulation.
Robotics and automation projects using variable input power.
Replacement or upgrade for LM2596 modules in high-voltage applications.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| Input Voltage Range | 5V – 80V |
| Output Voltage Range | 5V – 20V (adjustable) |
| Max Output Current | 0.8A |
| Recommended Output Power | < 7W |
| Voltage Drop (Min) | 1V |
| Protection Features | Thermal shutdown, short-circuit, overcurrent |
| Efficiency | High efficiency with low ripple |
| Load Regulation | Excellent |
| Line Regulation | Excellent |
| Module Dimensions | 16mm × 44mm |
| Board Size (Approx) | 5 × 3 × 3 cm |
| Shipment Weight | 0.0108 kg |
| Shipment Dimensions | 5 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x XL7015 5V-80V DC-DC 0.8A Dc converter Step-down Module Wide Voltage Input LM2596
