S9013 Transistor(pack of 3)

Reference RBD-1471

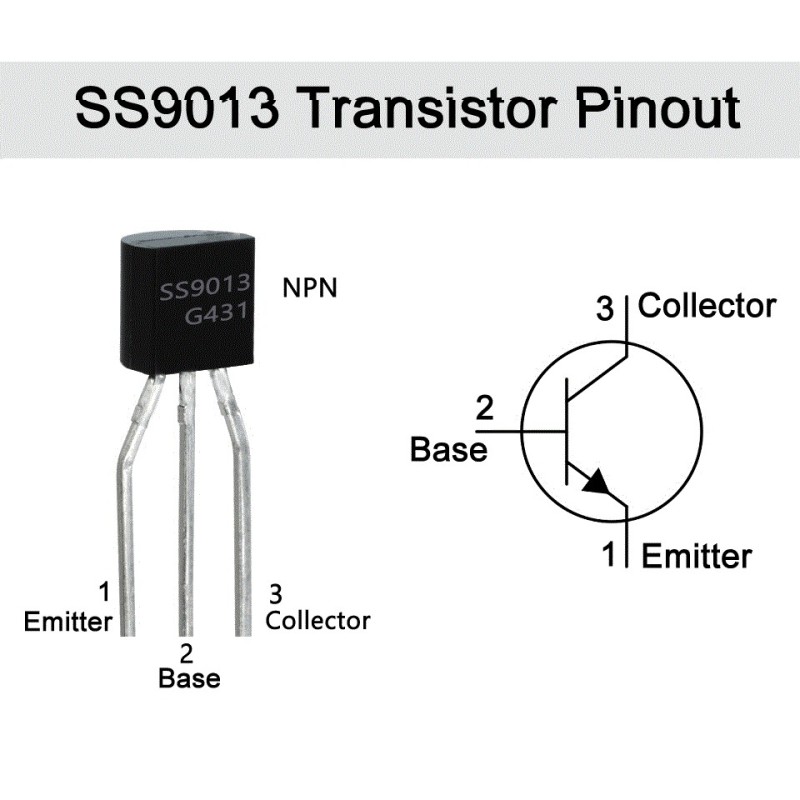

S9013 Transistor
Transistor Type: NPN

Description
Product Details

Description

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

General purpose application.
Switching application. RoboticsBD

Features:

Transistor Type: NPN Max Collector Current(IC): 5A or 500mA
Max Collector-Emitter Voltage (VCE): 20V
Max Collector-Base Voltage (VCB): 40V
Max Emitter-Base Voltage (VBE): 5V
Max Collector Dissipation (Pc): 625 Milliwatt
Max Transition Frequency (fT): 150 MHz
Minimum & Maximum DC Current Gain (hFE): 64 To 202
Max Storage & Operating temperature Should be: -55 to +150 Centigrade
Excellent hFE linearity.
Complementary pair with STS9012

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Collector-Emitter Voltage (VCE):	20V
Collector-Base Voltage (VCB):	40V
Emitter-Base Voltage (VBE):	5V
Product Type	NPN Silicon Transistor
Operating Temperature Range (°C)	–55° C to +125° C
Mounting Type	Through Hole
Shipment Weight	0.005 kg
Shipment Dimensions	3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Datasheet

Package Includes:

3 x S9013 Transistor.
