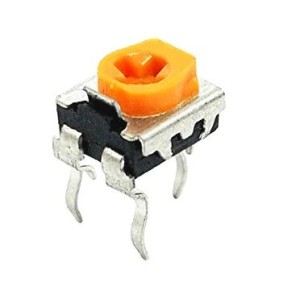

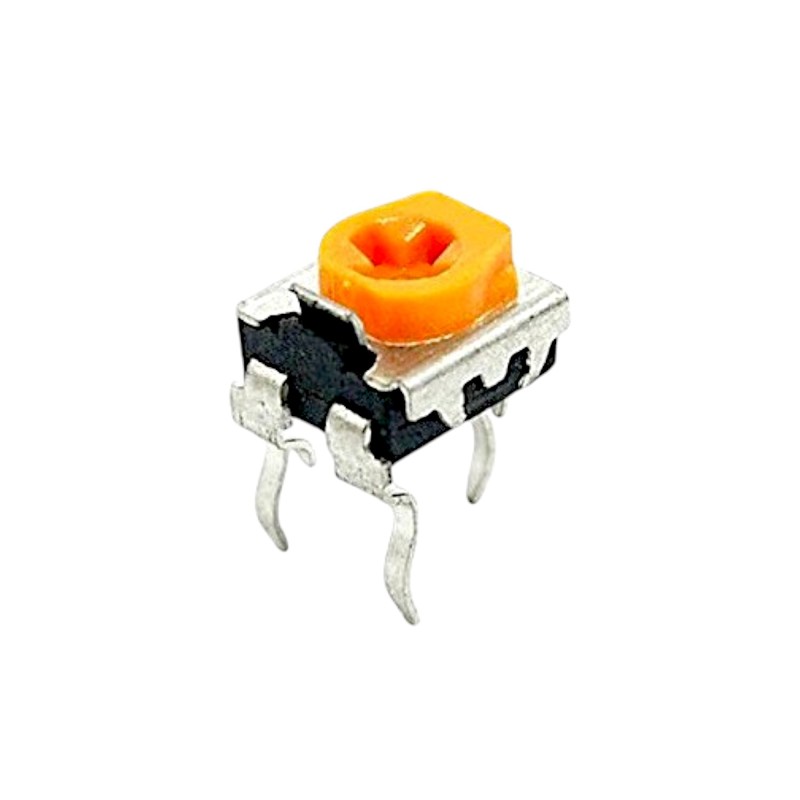

Potentiometer 5k ohms Single-Turn Trimmer 502

Reference RBD-2276

5000-ohm single-turn trimmer potentiometer with smooth adjustment
Breadboard-friendly design with secure, long leads
±5% tolerance for reliable resistance range from 9.5 to 5000 ohms
Ideal for precision tuning in electronic circuits
Compact, durable plastic package with top-mounted screwdriver adjustment

This potentiometer can be of Blue and White packaging or Black and Yellow package.

Description
Product Details

Description

The 5000-ohm Single-Turn Trimmer Potentiometer (502) offers smooth, precise resistance adjustment for various electronic applications. Designed with excellent linearity and secure long leads, it fits well into solderless breadboards and remains stable once inserted. This potentiometer has a typical resistance range of 9.5 to 5000 ohms, with a ±5% tolerance for accurate tuning. Its compact plastic package features a screwdriver adjustment on top for easy end-to-end single-turn control. Ideal for fine-tuning circuits, this cermet-type potentiometer is a valuable component for prototyping, educational projects, and other electronic tuning applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Smooth Adjustment: Provides smooth, consistent resistance changes across its range.
Breadboard Compatibility: Designed with long leads for secure placement in solderless breadboards.
Precise Tuning: Offers an adjustable resistance range from 9.5 to 5000 ohms with ±5% tolerance.
Single-Turn Control: Features a top-mounted screwdriver adjustment for quick, single-turn calibration.
Compact Design: Small 7x7x5 mm plastic package, ideal for tight spaces in circuit designs.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Circuit Tuning: Ideal for precision adjustments in electronic circuits and prototypes.
Educational Projects: Suitable for electronics learning and experimentation.
Sensor Calibration: Used in sensor circuits for fine resistance adjustments.
DIY Electronics: Perfect for hobbyists building custom circuits and prototypes.
Embedded Systems: Useful for adjusting parameters in embedded and microcontroller projects.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Resistance	5000 ohms (±5% tolerance)
Turns	1 (Single-Turn)
Adjustment Type	Screwdriver (top-mounted)
Breadboard Compatibility	Yes
Package	Plastic, 3 radial leads
Wattage	1/2W
Type	Cermet
Dimensions (L x W x H)	7 x 7 x 5 mm (0.28 x 0.28 x 0.2 in)
Shipment Weight	0.005 kg
Shipment Dimensions	3 x 3 x 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Potentiometer 5k ohms Single-Turn Trimmer 502

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-2276

In stock 169 Items

Specific References

EAN13: 2276
