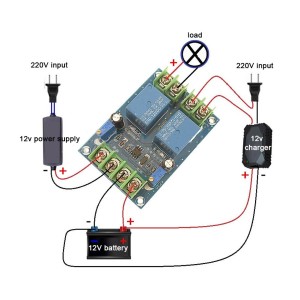

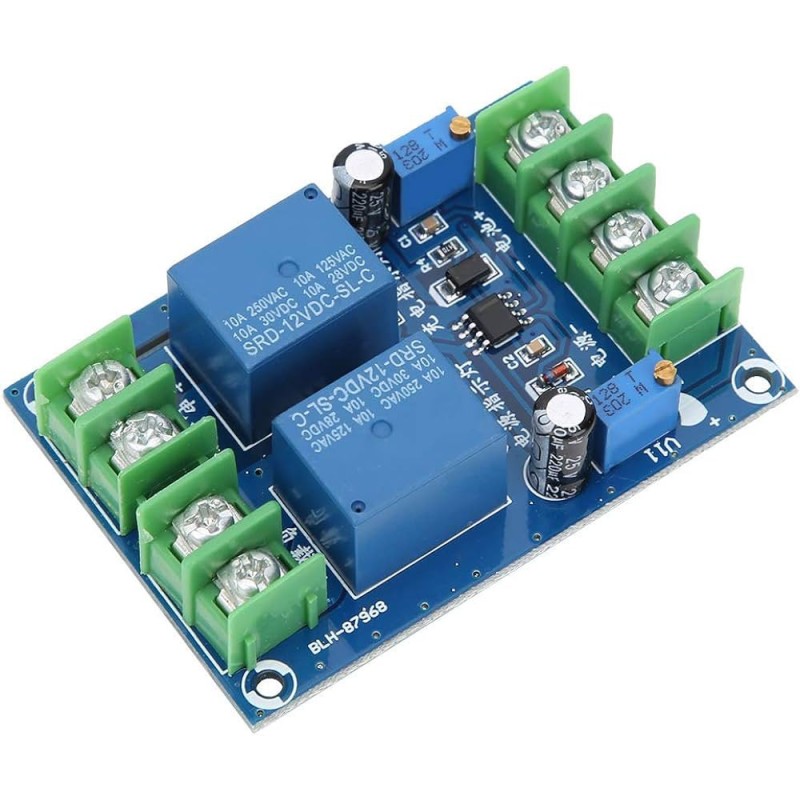

The Automatic Switching Module Charging Control Board DC 12V 10A (Model YX851) is designed to ensure continuous power delivery to your devices. When the primary power supply is available, it powers the load directly while charging the connected battery. In the event of a power outage, the module automatically switches to battery backup without interruption. Featuring precise under-voltage and over-voltage protection, this module safeguards batteries and equipment while maintaining efficient charging control. With a compact size, high reliability, and robust design, it is an excellent choice for UPS systems, solar projects, DC equipment, and other applications requiring seamless power switching. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Seamless Switching – Automatically switches between DC power and battery.
Dual Functionality – Powers the load while charging the battery.
Voltage Protection – Built-in under-voltage and over-voltage safeguards.
High Current Capacity – Supports up to 10A load at 12V DC.
Reliable Design – Ensures stable and efficient performance.
Compact Size – Small footprint for easy integration.
Durable Build – Made from high-quality materials for long-lasting use.
Precision Regulation – Clockwise/counterclockwise voltage control for charge start/stop.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
UPS Systems – Ensure uninterrupted backup power during outages.
Solar Projects – Manage solar panel charging and battery backup.
DC Equipment – Reliable power management for 12V devices.
Telecom & Networking – Keeps routers, modems, and systems online.
DIY Power Projects – Useful for hobbyists building custom backup systems.
Industrial Use – Maintains continuous operation of sensitive equipment.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | YX851 |
| Control Voltage | DC 12V |
| Control Current | 10A |
| Protection Features | Under-voltage & Over-voltage |
| Material | Plastic |
| Size (L×W×H) | 69 × 48 × 18 mm (2.7 × 1.9 × 0.7 in) |
| Mounting Size | 61 × 41 mm (2.4 × 1.6 in) |
| Color | As shown in picture |
| Shipment Weight | 0.0411 kg |
| Shipment Dimensions | 7 × 5 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Automatic Switching Module Charging Control Board DC 12V 10A
