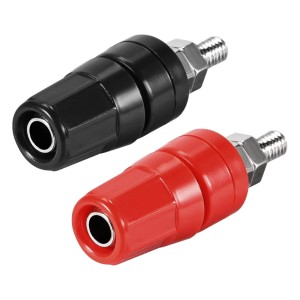

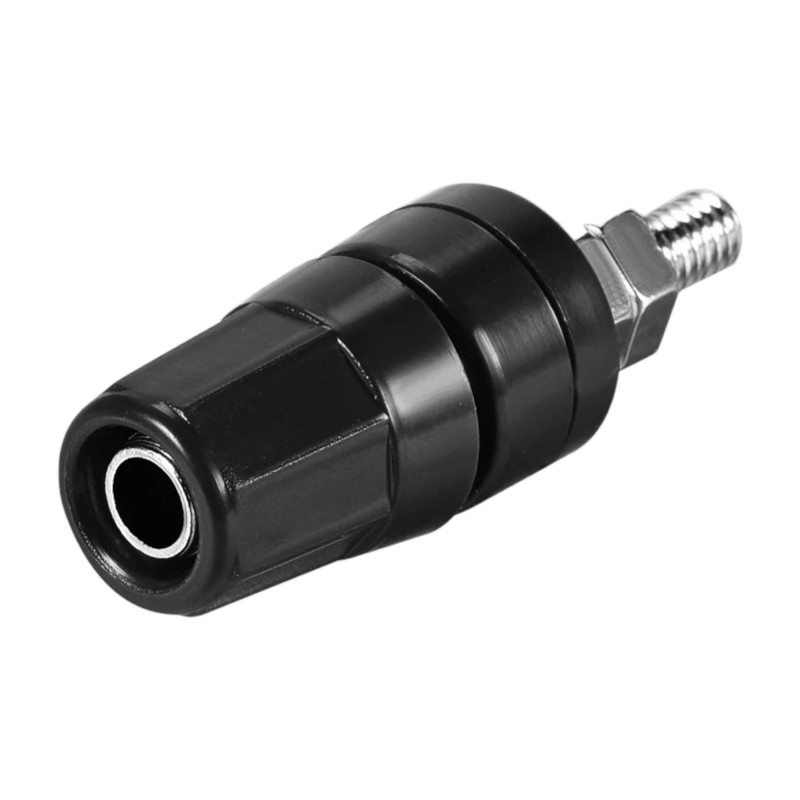

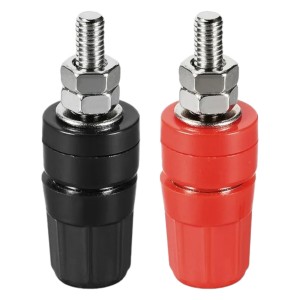

Banana Jack Binding Post - Black 20A Panel Mount

Reference RBD-2866

Heavy-Duty Performance: Supports up to 20A current for reliable connections in demanding applications.
Standard Banana Plug Compatibility: Accepts standard 4mm banana plugs for secure connections.
Multiple Connection Options: Works with banana plugs, ring terminals, spade terminals, and bare wire for versatility.
Panel Mount Design: Integrates seamlessly into project enclosures with a 17/64" mounting hole.
Black Nickel-Plated Brass Body: Provides a sleek look, resists corrosion, and ensures durability.

Description
Product Details

Description

This black, panel-mount banana jack binding post is a robust choice for various electronics projects. Featuring a solid nickel-plated brass body, it delivers exceptional performance and can handle high currents (up to 20A). The jack accepts standard 4mm banana plugs, providing a secure and reliable connection point.

This versatile jack offers multiple connection options. You can utilize banana plugs, ring terminals, spade terminals, or even connect bare wires for maximum flexibility in your project design. The compact design (38mm total length) allows for integration into enclosures with limited space. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High Current Rating: Supports up to 20A for demanding applications.
Standard Banana Plug Compatibility: Works seamlessly with standard 4mm banana plugs.
Multiple Connection Options: Accepts banana plugs, ring terminals, spade terminals, and bare wire.
Panel Mount Design: Mounts easily into project enclosures with a 17/64" hole.
Durable Construction: Nickel-plated brass body ensures strength and corrosion resistance.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Building high-current electronics projects and circuits.
Creating robust test fixtures for electronics development and troubleshooting.
Integrating reliable connections into power supplies and other demanding applications.
Providing secure and versatile connection points for various wires and components.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Connection Type (Top)	Male banana plug, Ring terminal, Spade terminal, Bare wire
Connection Type (Bottom)	Ring terminal
Max Current Rating	20A
Dimensions (Total Length)	38mm (1.5")
Dimensions (Length above Panel)	20mm (0.78")
Dimensions (Length below Panel)	18mm (0.71")
Dimensions (Width at Base)	13mm (0.51")
Mounting Hole Diameter	6.5mm (0.26")
Material	Nickel-plated brass body, ABS plastic body
Warranty	Not specified (check with supplier)
Shipment Weight	0.004 kg
Shipment Dimensions	12 x 8 x 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Banana Jack Binding Post - Black 20A Panel Mount
