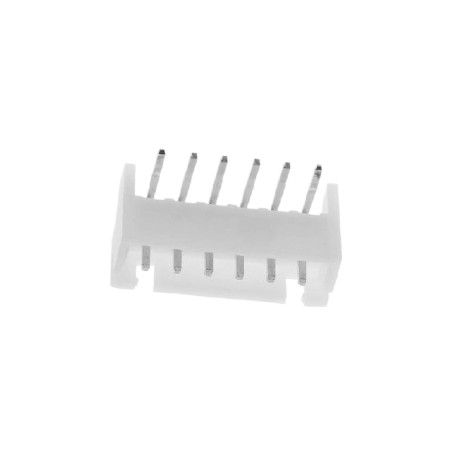

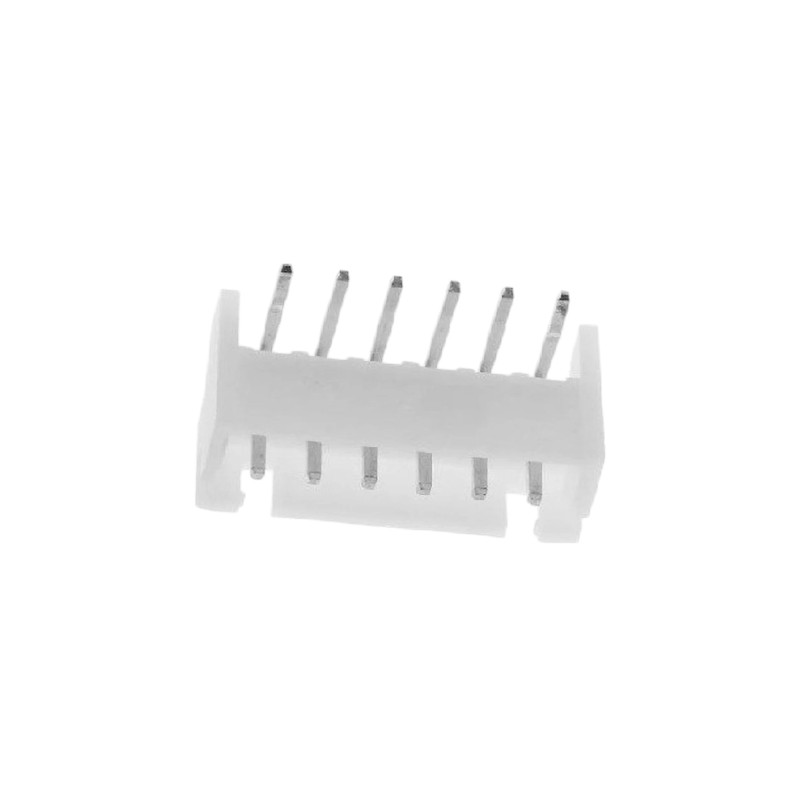

6 Pin JST-PH Male Right Angle Connector 2.00mm Pitch

Reference RBD-3031

Male 6-pin JST-PH right angle connector with 2.00mm pitch
Ideal for compact applications like mobile phones, tablets, and portable devices
Polarized design prevents incorrect or reversed connections
Easily soldered onto small, space-constrained circuits
Current rating of 3A and voltage rating of 250V

Description
Product Details

Description

The 6 Pin JST-PH Male Right Angle Connector with a 2.00mm pitch is an essential component for electronic projects requiring compact and reliable connections. This male connector is designed for use in space-constrained applications such as mobile phones, tablets, and other portable devices, where saving space without compromising performance is crucial. The polarized design ensures that connections are made correctly, reducing the risk of reversed wiring. It features a standard 2.00mm pitch and can be easily soldered onto your circuit boards, making it a versatile choice for a variety of projects. With a current rating of 3A and a voltage rating of 250V, this connector is well-suited for a wide range of applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Compact Design: Ideal for use in space-constrained applications like mobile devices.
Polarized for Safety: Prevents incorrect or reversed connections, ensuring reliability.
Standard 2.00mm Pitch: Fits small-scale projects where space is at a premium.
Through-Hole Mounting: Easy soldering onto PCBs and other circuit boards.
High Current and Voltage Ratings: Supports up to 3A of current and 250V, suitable for a variety of small electronic devices.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Compact Electronics: Suitable for small devices like mobile phones, tablets, and wearables.
Portable Devices: Ideal for connecting components in portable and space-limited applications.
Sensor Interfaces: Use in projects where compact, secure connections are necessary.
Power Connections: Provides reliable connections for power in small-scale circuits.
DIY Electronics: Essential for hobbyists working on miniaturized electronics projects.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Connector Type	Header
Contact Type	Male Pin
Number of Positions	6
Number of Rows	1
Pitch	2.00mm
Current Rating	3A
Voltage Rating	250V
Operating Temperature	-25°C to 85°C
Mounting Type	Through Hole
Weight	0.005 kg
Shipment Dimensions	3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 6 Pin JST-PH Male Right Angle Connector 2.00mm Pitch
