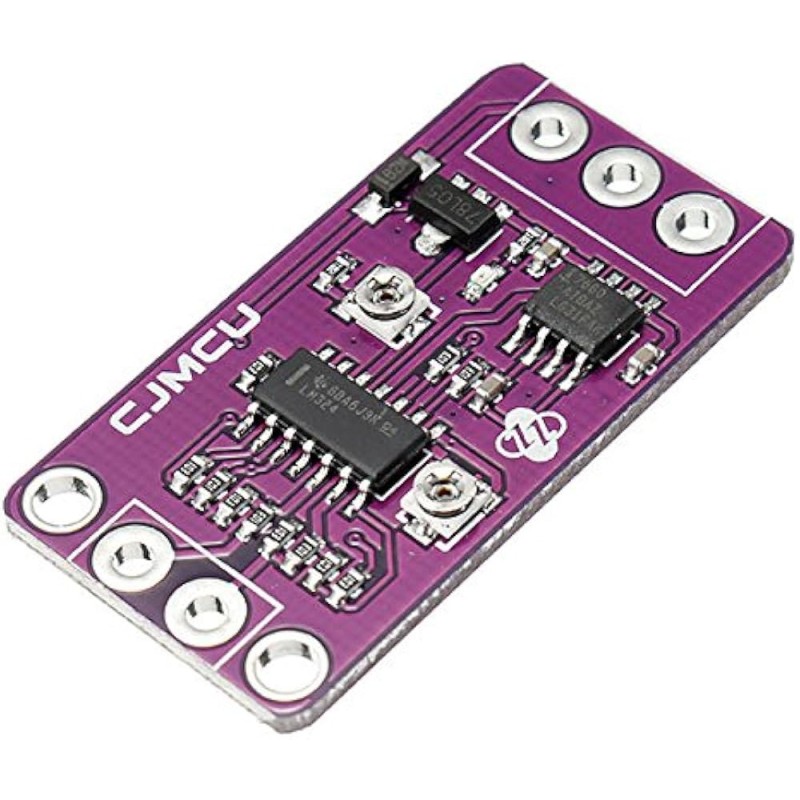

The CJMCU-3247 Current to Voltage Module is a compact and precise development board designed for converting current signals (0/4mA–20mA) into corresponding voltage outputs. This makes it an essential tool for industrial automation, process control, and sensor data acquisition systems, where reliable signal conditioning is required. Supporting a wide supply voltage range from 7V to 30V DC, the module outputs a fully adjustable voltage up to 24V. With a temperature drift of just ±100ppm/°C, it ensures stable operation even in challenging environments. The CJMCU-3247 provides robust and accurate performance, making it an excellent choice for engineers, developers, and hobbyists working with current loop sensors or integrating current-based signals into voltage-driven systems. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Current-to-Voltage Conversion – Converts 0/4mA–20mA signals into adjustable voltage.
Wide Input Range – Accepts standard industrial current loop signals.
Adjustable Voltage Output – Supports up to 24V max for flexibility.
Stable Operation – Low temperature drift ensures accuracy in varying conditions.
Flexible Power Supply – Works with 7–30V DC systems.
Compact Design – Easy to integrate into existing control and monitoring systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Industrial Automation – Convert sensor signals for PLCs and controllers.
Process Control – Monitor and manage current-loop-based instrumentation.
Data Acquisition – Interface current sensors with voltage-based ADCs.
Educational Projects – Teach signal conditioning and current loop systems.
DIY Electronics – Hobbyist applications in sensor interfacing and control circuits.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Specification | Details |
| Product Model | CJMCU-3247 Current to Voltage Module |
| Supply Voltage | 7V – 30V DC |
| Input Current | 0/4mA – 20mA |
| Output Voltage | Adjustable, 0–24V max |
| Temperature Drift | ±100ppm/°C |
| Application Areas | Process control, automation, sensor interfacing |
| Shipment Weight | 0.0004 kg |
| Shipment Dimensions | 4 × 2 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Current to Voltage Module (0/4mA-20mA) Development Board
