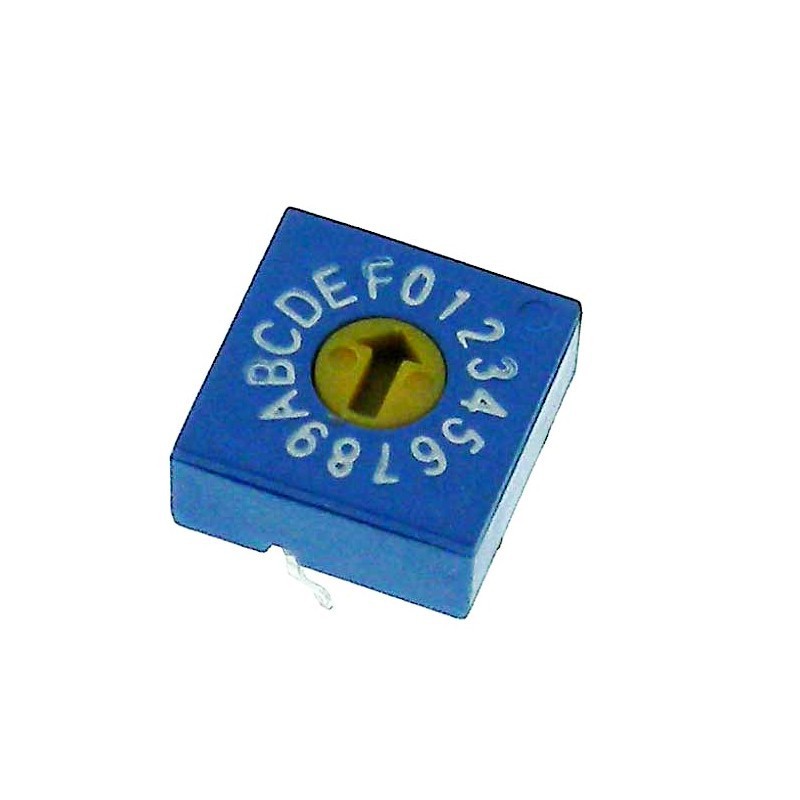

The 0-F 16Bit Rotary Coding Dial Switch is a compact and reliable DIP rotary switch designed for manual configuration and address selection in electronic circuits. With 16 selectable positions ranging from 0 to F (hexadecimal), this switch allows quick and accurate system setup without requiring firmware changes. Because it features a standard 2.54mm pin pitch and 7.62mm row spacing, it integrates easily into conventional PCB layouts. Moreover, the gold-plated contacts ensure low contact resistance and stable electrical performance over time. The fully sealed construction protects internal contacts from dust and contaminants, which improves long-term reliability in industrial and instrumentation environments. This rotary DIP switch is ideal for embedded systems, industrial controllers, communication devices, and test equipment Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
16-Position Selection (0–F) – Enables precise hexadecimal configuration for addressing and control.
Standard DIP Package – Designed for easy PCB integration using through-hole soldering.
Gold-Plated Contacts – Provides low resistance and reliable long-term conductivity.
Environmental Sealing – Protects against dust and contamination for stable operation.
High Mechanical Durability – Supports up to 2000 switching cycles for extended service life.
Compact Footprint – Fits easily into space-constrained electronic designs.
High Insulation Resistance – Ensures electrical safety and signal stability.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Address Configuration – Set device IDs in communication systems.
Industrial Controllers – Adjust operating modes or configuration parameters.
Embedded Systems – Select firmware options or hardware settings.
Access Systems – Implement DIP-based code selection mechanisms.
Test & Measurement Equipment – Modify calibration or test settings quickly.
Instrumentation Devices – Provide reliable manual configuration control.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Number of Positions | 16 (0–F) |
| Actuator Type | Rotary DIP |
| Mounting Type | Through Hole |
| Terminal Type | PC Pins |
| Terminal Pitch | 2.54mm |
| Row Spacing | 7.62mm |
| Total Pitch | 12.7mm |
| Maximum Voltage | 24V DC |
| Maximum Current | 0.025A @ 24VDC |
| Non-Switching Current | Up to 100mA |
| Contact Plating | Gold |
| Contact Resistance | ≤100mΩ |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 250VAC |
| Mechanical Life | 2000 Cycles |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 10mm × 10mm × 5.4mm |
| Shipment Weight | 0.007 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 0-F 16Bit Rotary Coding Dial Switch – DIP
