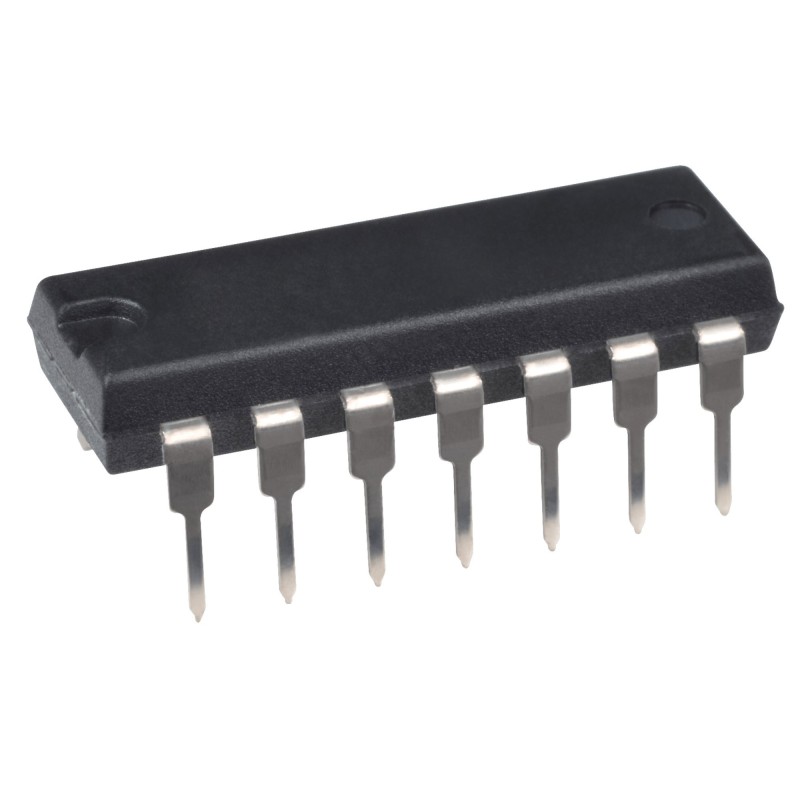

The CD4071BE Logic Gate from Texas Instruments is a quad 2-input OR gate IC built on CMOS 4000 logic technology. Housed in a standard PDIP-14 through-hole package, this IC integrates four independent OR gates, each with two inputs and one output. Supporting a wide supply voltage range of 3V to 18V, the CD4071BE is ideal for a variety of digital logic circuit applications. It offers low power consumption, high noise immunity, and a propagation delay of 60 ns, making it suitable for both low-speed and general-purpose logic designs. This logic gate is frequently used in educational projects, industrial automation, signal processing, and embedded system design, especially where multiple OR gate functions are required on a single chip. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Quad OR Gate Design – Includes 4 individual 2-input OR gates in a single IC
Wide Supply Range – Operates from 3V to 18V for flexible circuit integration
Low Power Consumption – Consumes as little as 15 μA during typical operation
CMOS Technology – High noise immunity and low static power dissipation
Fast Switching Speed – 60 ns propagation delay suitable for most logic applications
Through-Hole Mounting – PDIP-14 package for easy placement on breadboards and PCBs
Temperature Resilience – Operates in extreme conditions from -55°C to +125°C
Texas Instruments Reliability – Quality assurance from a trusted semiconductor brand
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Digital Logic Design – Suitable for prototyping and building basic logic circuits
Embedded Systems – Used for simple decision-making logic in microcontroller projects
Educational Kits & Labs – Ideal component for teaching digital electronics
Signal Control Circuits – Acts as signal combiner or logic-level enhancer
Automation Systems – Reliable logic control in low-speed industrial electronics
General Electronics Projects – Versatile building block in any electronics toolbox
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Logic Function | OR (Quad 2-Input) |
| Logic Family | 4000 CMOS Series |
| Number of Gates | 4 |
| Number of Inputs per Gate | 2 |
| Output Type | CMOS |
| Propagation Delay | 60 ns |
| Supply Voltage Range | 3V – 18V |
| Operating Supply Voltage | 10V (Typical) |
| Operating Supply Current | 15 μA |
| Quiescent Current | 20 nA |
| Output Current (Low/High) | ±6.8 mA |
| Input Type | CMOS |
| Package Type | PDIP-14 |
| Mounting Style | Through Hole |
| Operating Temperature Range | -55°C to +125°C |
| Dimensions (L × W × H) | 19.3 × 6.35 × 4.57 mm |
| Unit Weight | 0.032734 oz |
| Brand | Texas Instruments |
| Series | CD4071B |
| Shipment Weight | 0.010 kg |
| Shipment Dimensions | 12 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:
1 x CD4071BE Logic Gate
