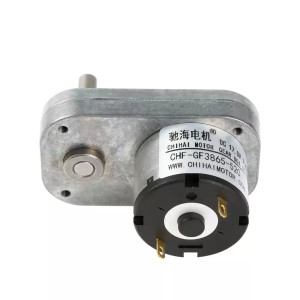

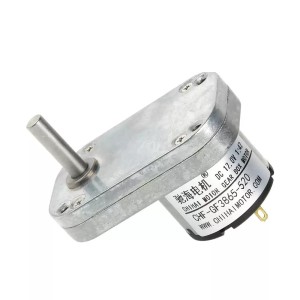

GM520 Carbon Brush High Torque DC Gear Motor with Mounting Bracket

Product Description:
The CHF-GM3865-520 DC Gear Motor is a high-torque, permanent magnet DC motor with integrated planetary gear reduction, designed for compact and durable motion applications. With a robust L-type housing and precision construction, it offers consistent performance for intelligent equipment and small machinery.

Key Features:

• Compact L-shaped build: 38 × 64.5 × 40 mm

• Shaft length: 23.5 mm, D-cut length: 12 mm

• Shaft diameter: 6 mm

• Operating voltage: DC 3V–12V (customizable up to 24V)

• Weight: Approx. 165g (varies with gear ratio)

• Durable design with customizable voltage and gearing

• Manufacturer: 驰海电机 (Chihai Motor)

Technical Specifications:

• Gear Ratio: 1:42

• Rated Voltage: 12V DC

• No-load Speed: 150 RPM

• Rated Torque: 2.00 kg·cm

• Rated Speed: 95 RPM

• No-load Current: ≤ 65 mA

• Rated Current: ≤ 0.7 A

• Stall Torque: ≥ 5.0 kg·cm

• Stall Current: ≤ 1.8 A

Applications:

• Smart kitchen appliances

• Small baking and food wrapping machines

• Intelligent conveyor carts

• Robotics and automation equipment

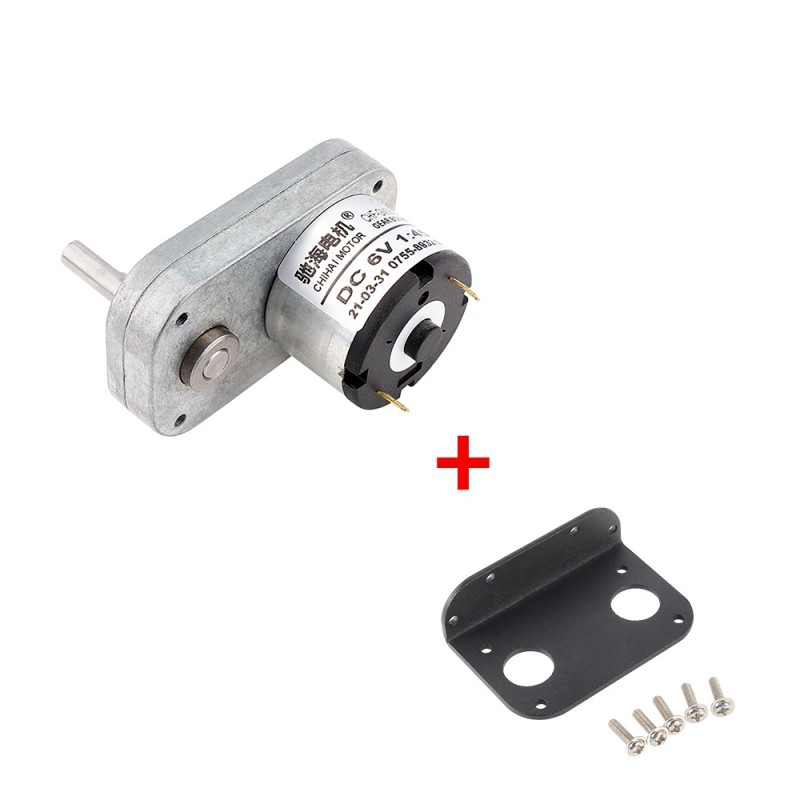

Package Includes:

• 1 × CHF-GM3865-520 DC Gear Motor

• 1 × L-type Mounting Bracket

Why Choose This Motor?
Offering excellent torque output, compact design, and voltage flexibility, this motor is ideal for a wide range of DC-driven, low-speed, high-torque automation tasks. Its reliability and customizable specs make it an asset for hobbyists and professionals alike.
