- Servo Motor Installation Guidelines
- Run the servo in free state first: Before attaching the servo to anything, run
myservo.write(90); to set it to the middle position. - Check the mechanical limits of the arm: Verify that the servo motor will not try to rotate beyond the arm’s mechanical limit.
- Limit rotation angle in the code: Define the maximum and minimum rotation angles in your program so that the motor does not hit its physical limit.
- Avoid overload: If the servo tries to go past its limit, it may overheat or burn out due to excessive load.
- Note: Failing to check limits and set angles may cause multiple servos to fail at once.
Product Description:

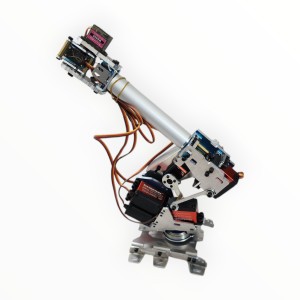

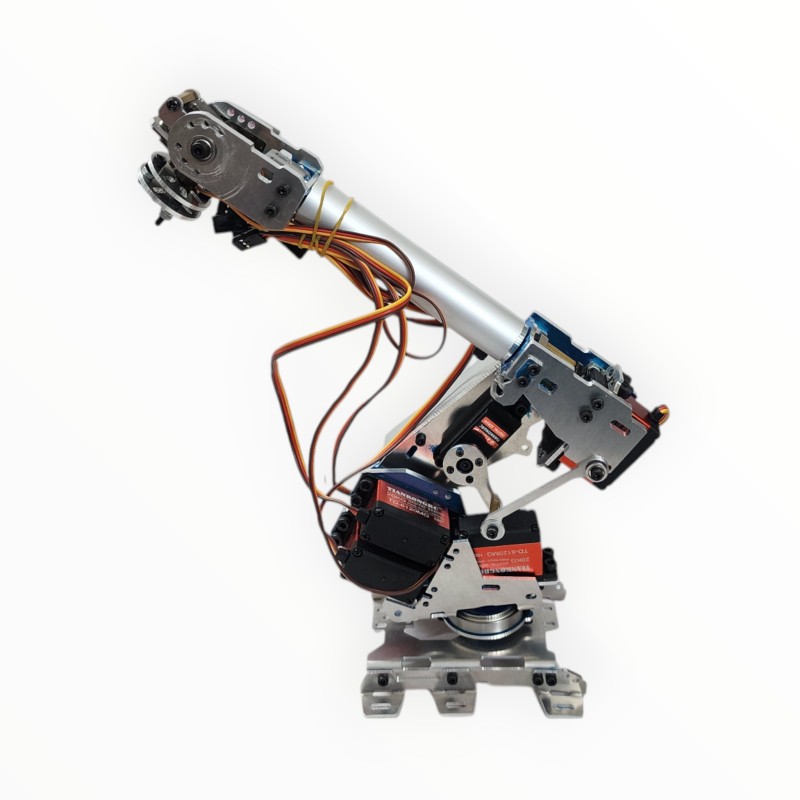

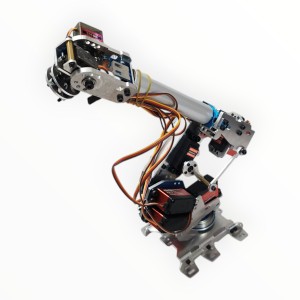

This high-performance all-metal robotic arm is engineered for precision, strength, and durability—perfect for educational use, research experiments, and DIY robotics projects. Featuring a dual-servo large arm drive system, it supports full six degrees of freedom motion: base rotation, shoulder, elbow, forearm rotation, wrist, and wrist rotation. The base is equipped with a high-quality steel bearing for enhanced stability and load-bearing capacity.
Package Options:
Key Features:
260mm extended rotating arm, superior movement range compared to similar models
All-metal reinforced frame, made from thickened high-strength aluminum alloy for maximum stability and durability
Precision bearing joints at each axis ensure smooth movement and reduced friction
Dual-servo power on the large arm, doubling torque (dual 20KG = 40KG equivalent thrust) for improved lifting capacity
Optimized arm length, based on servo load calculations, to enhance mechanical performance without compromising servo lifespan
Compatible with various end-effectors, such as suction cups, electromagnets, grippers, forks, and more
Educational focus, making it ideal for robotics learning, university labs, and prototyping projects
Note:

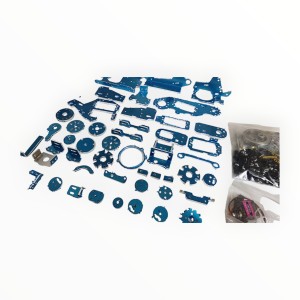

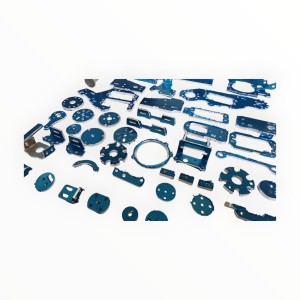

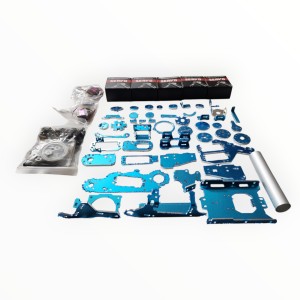

All packages are shipped as kits and require manual assembly and tuning.
Technical Tip:
Longer arms are not always better—longer mechanical arms increase torque demands on servos, potentially causing early wear or damage. This design balances length and power, optimizing load distribution and maximizing servo performance.
Empower your robotics project or classroom with a rugged, smartly engineered robotic arm—order today and build your own precision manipulator!
