Robot Mechanic Push Kit Compatible with Custom Robots

Product Description:

Transform your robot into a functional bulldozer or intelligent pushing machine with the DFRobot Mechanic – Push Kit. Originally developed for the micro:Maqueen Lite and Maqueen Plus, this add-on kit is also adaptable for other small robotic platforms with just minor adjustments.

With high-quality components like a 9g metal gear servo, metal trolley plate, and pan-tilt-zoom mount, this kit enables your robot to perform physical interactions such as pushing objects, clearing pathways, or even competing in a mini robotic football match!

Ideal for STEM education, robotics competitions, or hands-on classroom use, this kit enhances both creativity and mechanical learning.

Key Features:

• Compatible with Maqueen Lite (v4.0+) and Maqueen Plus

• Adaptable for other small robots with minimal modification

• Durable 9g Metal Gear Servo with 0–180° control

• Aluminum Alloy Mounting Plates (sandblasted finish)

• Easy plug-and-play assembly

• Metal servo connector for secure and stable operation

• Supports Ultrasonic Sensor Mounting

Specifications:

• Servo Weight: 12g ±1g

• Control Angle: 0° to 180°

• Control Ports (MaqueenPlus): S1, S2, S3

• Standby Current: <45mA

• Material: Anodized Aluminum Alloy

Applications:

• Robotic Football Matches – use the push plate to compete in goal-scoring games

• Venue Cleaning Simulation – simulate cleaning or object sweeping with precise servo control

• Obstacle Clearing – push small objects out of the way during autonomous missions

• Object Sorting and Transport – push or direct items to specific areas

• STEM Education Projects – teach mechanical design and servo control in classrooms

• Creative DIY Robotics – customize the mount for unique robotic functions

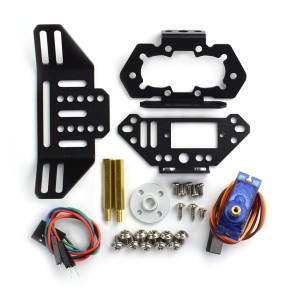

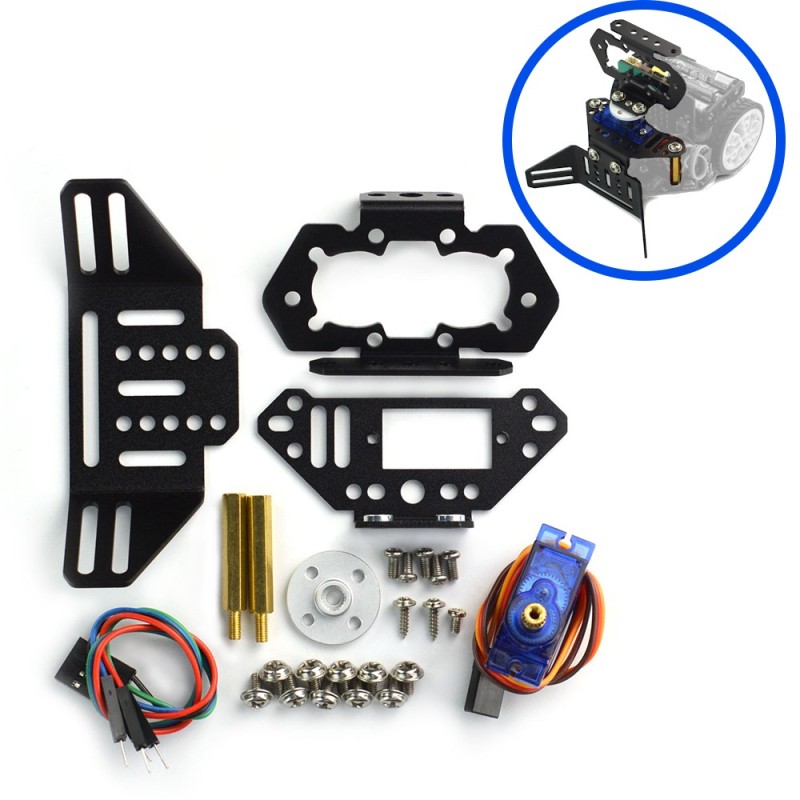

Package Includes:

• 1 × 9g Metal Gear Servo

• 1 × Metal Trolley Plate

• 1 × Metal Pan-Tilt-Zoom Mount Plate

• 2 × M3×25mm Copper Pillars

• 5 × M2.5×5mm Screws

• 10 × M3×5mm Screws

• 1 × 4P Ultrasonic Sensor Connecting Wire

Note: micro:bit board, Maqueen robot, and batteries are not included. These must be purchased separately.

Build, push, play, and compete—whether it’s cleaning the arena or scoring a goal in a robot football match, this Push Kit gives your robot the power to move more than just itself.
