Supports Global Band NB-IoT Communication, Small In Size, Low Power Consumption

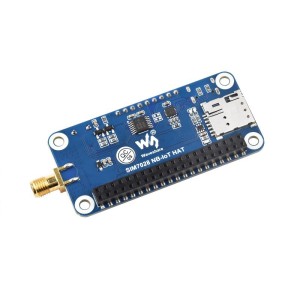

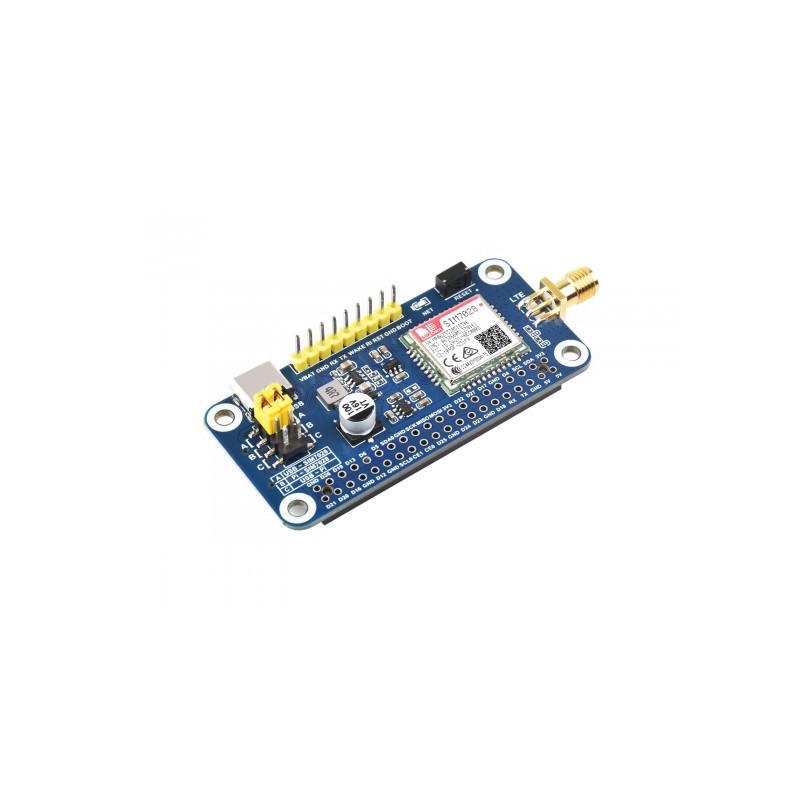

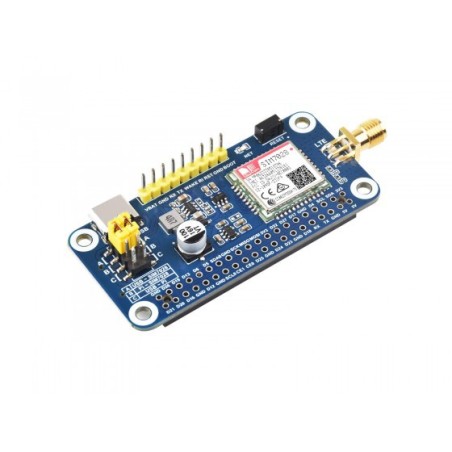

The SIM7028 NB-IoT HAT is a small size, low-power, and powerful Raspberry Pi HAT with NB-IoT (Narrow-Band Internet of Things) function, supports global band and supports TCP, UDP, LWM2M, COAP, DTLS, DNS, NTP, PING, HTTP(S), MQTT(S), TLS/SSL, etc. It is designed for applications that need low delay, low power, and low throughput, also suitable for IoT applications such as meters, remote control, asset tracking, remote monitoring, remote healthcare, bicycle-sharing, and so on.
| Communication parameters | |
|---|---|
| Band | B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B66/B70/B85 |
| Data rate | ≤159Kbps(UL) ≤127Kbps(DL) |
| Operating parameters | |
| Power supply | 5V |
| Logic level | 5V/3.3V (3.3V by default) |
| Overall current (idle mode) | 4mA |
| Single module current (VBAT=3.3V) | Idle mode: 2.8mA |
| PSM mode: 0.8uA | |
| DRX mode: 0.11mA@Idle(DRX=2.56s) | |
| eDRX mode: 0.018mA@Idle(eDRX=163.84s; PTW=25.6s) | |
Compatible with Raspberry Pi series boards, Jetson Nano, etc.

Connect to Raspberry Pi Zero

Connect to Raspberry Pi 4B

Connect to Jetson Orin
for reference only, the above control boards are NOT included
Supports communication protocols including TCP, UDP, LWM2M, COAP, DTLS, DNS, NTP, PING, HTTP(S), MQTT(S), TLS/SSL, etc.

provides multiple networking demos with Waveshare.cloud, AWS IoT Core, and Aliyun IoT support, using the lightweight MQTT protocol to achieve data visualization services

provides tutorial and demo for quick start of smart IoT solutions, with large-screen Data Visualization display to meet various application scenarios
