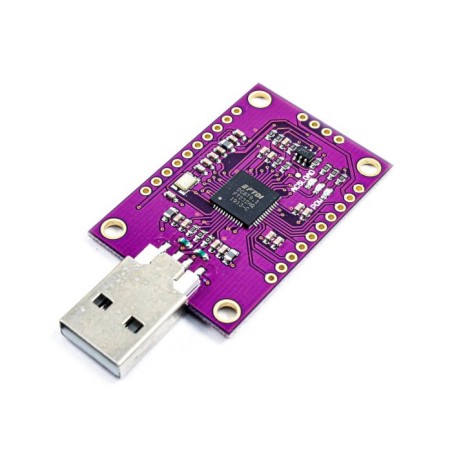

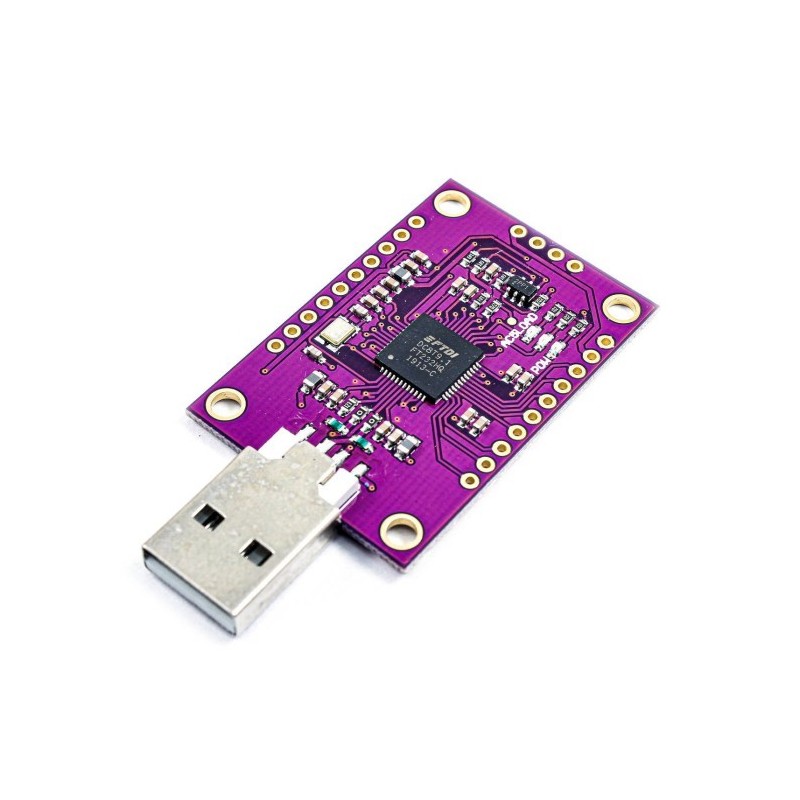

FT232H High-Speed USB to JTAG UART/FIFO SPI/I²C Converter Module

Product Description

The FT232H Converter Module is a high-speed, multifunctional USB bridge designed to provide seamless connectivity between USB and a wide range of serial and parallel interfaces. Powered by the FT232H chip, this single-channel USB-to-serial/parallel converter supports UART, RS232, RS422, RS485, FIFO, FT1248, JTAG, SPI, and I²C communication modes.

With full USB protocol handled on-chip, there is no need for additional USB firmware programming, making it easy to integrate into development projects. The FT232H enables fast data transfer, simplifies CPU interface design with its FIFO mode, and ensures compatibility with FTDI’s royalty-free drivers (VCP and D2XX).

Perfect for use in Arduino, Raspberry Pi, industrial control, USB instrumentation, and data acquisition, this module is an all-in-one solution for bridging USB with high-speed serial and parallel interfaces.

Features

• Chipset: FT232H

• USB Speed:

  • High-speed: 480 Mbps

  • Full-speed: 12 Mbps

• Data Transfer Rates:

  • UART: up to 12 Mbaud

  • Asynchronous 245 FIFO: up to 8 Mbyte/s

  • Synchronous 245 Parallel FIFO: up to 40 Mbyte/s

• Interfaces Supported: USB, JTAG, UART, FIFO, SPI, I²C, FT1248

• Configurable FT1248 Interface: Bi-directional data bus (1, 2, 4, or 8 bits wide)

• CPU-Style FIFO Interface Mode: Simplifies CPU interface design

• Driver Support: VCP (Virtual COM Port) and D2XX direct drivers (royalty-free)

• Other Features: Adjustable receive buffer timeout, flexible interface configurations

• Pins: 24-pin module

Applications

• USB to UART (RS232, RS422, RS485) conversion

• USB to FIFO / FT1248 / JTAG / SPI / I²C bridge

• USB to fast serial or parallel CPU interfaces

• Industrial control and automation systems

• USB-based data acquisition and instrumentation

• Embedded development with Arduino, STM32, or Raspberry Pi

• USB-enabled consumer electronics (MP3 players, set-top boxes, digital cameras)

• USB flash card reader/writer and barcode readers

Package Includes

• 1 × FT232H High-Speed USB Converter Module

Why Choose This Module?

The FT232H module is a versatile, high-performance, and developer-friendly USB bridge. With its wide support for serial and parallel protocols, plug-and-play FTDI drivers, and high transfer speeds, it is the ideal tool for engineers, makers, and researchers who need reliable USB connectivity for prototyping, debugging, and industrial applications.

Unlock high-speed USB connectivity for your embedded projects with the FT232H Converter Module – a true all-in-one USB-to-serial/parallel solution.
