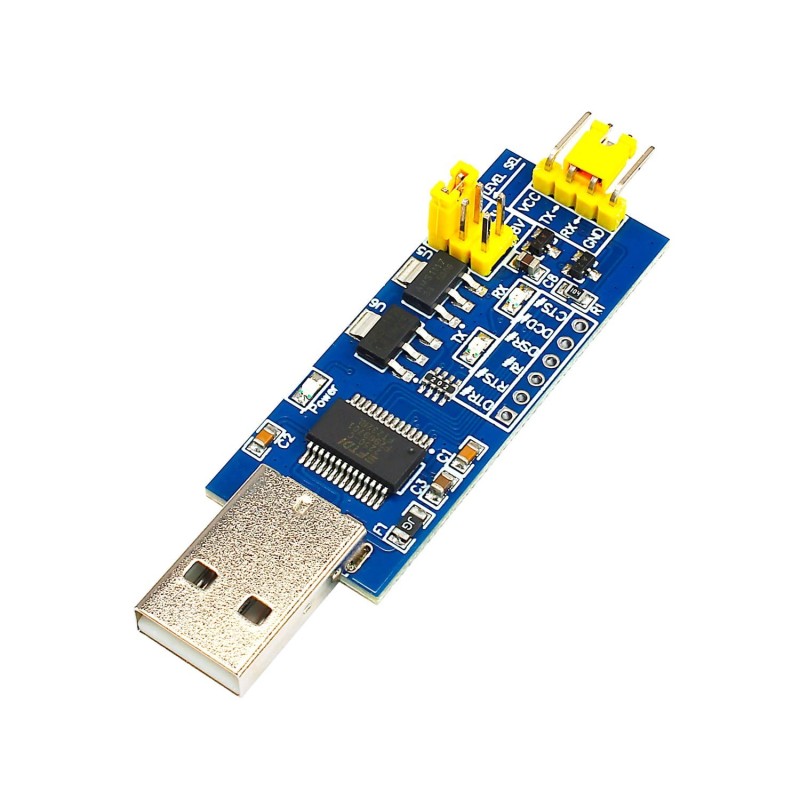

    FT232RL USB to TTL Serial Port Module High Quality Robotics Bangladesh
    • FT232RL USB to TTL Serial Port Module High Quality Robotics Bangladesh

    FT232RL USB to TTL Serial Port Module High Quality

    RBD-3773

    The FT232RL USB to TTL Serial Port Module is a reliable and versatile USB-to-serial converter based on the original FT232RL chip. It provides high-speed, stable communication between your PC and microcontrollers, development boards, or embedded systems. With support for three selectable logic levels (5V, 3.3V, 1.8V), this module can adapt to a wide variety of devices without additional level shifters.

    BDT 450
    BDT 450 BDT 450 BDT 450 BDT 450
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 450 Tax excluded
    BDT 450 Tax included
    BDT 0 Tax
    BDT 450 Tax excluded
    BDT 0 Tax
    BDT 450 Tax included
    Quantity
    18 Items

    1 person has purchased this item
    18 items in stock
    Description

    Product Description

    The FT232RL USB to TTL Serial Port Module is a reliable and versatile USB-to-serial converter based on the original FT232RL chip. It provides high-speed, stable communication between your PC and microcontrollers, development boards, or embedded systems. With support for three selectable logic levels (5V, 3.3V, 1.8V), this module can adapt to a wide variety of devices without additional level shifters.

    Its compact design includes status LEDs for power, transmit, and receive, as well as a built-in 500mA resettable fuse and diode protection, making it safe for both beginners and professionals. With speeds up to 3Mbps, the FT232RL module is ideal for Arduino, STM32, ESP8266/ESP32, and other serial communication projects.

    Key Features

    • Chipset: Original FT232RL main control chip (stable & fast communication)

    • Supported Voltage Levels: Switchable between 5V / 3.3V / 1.8V for flexible compatibility

    • Communication Speed: Up to 3 Mbps (3× standard 921600 baud rate)

    • Indicators: Integrated LEDs for Power (blue), Receive (green), and Transmit (red)

    • Overcurrent Protection: 500mA self-recovery fuse to protect your computer and devices

    • Output Current: Up to 500mA to power connected systems

    • Signal Protection: Integrated diode protection against voltage spikes

    • Supported Pins: VCC, GND, TX, RX, CTS, RTS, DTR, DSR, RI, DCD

    • Size: Compact PCB, only 20 × 50 mm – fits neatly without blocking nearby USB ports

    • System Support: Windows XP / 7 / 8 / 10 (32/64-bit), Linux, macOS

    Pin Description

    • VCC / GND – Power and ground (GND must always be connected; VCC optional)

    • TX / RX – Serial communication pins (connect TX → RX, RX → TX on external device)

    • CTS / RTS / DSR / RI / DCD – Hardware flow control pins (available via header)

    • Voltage Select (5V / 3.3V / 1.8V) – Switchable via jumper cap

    • TX/RX Test Jumper – Shorted by default for testing; remove when in use

    Applications

    • USB-to-Serial adapter for microcontroller development (Arduino, STM32, PIC, etc.)

    • Flashing and debugging ESP8266, ESP32, and similar Wi-Fi modules

    • Raspberry Pi and embedded Linux serial communication

    • Industrial device serial programming and monitoring

    • Hardware flow control and data logging

    Package Includes

    • 1 × FT232RL USB to TTL Serial Port Module

    Why Choose This Module?

    The FT232RL USB to TTL Serial Port Module combines stability, speed, and safety in a compact design. With multi-voltage support, built-in protection, and easy plug-and-play drivers, it is the perfect choice for serial communication, firmware flashing, and embedded development.
