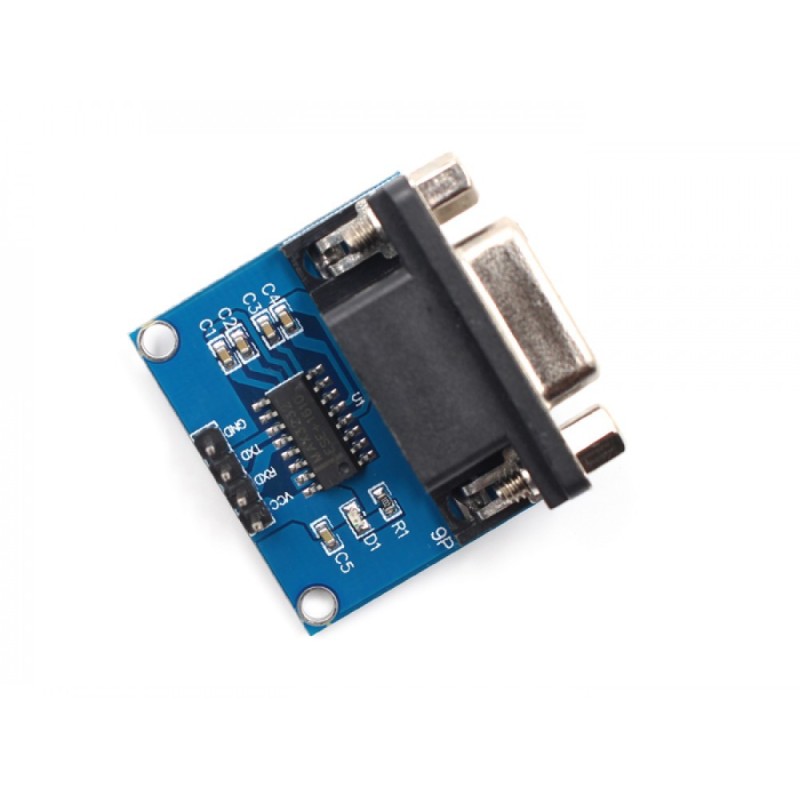

    RS232 to TTL Serial Interface Module

    RBD-1916

    • IC Chip: MAX3232
    • Operating Voltage: 3.3-5.5V
    • It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU
    • Pre-assembled compact size board
    • Suitable for use with most microcontrollers
    • Operates up to 250 kbit/s
    BDT 105
    BDT 105 BDT 105 BDT 105 BDT 105
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 105 Tax excluded
    BDT 105 Tax included
    BDT 0 Tax
    BDT 105 Tax excluded
    BDT 0 Tax
    BDT 105 Tax included
    Quantity
    In-Stock
    17 Items

    48 people have purchased this item
    2 people recently added this item to the cart
    17 items in stock
    Description

    This RS232 to TTL Serial Interface Module is a board with the MAX3232 transceiver integrated circuit (IC). It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion.

    These boards usually have a DB9 connector soldered at one end, and four header pins with jumper cables at the other end. The jumper cables enable the user to connect the wires to a breadboard or a microcontroller project board, whilst the DB9 connects directly to a COM port of a computer.

    The MAX3232CSE+ IC, which comes in a 16 pin narrow SO package. It requires between 3.0 V to 5.5 V to operate and has two receivers and two transmitters. It has a maximum guaranteed data rate of 120 kbps, and the circuitry requires four 0.1µF charge-pump support capacitors. It is also compatible with the famous MAX3232 IC pins. These boards connect to systems with a UART  hence, they work with ATMEL and PIC microcontrollers.

    MAX3232 RS232 Serial Port To TTL Converter Module DB9 Connector 5V RS232 to TTL + Female Serial TTL + serial modules / Brush board. This module can be used to the serial port of microcontroller module expand DVD, router, hard drive and other equipment to upgrade. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features :

    1. It is widely used in radio modification, phone flash, XBOX360 flash, GPS, vehicle detection, DVD flash, hard disk repair set-top box upgrade.
    2.  It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU
    3. Pre-assembled compact size board
    4. Suitable for use with most microcontrollers
    5. Operates up to 250 kbit/s

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    IC ChipMAX3232
    Operating Voltage (VDC)3.3 ~ 5.5
    Length (mm)45
    Width (mm)32
    Height (mm)15
    Weight (gm)12
    Shipment Weight0.016 kg
    Shipment Dimensions7 × 5 × 2 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes :

    1 x RS232 to TTL Serial Interface Module

    Product Details
    RBD-1916
    17 Items

    Specific References

    EAN13
    1916
