Product Description:

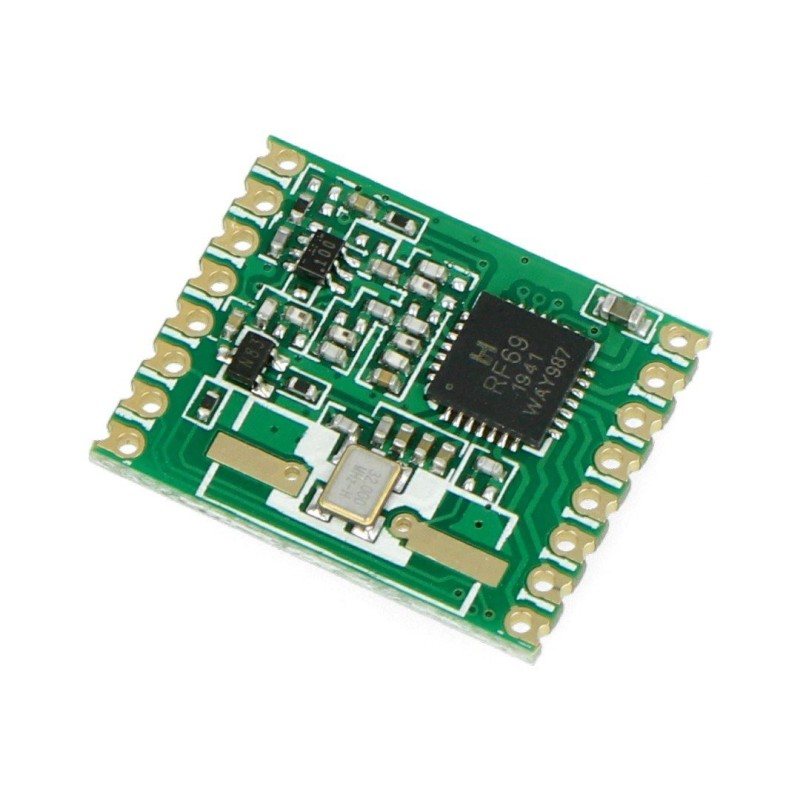

The RFM69HW-433S is a high-performance 433 MHz ISM band transceiver module designed for reliable, long-range, and low-power wireless communication. Featuring a built-in 20 dBm RF power amplifier, this module is ideal for IoT networks, smart home devices, industrial telemetry, and remote control systems.
Operating at 1.8 V to 3.6 V DC, the RFM69HW supports multiple modulation formats — FSK, GFSK, MSK, GMSK, OOK, and ASK — with data rates up to 300 kbps. Its excellent receiver sensitivity of −120 dBm ensures stable communication even in noisy environments.
Integrated CRC-16 error checking and AES-128 hardware encryption provide secure and error-free data transmission. Fully compatible with Arduino, STM32, ESP32, and other microcontrollers via SPI interface, this module is an excellent choice for both hobby and professional wireless communication applications.
Key Features:
Frequency Band: 433 MHz ISM band
Operating Voltage: 1.8 V – 3.6 V DC
Transmit Power: Up to 20 dBm (High Power Mode)
Receiver Sensitivity: –120 dBm @ 1200 bps
Data Rate: Up to 300 kbps (FSK)
Modulation Modes: FSK, GFSK, MSK, GMSK, OOK, ASK
Encryption: Built-in AES-128 for secure data transmission
Error Checking: CRC-16 hardware support
Low Power Consumption and wide operating range
Compact SMD design for easy integration
Arduino compatible (works with LowPowerLab RFM69 library and RadioHead library)
Technical Specifications:
| Parameter | Details |
|---|
| Model | RFM69HW-433S |
| Frequency | 433 MHz |
| Operating Voltage | 1.8 V – 3.6 V DC |
| Transmit Power | Up to 20 dBm |
| Receive Sensitivity | –120 dBm @ 1200 bps |
| Data Rate | Up to 300 kbps |
| Modulation | FSK, GFSK, MSK, GMSK, OOK, ASK |
| Encryption | AES-128 |
| Error Check | CRC-16 |
| Interface | SPI |
| Form Factor | SMD |
Applications:
IoT Wireless Sensor Networks
Home Automation Systems
Remote Control and Monitoring
Industrial Wireless Telemetry
Security and Alarm Systems
Embedded RF Communication Projects
Package Includes:
Resources & Example Project:
Example Arduino Tutorial: All About Circuits – Introduction to the RFM69HW Transceiver
Why Choose This Module?
The RFM69HW-433S combines high power, long range, and secure communication in a small SMD footprint. With robust encryption, low noise, and multi-modulation support, it’s a reliable choice for developing advanced 433 MHz wireless IoT and control systems.
