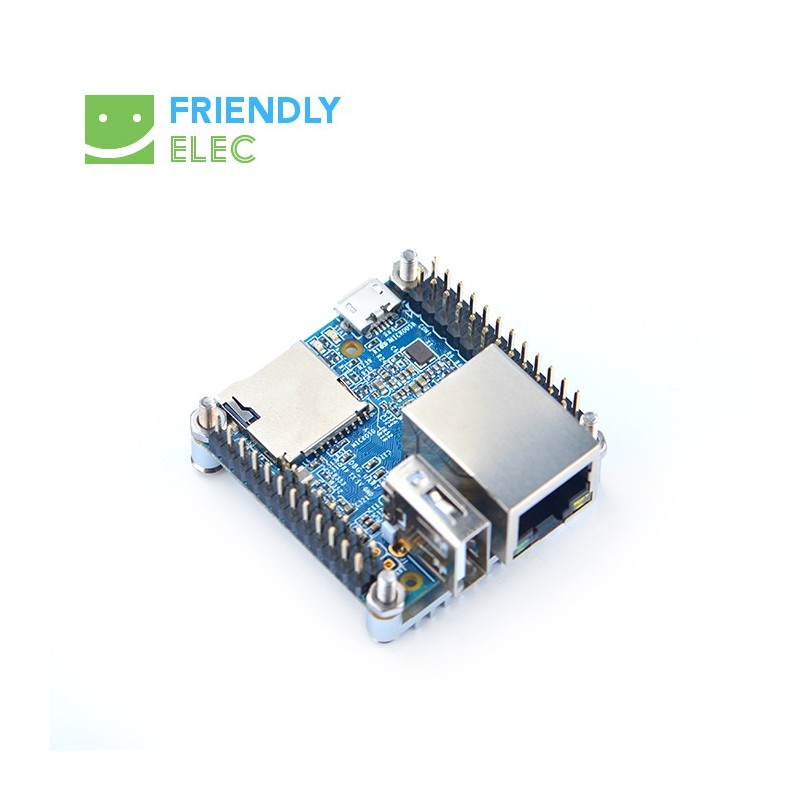

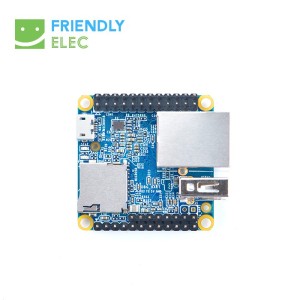

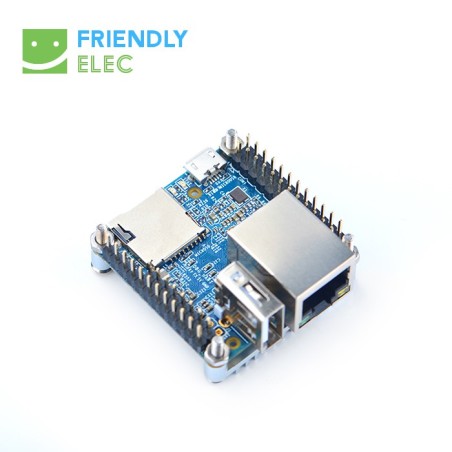

The NanoPi NEO Standard Edition by FriendlyELEC is an ultra-compact development board measuring just 40×40mm, powered by the Allwinner H3 quad-core Cortex-A7 processor (up to 1.2GHz). Despite its tiny form factor, this board delivers impressive performance and flexibility, supporting multiple Linux distributions such as Ubuntu, Debian, and Armbian, making it an excellent choice for makers, developers, and IoT enthusiasts.
The NanoPi NEO Standard Edition by FriendlyELEC is an ultra-compact development board measuring just 40×40mm, powered by the Allwinner H3 quad-core Cortex-A7 processor (up to 1.2GHz). Despite its tiny form factor, this board delivers impressive performance and flexibility, supporting multiple Linux distributions such as Ubuntu, Debian, and Armbian, making it an excellent choice for makers, developers, and IoT enthusiasts.
Equipped with 256MB/512MB DDR3 RAM, MicroSD storage, 10/100Mbps Ethernet, and USB 2.0 ports, the NanoPi NEO is ideal for headless server applications, lightweight embedded systems, and networking projects. Its 36-pin GPIO header supports UART, SPI, I2C, and more, ensuring easy hardware expansion.
With excellent software support and active community resources, the NanoPi NEO is a cost-effective yet powerful alternative to traditional single-board computers for DIY projects, edge computing, and embedded development.

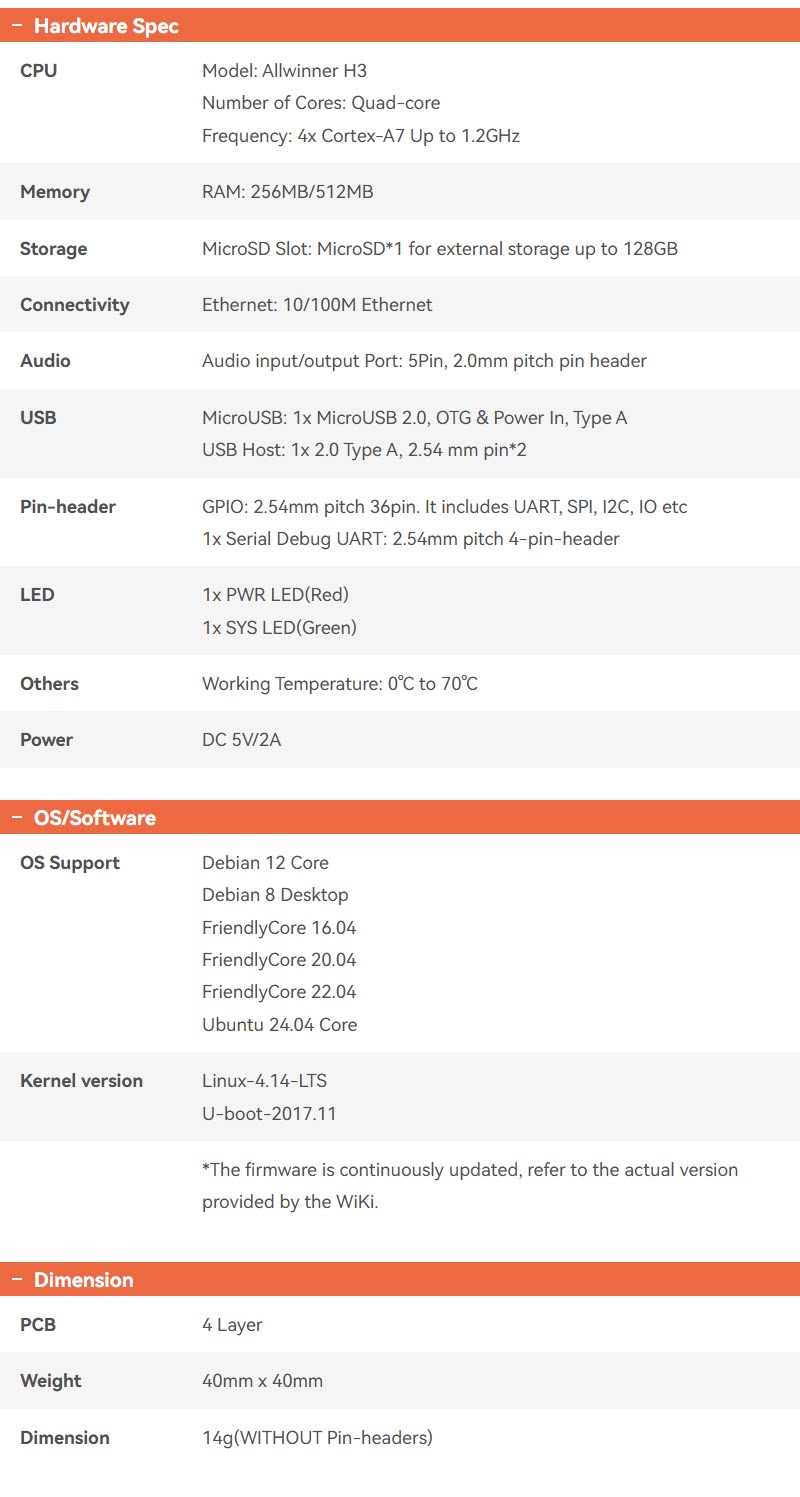

Processor: Allwinner H3, Quad-core Cortex-A7 up to 1.2GHz
Memory: 256MB/512MB DDR3 RAM
Storage: MicroSD slot, supports up to 128GB
Connectivity: 10/100Mbps Ethernet, MicroUSB (OTG & Power), USB 2.0 Host
Audio: 5-pin, 2.0mm pitch audio input/output header

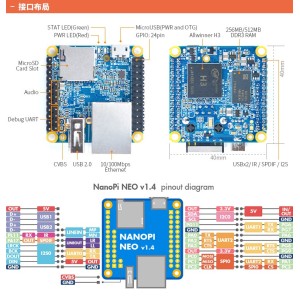

GPIO: 36-pin (2.54mm pitch), includes UART, SPI, I2C, IO
Debugging: 1x Serial Debug UART (4-pin header)
Indicators: 1x Power LED (Red), 1x System LED (Green)
Operating System Support: Debian 12 Core, Debian 8 Desktop, FriendlyCore 16.04 / 20.04 / 22.04, Ubuntu 24.04 Core, Armbian
Kernel: Linux 4.14 LTS, U-Boot 2017.11
Working Temperature: 0℃ ~ 70℃
Power Supply: DC 5V/2A via MicroUSB
Board Dimensions: 40mm × 40mm
Wiki & Tutorials: http://wiki.friendlyelec.com/wiki/index.php/NanoPi_NEO
System Firmware Downloads: https://dl.friendlyelec.com/nanopineo
Schematic (PDF): http://wiki.friendlyelec.com/wiki/images/f/fd/Schematic_NanoPi-NEO-V1.4-1801-20180320.pdf
Dimension Drawing (DXF): http://wiki.friendlyelec.com/wiki/index.php/File:Dimensional_NanoPi-NEO-V1.4_1801.rar
Compact yet powerful, the NanoPi NEO Standard Board is the perfect platform for your next Linux-based embedded or IoT project.
