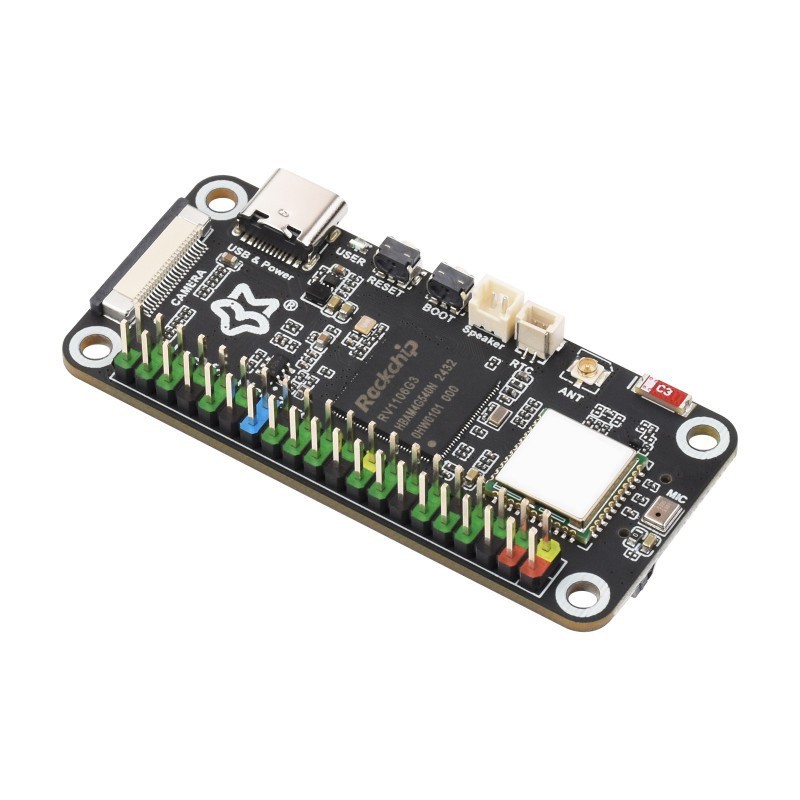

The Luckfox Pico Zero is a compact and cost-effective Linux micro development board built around the Luckfox RV1106G3 vision processor. Featuring a single-core ARM Cortex-A7 (32-bit) CPU and a Rockchip 4th-gen NPU with 1 TOPS AI computing power, it offers excellent performance for AI vision, edge computing, and embedded Linux applications.
With onboard 8GB eMMC storage, 256MB DDR3L DRAM, and integrated Wi-Fi 6 + Bluetooth 5.2 (LE), the Luckfox Pico Zero provides a robust platform for building intelligent IoT systems, machine vision devices, and HMI solutions. It supports a wide range of interfaces including MIPI CSI (up to 8MP input), GPIO, UART, SPI, I²C, TF card expansion, USB-C, and audio interfaces, making it highly versatile for developers.
More details: Luckfox Pico Zero Wiki
Luckfox Pico Zero Linux Micro Development Board, Based On Luckfox RV1106G3 Chip, 1 TOPS Computing Power, 8GB eMMC, With Wireless Module
Luckfox Pico Zero
The Luckfox Pico Zero is a cost-effective Linux micro development board, based On Luckfox RV1106G3 chip to provide a simple and efficient development platform for developers. Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, I2C and USB etc., with an onboard wireless module, which is ideal for a wide range of embedded applications.
Highly integrated and powerful performance
- Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS
- Built-in self-developed third-generation ISP3.2, supports 8-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
- Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from the camera are high-definition with a smaller size
- Built-in 16-bit 256MB DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
Wi-Fi 6 and Bluetooth module
Onboard 2.4GHz WiFi 6 and Bluetooth 5.2 (LE) Bluetooth Module
Providing Stable Connection And Efficient Transmission
Antenna Switching
Flexible Switching Between External Antenna and Onboard Antenna to meet more usage scenarios
MIPI CSI 4-lane Interface
Composed of dual MIPI-CSI (2-lane) interfaces
* for reference only, please refer to the Package Content for the detailed part list.
The resolution of the camera shown in the picture is 1280 × 1080. This product supports up to 3840 × 2160 (8M) @15FPS input.
Multiple Audio Interfaces
Onboard microphone + speaker header
meets a variety of audio application scenarios
meets a variety of application scenarios
Pin definition

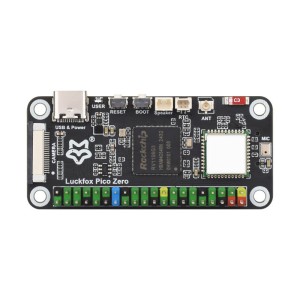

What's On Board
- RV1106G3
Vision processor SoC, integrates ARM Cortex-A7 core - USB-C Port
for power supply and program burning - USER-LED
for indicating system operating status in the default image - RESET Button
- BOOT Button
Press it when powering on or resetting to enter download mode - Speaker Header
MX1.25 2P connector, supports 8Ω 1W speaker. - RTC Battery Header
- External Antenna Connector
- Onboard Antenna
- Wi-Fi / Bluetooth Module
2.4GHz Wi-Fi 6 / Bluetooth 5.2 (LE) module - Onboard Microphone
- 40PIN GPIO Header
Compatible with some Raspberry Pi HATs - Camera Interface
MIPI CSI (4-lane) - TF Card Slot
Supports storage expansion only - 8GB eMMC
outline dimensions
Certificate of Authorization
Resources & Services
Key Features
Processor: RV1106G3 SoC with ARM Cortex-A7 (32-bit, with NEON & FPU)
NPU: Rockchip 4th-gen NPU, 1 TOPS (INT8), hybrid quantization (INT4/INT8/INT16)
ISP: 3rd-gen ISP 3.2, supports up to 8MP camera input with HDR, WDR, noise reduction
Memory: 256MB DDR3L DRAM
Storage: 8GB onboard eMMC + TF card slot for expansion
Connectivity:
Display & Camera: Dual 2-lane MIPI-CSI interfaces (4-lane total)
Audio: Onboard microphone + speaker header (supports 8Ω 1W speaker)
Power Supply: USB-C port for power & programming
I/O Expansion: 40-pin GPIO header (compatible with some Raspberry Pi HATs)
Other Interfaces: UART, SPI, I²C, RS485, CAN (via GPIO mapping)
Dimensions: Compact Linux dev board form factor
Applications
AI vision and edge computing projects
Smart cameras and embedded surveillance
Human-Machine Interfaces (HMI)
IoT and smart home applications
Robotics with AI vision capabilities
Portable AI-based devices
Package Includes
Why Choose Luckfox Pico Zero?
The Luckfox Pico Zero delivers high-performance AI vision, compact design, and flexible connectivity at an affordable cost. With Wi-Fi 6, Bluetooth 5.2, 8GB eMMC storage, and versatile interfaces, it is an excellent choice for developers, students, and professionals building AIoT and embedded Linux applications.
Start building powerful AI and IoT solutions with the Luckfox Pico Zero — compact, affordable, and designed for next-gen embedded development.
