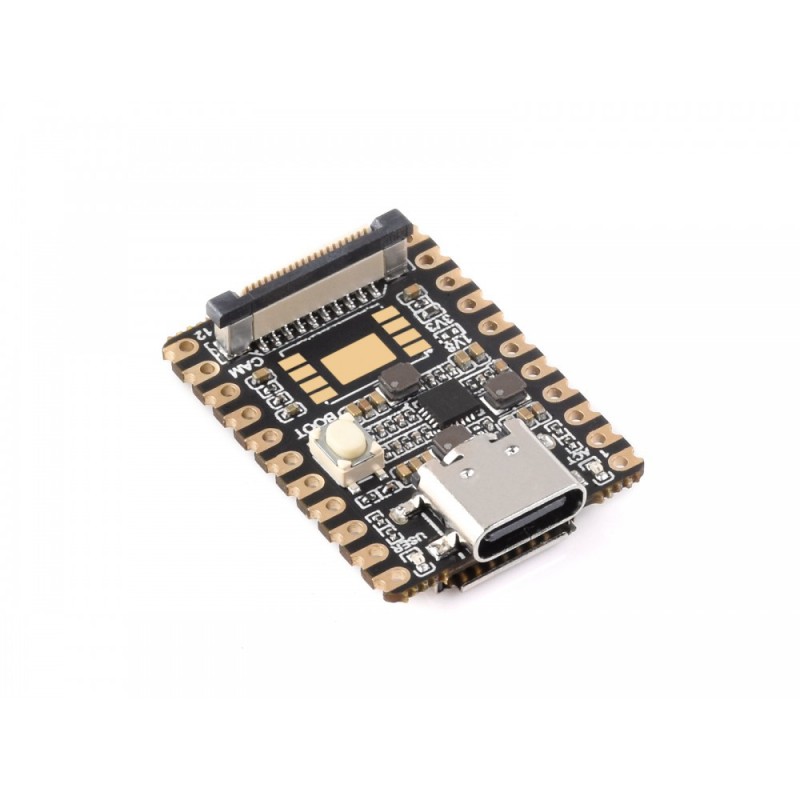

The Luckfox Pico Mini A is a compact, cost-effective Linux micro development board based on the Rockchip RV1103 processor. It offers developers a powerful and flexible platform for AI vision, robotics, and embedded Linux applications. Combining ARM Cortex-A7, RISC-V MCU, and a neural processing unit (NPU), the board delivers excellent computational performance while maintaining low power consumption.
Designed with an onboard 64MB DDR2 memory, the Luckfox Pico Mini A supports booting from a TF card (microSD) and features multiple interfaces including MIPI CSI, GPIO, UART, SPI, I2C, and USB Type-C for power and programming.
Key FeaturesProcessor: ARM Cortex-A7 @ 1.2GHz + RISC-V MCU
NPU: 0.5 TOPS, supports int4, int8, and int16 quantization
ISP: Built-in third-generation image signal processor (ISP3.2), supports up to 4-megapixel input @30fps with HDR, WDR, and multi-level noise reduction
Memory: 64MB DDR2 onboard
Storage: TF card slot (for Mini A); SPI NAND Flash (128MB) reserved pads for A version
USB: USB 2.0 Host/Device, Type-C connector for power and programming
Camera Interface: MIPI CSI 2-lane interface for camera input
GPIO: 17 × GPIO pins available for I/O and peripheral control
Boot Button: Press during power-on to enter download mode
LED Indicators:
ACT-LED – system operation indicator
USER-LED – user-controlled status light
Performance Highlights
Integrated NEON and FPU for efficient floating-point operations
Supports 250ms ultra-fast picture capture and AI model loading for real-time face recognition
Built-in RISC-V MCU for low-power control tasks
High-efficiency video encoding engine with adaptive bit-rate control — saves over 50% bandwidth compared to conventional encoding modes
Integrated audio codec, POR, and MAC PHY
Designed for fast AI and vision application prototyping
Specifications
| Parameter | Details |
|---|
| Processor | Rockchip RV1103 (Cortex-A7 @1.2GHz + RISC-V) |
| NPU | 0.5 TOPS (supports int4 / int8 / int16) |
| Memory | 64MB DDR2 |
| Storage | TF Card (Mini A version) |
| USB | USB 2.0 Host/Device (Type-C) |
| Camera Interface | MIPI CSI 2-lane |
| GPIO | 17 pins |
| ISP | 4M @30fps (Max) |
| Operating System | Embedded Linux |
| Power Supply | 5V via USB Type-C |
| Dimensions | Approx. 42 × 25 mm |
| Default Boot | TF card (MicroSD) |
Applications
AI vision and object recognition projects
Edge computing and smart IoT devices
Robotics and automation systems
Embedded Linux learning and prototyping
Smart cameras and streaming devices
Package Includes
1 ×
Luckfox Pico Mini A RV1103 Linux Development Board
