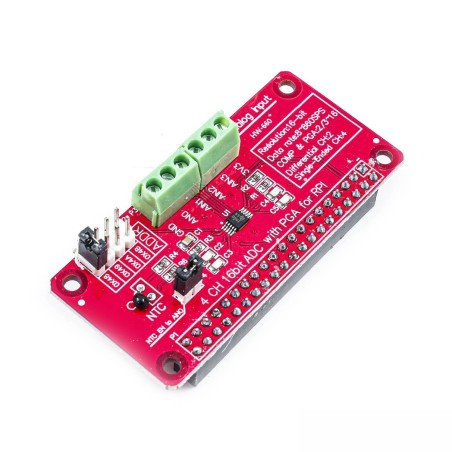

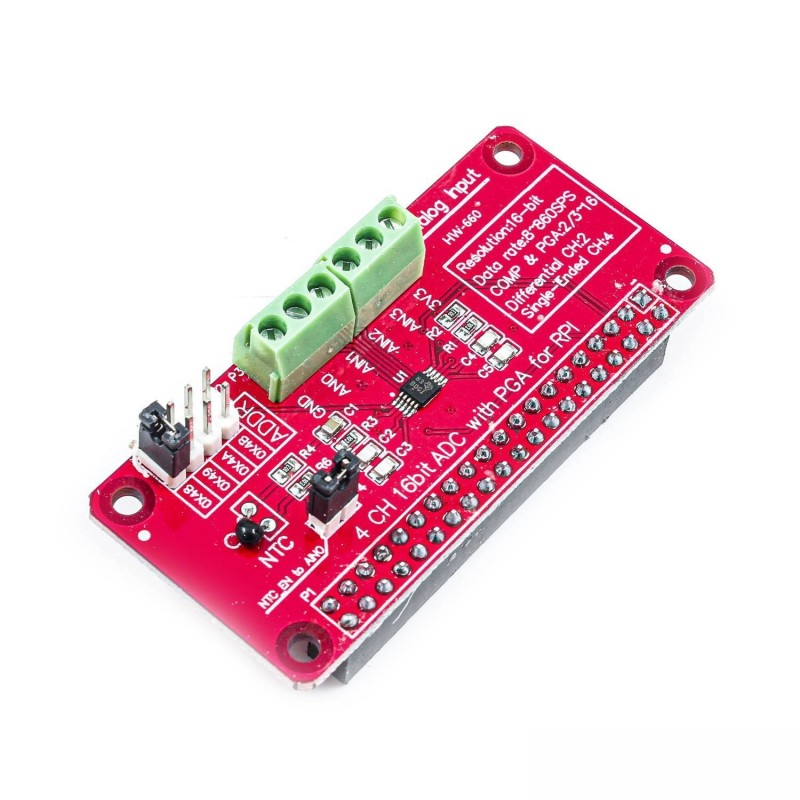

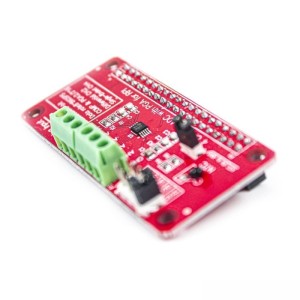

    ADS1115 4-Channel 16-Bit ADC Module for Raspberry Pi

    RBD-3803

    The ADS1115 4-Channel ADC Module is a precision 16-bit analog-to-digital converter designed for the Raspberry Pi. Featuring the ADS1115 chip, this module provides high-resolution sampling accuracy, making it ideal for projects requiring precise analog signal measurements.

    BDT 750
    BDT 750 BDT 750 BDT 750 BDT 750
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 750 Tax excluded
    BDT 750 Tax included
    BDT 0 Tax
    BDT 750 Tax excluded
    BDT 0 Tax
    BDT 750 Tax included
    Quantity
    8 Items

    2 people have purchased this item
    1 person recently added this item to the cart
    8 items in stock
    Description

    The ADS1115 4-Channel ADC Module is a precision 16-bit analog-to-digital converter designed for the Raspberry Pi. Featuring the ADS1115 chip, this module provides high-resolution sampling accuracy, making it ideal for projects requiring precise analog signal measurements.

    With its I²C-compatible serial interface, the module communicates seamlessly with Raspberry Pi boards (3/2/B+/A+), offering up to 4 single-ended or 2 differential inputs. It also includes a programmable gain amplifier (PGA), enabling accurate measurements across a wide range of signal levels.

    Compact and efficient, the ADS1115 ADC allows Raspberry Pi to capture analog signals from joysticks, NTC thermistors, temperature sensors, dust sensors, and more. With support for data rates up to 860 samples per second (sps) and flexible I²C addressing, this module is a must-have for sensor-based Raspberry Pi projects.

    Key Features

    • High Resolution: 16-bit sampling accuracy

    • Multi-Channel Input: 4 single-ended or 2 differential analog inputs

    • Programmable Gain Amplifier (PGA): Adjustable gain from 2/3× to 16× for different input ranges

    • I²C Interface: Simple communication with Raspberry Pi, selectable I²C address pins (up to 4 addresses)

    • Programmable Data Rate: From 8 sps to 860 sps

    • Low Power Consumption: Operates on 3.3V supply

    • Compact Design: Easy integration into Raspberry Pi projects

    Technical Specifications

    • Chip: ADS1115

    • Interface: I²C (selectable address by pin)

    • Channels: 4 single-ended or 2 differential inputs

    • Resolution: 16-bit

    • Programmable Gain Amplifier (PGA): 2/3× to 16×

    • Programmable Data Rate: 8–860 samples per second

    • Operating Voltage: 3.3V

    • Analog Input Voltage: VDD, GND

    • Size: 65.0 × 30.0 × 18.0 mm

    • Compatibility: Raspberry Pi 3/2/B+/A+

    Applications

    • Interfacing analog sensors with Raspberry Pi

    • Temperature and environmental monitoring

    • Joystick input capture

    • Dust, light, and other analog signal detection

    • Robotics and IoT projects requiring precise analog-to-digital conversion

     Upgrade your Raspberry Pi projects with the ADS1115 4-Channel 16-Bit ADC Module — precise, reliable, and perfect for sensor integration.

    Product Details
    RBD-3803
    8 Items

    Specific References

    EAN13
    3803
