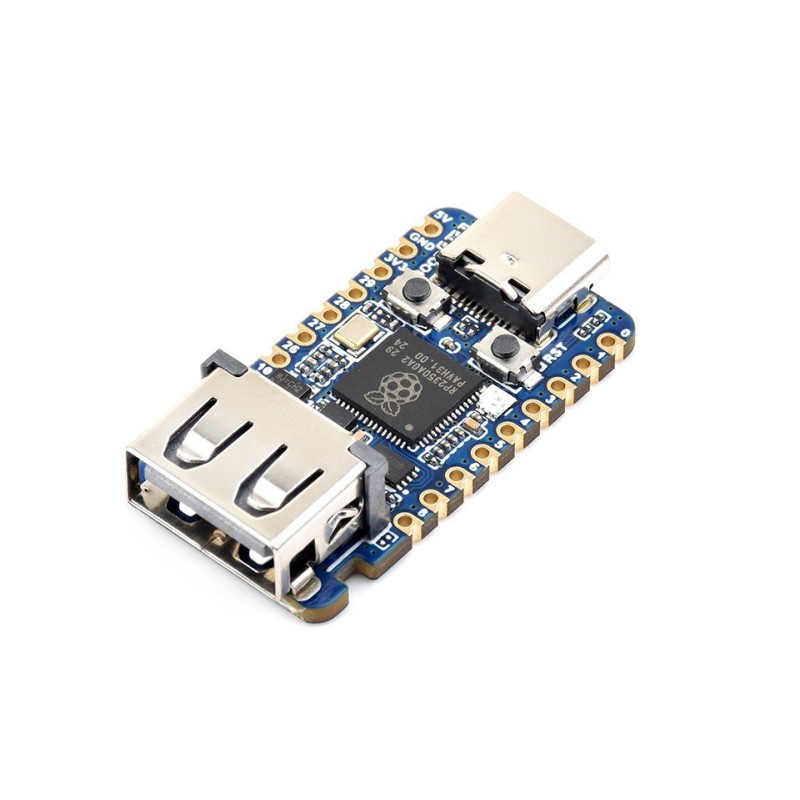

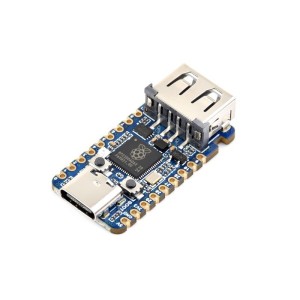

    Waveshare RP2350A USB Mini Development Board Based On Raspberry Pi RP2350A Robotics Bangladesh
    • Waveshare RP2350A USB Mini Development Board Based On Raspberry Pi RP2350A Robotics Bangladesh
    • Waveshare RP2350A USB Mini Development Board Based On Raspberry Pi RP2350A Robotics Bangladesh
    • Waveshare RP2350A USB Mini Development Board Based On Raspberry Pi RP2350A Robotics Bangladesh

    Waveshare RP2350A USB Mini Development Board Based On Raspberry Pi RP2350A

    RBD-3847
    Waveshare

    Waveshare RP2350A USB Mini Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller, 150MHz Operating Frequency

    BDT 1,380
    BDT 1,380 BDT 1,380 BDT 1,380 BDT 1,380
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,380 Tax excluded
    BDT 1,380 Tax included
    BDT 0 Tax
    BDT 1,380 Tax excluded
    BDT 0 Tax
    BDT 1,380 Tax included
    Quantity
    5 Items

    Only 5 items left in stock
    Description

    Waveshare RP2350A USB Mini Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller, 150MHz Operating Frequency
    RP2350-USB-A Mini Development Board

    Based On Raspberry Pi RP2350A, Onboard USB Ports

    Castellated module, suitable for SMD applications

    RP2350A USB Mini development board, front view RP2350A USB Mini development board, features
    Board specifications
    • RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
    • Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
    • 520KB of SRAM, and 2MB of onboard Flash memory
    • Type-C connector, keeps it up to date, easier to use
    • Castellated module allows soldering directly to carrier boards
    • USB 1.1 with device and host support
    • Onboard 1x USB Type A expansion port via PIO, compatible with USB 2.0/1.1 transmission
    • Low-power sleep and dormant modes
    • Drag-and-drop programming using mass storage over USB
    • Adapting 15 × multi-function GPIO pins
    • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 14 × controllable PWM channels
    • Accurate clock and timer on-chip
    • Temperature sensor
    • Accelerated floating-point libraries on-chip
    • 12 × Programmable I/O (PIO) state machines for custom peripheral support

    Supports C/C++, Arduino IDE

    Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

    RP2350A USB Mini development board, support C/C++, Arduino

    dual-core, dual-architecture

    Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz

    RP2350A USB Mini development board, onboard Dual-Core Arm processor
    15 × multi-function GPIO pins

    configurable pin function, allows flexible development and integration

    RP2350A USB Mini development board, onboard multi-function GPIO pins

    What's On Board
    RP2350A USB Mini development board, onboard components
    1. USB 2.0 Type A connector
      Supports USB host or device via PIO
    2. BOOT button
      Press it when resetting to enter download mode
    3. RESET button
    4. RP2350A
      Dual-core and dual-architecture design, up to 150 MHz operating frequency

    1. WS2812
      cool RGB LED
    2. RT9013-33GB
      500mA LDO regulator, low noise, ultra-fast response
    3. W25Q16JVUXIQ
      2MB NOR-Flash
    4. USB Type-C connector
      for programming, USB 1.1 with device and host support

    outline dimensions
    RP2350A USB Mini development board, outline dimensions
