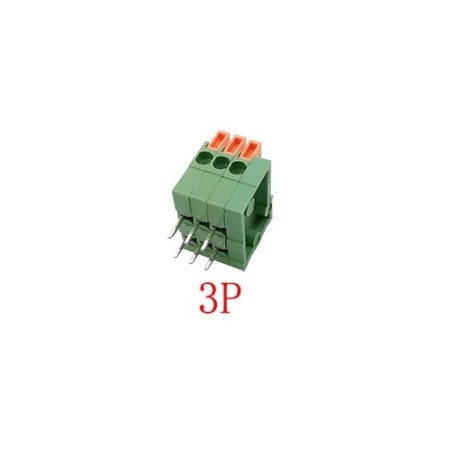

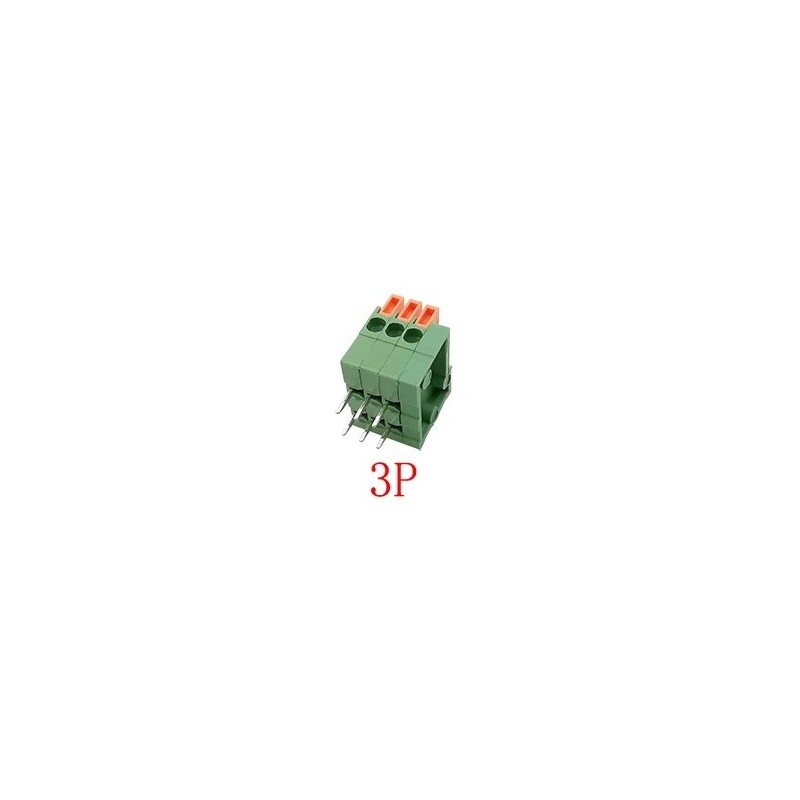

    KF141R 2.54mm Right Angle PCB Spring Terminal Block 3Pin

    RBD-4057

    The KF141R 2.54mm 3P right angle PCB spring terminal block is a compact, screwless connector designed for reliable wire termination on printed circuit boards. Featuring a push-in spring clamp mechanism and bent foot design, it enables side-entry wiring while saving vertical space on the PCB. This connector is ideal for low-voltage signal and control applications where secure and fast wiring is required.

    BDT 33
    BDT 33 BDT 33 BDT 33 BDT 33
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 33 Tax excluded
    BDT 33 Tax included
    BDT 0 Tax
    BDT 33 Tax excluded
    BDT 0 Tax
    BDT 33 Tax included
    Quantity
    25 Items

    25 items in stock
    Description

    Product Description
    The KF141R 2.54mm 3P right angle PCB spring terminal block is a compact, screwless connector designed for reliable wire termination on printed circuit boards. Featuring a push-in spring clamp mechanism and bent foot design, it enables side-entry wiring while saving vertical space on the PCB. This connector is ideal for low-voltage signal and control applications where secure and fast wiring is required.

    Key Features
    2.54mm pitch PCB terminal block
    3-pole push-in spring clamp
    Right angle bent foot design
    Tool-free wire insertion
    Stable and vibration-resistant connection

    Technical Specifications
    Model KF141R
    Pitch 2.54 mm
    Number of Poles 3P
    Rated Voltage 150V
    Rated Current 2A
    Instantaneous Current 2.5A
    Wire Size 0.1 to 1.0 mm²
    Insulation Material PA66
    Flame Retardant Grade UL94-V0
    Operating Temperature -40 to 105°C
    Mounting Type Through-hole PCB, right angle

    Applications
    Control boards
    Microcontroller PCBs
    Signal wiring
    Automation electronics

    Package Includes
    1 pcs KF141R 2.54mm 3P PCB Spring Terminal Block

    Product Details
    RBD-4057
    25 Items

    Specific References

    EAN13
    4057
