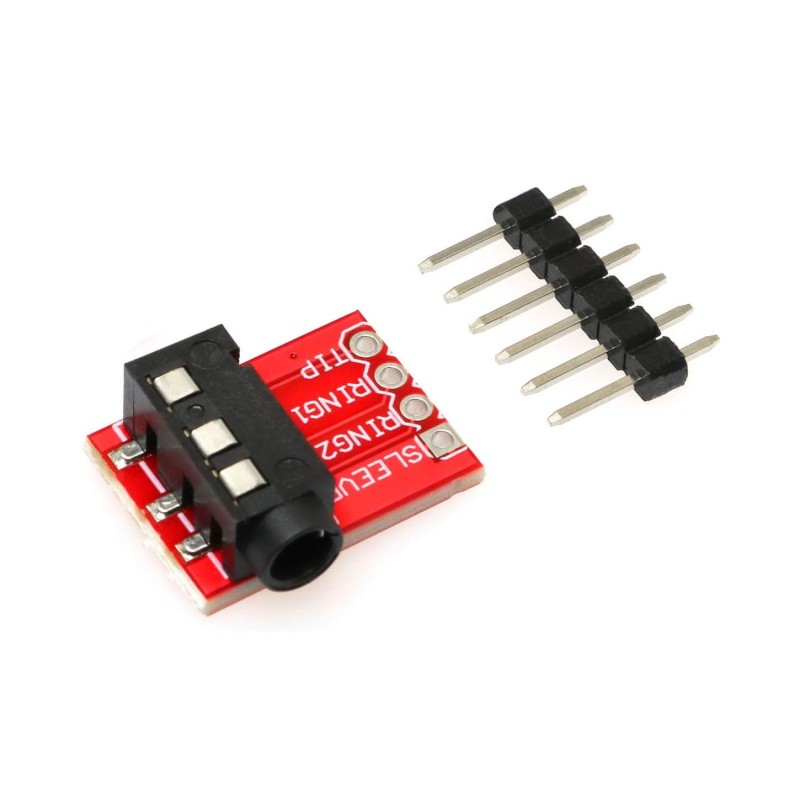

    3.5mm TRRS Audio Jack Breakout

    RBD-3362

    • 3.5mm TRRS Audio Jack Breakout for breadboard prototyping
    • Converts TRRS socket to 4-pin header interface
    • Supports Left / Right / Mic or Video + Ground
    • Compatible with both TRRS and TRS male plugs
    • Compact 18x14mm PCB design
    • Ideal for audio, multimedia, and embedded projects
    BDT 70
    BDT 70 BDT 70 BDT 70 BDT 70
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 70 Tax excluded
    BDT 70 Tax included
    BDT 0 Tax
    BDT 70 Tax excluded
    BDT 0 Tax
    BDT 70 Tax included
    Quantity
    In-Stock
    28 Items

    19 people have purchased this item
    1 person recently added this item to the cart
    28 items in stock
    Description

    The 3.5mm TRRS Audio Jack Breakout is a compact adapter board that makes it easy to interface TRRS audio connectors with breadboards and prototype PCBs. This breakout exposes all four connections—Tip, Ring1, Ring2, and Sleeve—through a convenient 1x4 header. TRRS connectors typically carry Left audio, Right audio, Microphone or Video signal, and Ground. Moreover, the socket remains compatible with standard TRS plugs. In that case, both Sleeve and Ring2 connect to ground, while Tip and Ring1 carry the left and right audio channels. Because of its small 18x14mm PCB size, this module integrates smoothly into DIY electronics, audio interface circuits, and microcontroller-based projects. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Standard 3.5mm TRRS female audio socket

    2. Breaks out Tip, Ring1, Ring2, and Sleeve to 4-pin header

    3. Compatible with both TRRS and TRS plugs

    4. Clearly defined audio channel mapping

    5. Compact PCB suitable for embedded projects

    6. Easy soldering and breadboard integration

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. DIY headphone and microphone interface projects

    2. Audio signal processing experiments

    3. Microcontroller-based audio input/output systems

    4. Multimedia and embedded electronics prototypes

    5. Educational electronics demonstrations

    6. Custom audio adapter development

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    Product Type3.5mm TRRS Audio Jack Breakout
    Connector Type3.5mm TRRS Female Socket
    Termination Style1 x 4 Header
    Signal PinsSleeve, Ring2, Ring1, Tip
    SleeveGround
    Ring2Microphone / Video (Ground in TRS)
    Ring1Audio Right Channel
    TipAudio Left Channel
    PCB Dimensions18 × 14 mm
    Country of OriginChina
    Shipment Weight0.016 kg
    Shipment Dimensions2 × 2 × 2 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x 3.5mm TRRS Audio Jack Breakout

    1×4 Male header

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-3362
    28 Items

    Specific References

    EAN13
    3362
