Reference: RBD-0837
Banner

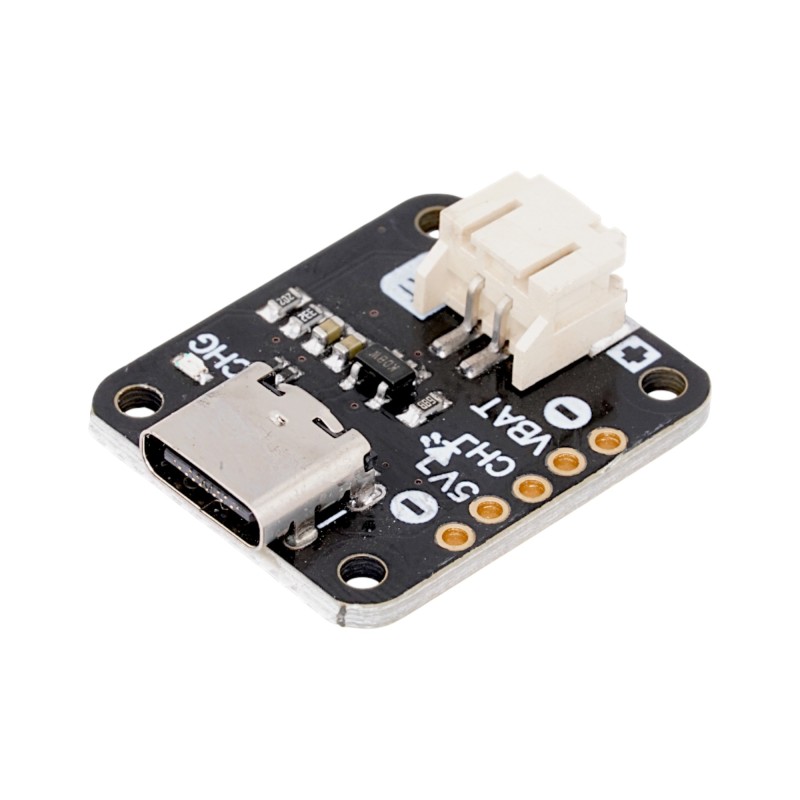

LiPo Amigo is a compact USB-C battery charging module designed for safely charging 3.7V LiPo or Li-Ion batteries. The board features a simple, reliable design with a USB-C input on one side and a JST-PH 2-pin battery connector on the other, making it ideal for embedded projects, prototypes, and compact electronics.
LiPo Amigo is a compact USB-C battery charging module designed for safely charging 3.7V LiPo or Li-Ion batteries. The board features a simple, reliable design with a USB-C input on one side and a JST-PH 2-pin battery connector on the other, making it ideal for embedded projects, prototypes, and compact electronics.
A built-in charging indicator LED provides clear visual feedback during charging. The module comes fully assembled and requires no configuration to operate.
USB-C powered LiPo / Li-Ion battery charger
Supports single-cell 3.7V LiPo and Li-Ion batteries
Compact, stamp-sized PCB
JST-PH 2-pin battery connector
Onboard charging status LED
Fully assembled and ready to use
Simple and reliable charging solution for small devices
| Parameter | Specification |
|---|---|
| Charger IC | MCP73831 |
| Charging Current | 200mA default (up to 500mA via solder jumper) |
| Input Connector | USB Type-C |
| Battery Connector | JST-PH 2-pin |
| Battery Type | 3.7V LiPo / Li-Ion |
| Charge Indicator | Red LED |
| Dimensions | 26 × 21 × 7 mm |
| Assembly | Fully assembled |
Designed only for 3.7V LiPo or Li-Ion batteries
Batteries should have internal protection circuitry
Polarity must be verified before connecting a battery
Optional solder pad allows higher charge current (not recommended for unprotected batteries)
Small embedded systems
Handheld devices
Prototyping and development boards
Portable electronics
Educational projects
1 × LiPo Amigo USB-C Battery Charger Module
