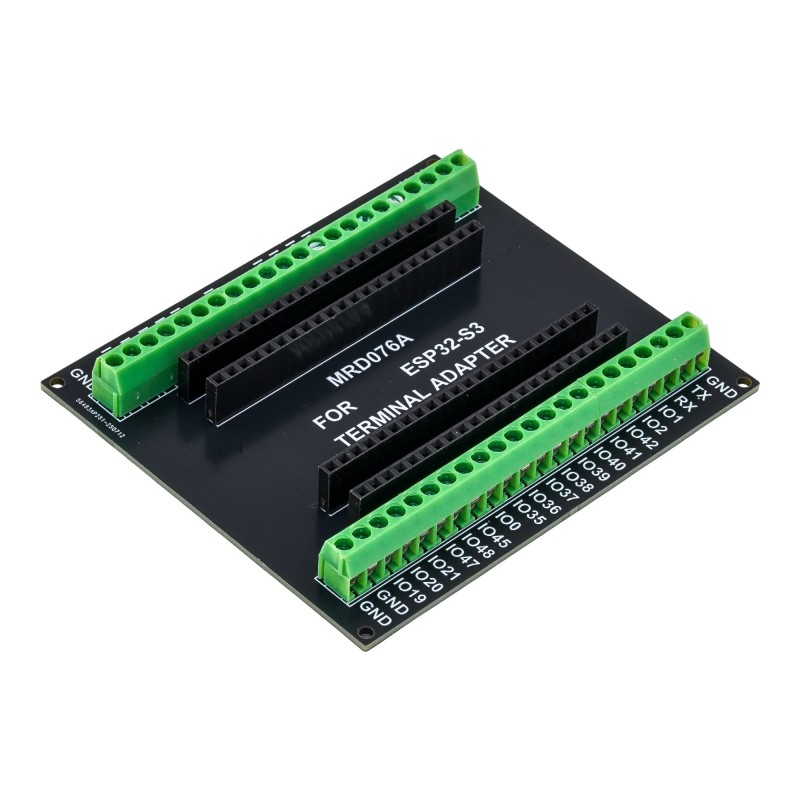

    ESP32-S3 GPIO Terminal Expansion Board

    RBD-4136

    Compatible with ESP32-S3 N8R2 and N16R8 Modules

    This ESP32-S3 GPIO terminal expansion board is designed to simplify wiring and GPIO access for ESP32-S3 development boards, including N8R2 and N16R8 variants. It converts the ESP32-S3 pin headers into clearly labeled screw terminals, making it easier to connect sensors, actuators, and external peripherals without soldering.

    The board uses a dual-layer PCB layout with connectors on both sides, providing stable signal routing and reliable mechanical support for development, testing, and prototyping.

    BDT 550
    BDT 550 BDT 550 BDT 550 BDT 550
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 550 Tax excluded
    BDT 550 Tax included
    BDT 0 Tax
    BDT 550 Tax excluded
    BDT 0 Tax
    BDT 550 Tax included
    Quantity
    38 Items

    3 people have purchased this item
    1 person recently added this item to the cart
    38 items in stock
    Description

    ESP32-S3 GPIO Terminal Expansion Board

    Compatible with ESP32-S3 N8R2 and N16R8 Modules

    Product Overview
    This ESP32-S3 GPIO terminal expansion board is designed to simplify wiring and GPIO access for ESP32-S3 development boards, including N8R2 and N16R8 variants. It converts the ESP32-S3 pin headers into clearly labeled screw terminals, making it easier to connect sensors, actuators, and external peripherals without soldering.

    The board uses a dual-layer PCB layout with connectors on both sides, providing stable signal routing and reliable mechanical support for development, testing, and prototyping.

    Key Features
    Provides easy access to all ESP32-S3 GPIO pins using screw terminals
    Dual-layer PCB design for improved stability and reliability
    Each GPIO pin can be expanded into two terminals for flexible reuse
    Clear pin labeling for quick identification and reduced wiring errors
    No soldering required for peripheral connections

    Electrical and Mechanical Specifications
    PCB material: FR-4
    PCB layers: 2-layer design
    PCB thickness: 1.6 mm
    Board dimensions: approximately 73 mm x 84.5 mm x 10 mm

    Compatibility
    ESP32-S3 N8R2 modules
    ESP32-S3 N16R8 modules
    Other ESP32-S3 boards with matching pin layout

    Typical Applications
    ESP32-S3 IoT development and prototyping
    Sensor and actuator integration
    Educational and laboratory projects
    Rapid testing and debugging setups
    Industrial control and automation prototypes

    Package Contents
    One ESP32-S3 GPIO terminal expansion board

    Product Details
    RBD-4136
    38 Items

    Specific References

    EAN13
    4136
