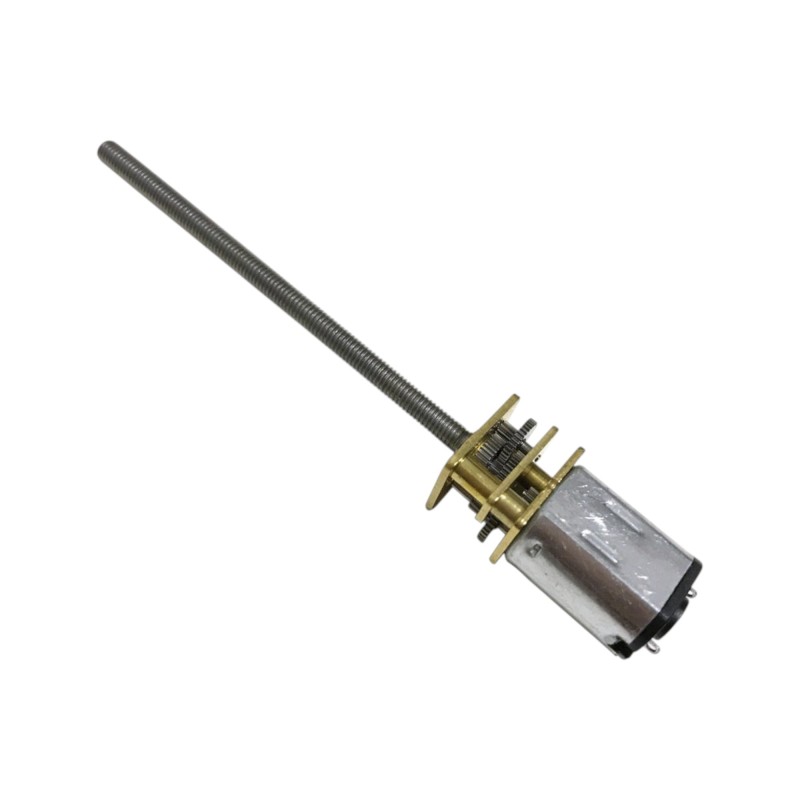

The GA12 N20 Motor M3x55 100RPM Longer Threaded Spindle is a precision micro gear motor designed for applications that require controlled speed and linear motion. Operating at 12V DC, this motor delivers a stable 100 RPM output while maintaining low power consumption, making it highly efficient for continuous operation. The extended M3 threaded spindle allows direct conversion of rotational motion into linear movement, which is especially useful in door lock mechanisms, actuators, and compact automation systems. Thanks to its metal gearbox, improved bearing quality, and compact N20 form factor, this motor fits easily into tight spaces while providing reliable torque and long service life. It integrates smoothly with motor drivers and controllers commonly used in robotics and DIY projects available from RoboticsBD. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Long M3x55 threaded output shaft for linear actuation applications
Consistent 100 RPM no-load speed for precise motion control
Wide torque range suitable for locking and lifting mechanisms
Low no-load current ensures energy-efficient operation
Metal gearbox improves durability and load-handling capacity
Compact and lightweight design for space-constrained systems
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Electronic and smart door lock mechanisms
Linear actuators for home appliances
Bicycle accessories and mechanical adjusters
DIY automation and mechatronics projects
Robotics systems requiring threaded shaft motion
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model Number | GA12-N20M355 |
| Motor Type | N20 Micro Gear Motor |
| Rated Voltage | DC 12V |
| No-Load Speed | 100 RPM |
| No-Load Current | 30 mA |
| Torque Range | 0.3 – 3.3 kg·cm |
| Stall Current | 0.7 A |
| Output Shaft | M3 Threaded Spindle |
| Spindle Length | 55 mm |
| Motor Weight | Approx. 19 g |
| Application Type | Linear motion / locking systems |
| Shipment Weight | 0.013 kg |
| Shipment Dimensions | 10 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x GA12 N20 Motor M3x55 100RPM Longer Threaded Spindle
