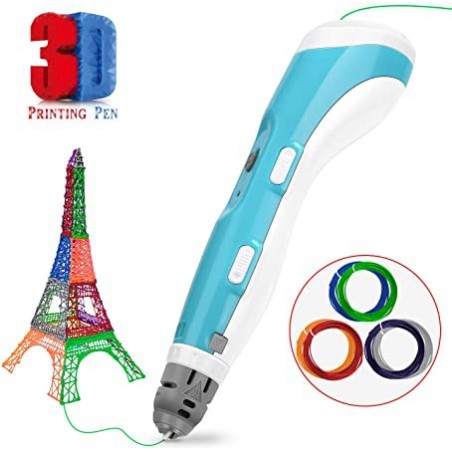

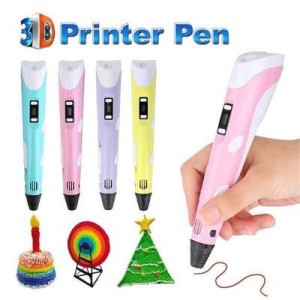

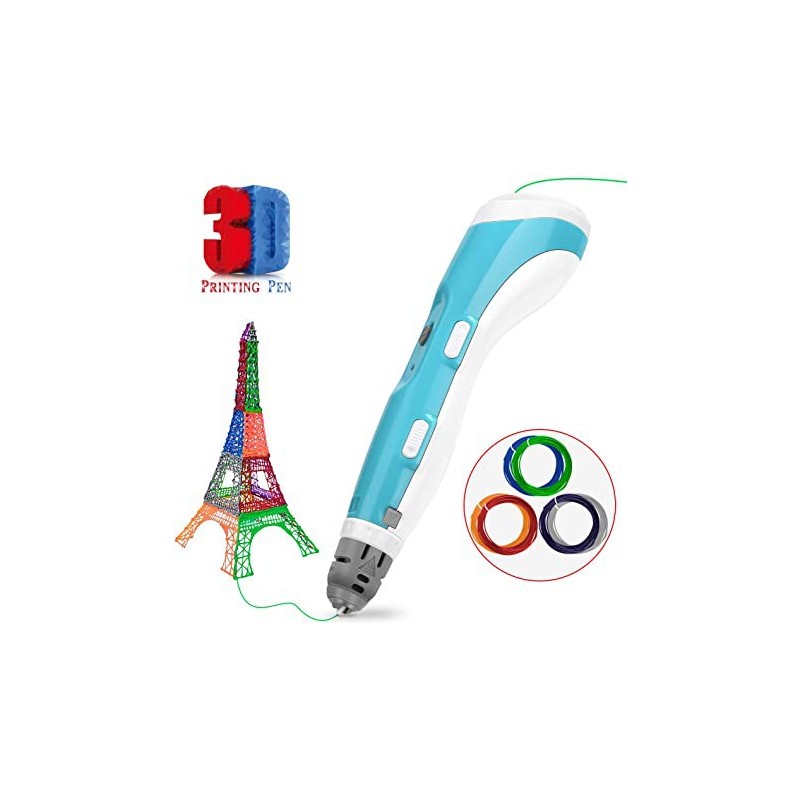

The 3D Printing Pen is used to draw and create is here, the 3D Printing Pen has arrived and is ready to kick-start your creative side.
As the 3D Pen draws, it extrudes heat plastic, which quickly cools and solidifies into a strong stable structure. This allows you to build an infinite variety of shapes and items with ease! Even in mid-air. Most people will instantly be able to trace objects on paper, and after only a few hours of practice, you will be able to make far more intricate objects. RoboticsBD
To power the 3D pen, you will require a separate 5V 2A USB charger (Not Included).
Please check Raspberry Pi 5V Power Supply Adapter Micro USB.
If you use a low-cost charger adapter, it will not function properly as it requires a minimum of 2A
Every 3d pen will be checked and tested in our lab before shipping.
What can I make with a 3D Pen? Pretty much anything; there are many ways the 3D Pen can be used. You can create flat forms and then peel it off the piece of paper, as freestyle 3D objects, or in separate parts, ready to be joined together using the 3D Pen. The creative opportunities are endless. Just google 3D pen for some great ideas and getting your creative juices flowing. RoboticsBD
After the plastic filament his heated in the pen, the user simply moves the pen in any plane or direction to create a particular design. The filament then rapidly cools once it has been put into place, making sturdy objects capable of standing alone.
The product is being targeted at professionals such as architects and designers so they can quickly and efficiently make 3D models of their ideas and can alter the creation more easily than with a traditional 3D printer. Featured By RoboticsBD.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Please use a good quality 5v 2A Power adapter or Power bank.
Features :
- This 3D Pen is designed for the freehand drawing of 3-Dimensional objects
- 0.7 mm Nozzle and Uses ABS 1.75mm ABS/PLA Material
- Ergonomic design for optimum handling
- Adjustable output speed, temperature
- In many paint colors: filament is changed easily by pressing a button
- LED indicator to check the operating temperature
- Create projects horizontally or vertically
- Embellish and personalize crafts or use to repair and modify 3D prints
- Suitable for families and crafts
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Specification:
- Discharging Mode: Hot Melt Extrusion Molding
- Molding: Three-Dimensional Molding
- Print Range: Unlimited
- Spinning Speed: Adjustable
- Temperature:160 Degree - 190 Degree Adjustable
- Working Voltage :5V 2A
- The Nozzle Diameter: 0.4mm
- Printing consumable items : 0.07--0.86 cm*3 /minute adjustable
- Printing Consumable Temperature: ABS 210 Degree PLA 170 Degree
- Melting temp of material: ABS-210C PLA-170C
- Pen electric spec: DC 5V 2A
- The DC head diameter: 5.5mm*2.5mm
- Net weight:60g
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Design:
Power hole/feed empty: Personalized design, convenient operation.
Display: You can always view, and adjust the temperature.
Step-less speed change: With one hand to complete the adjustment, step-less speed.
Vents: Fanless design, quiet cooling, high efficiency.
Entrance/exit key: Side design, one-handed operation, simple and convenient.
Nib: Use the maximum temperature reached 60 °, will not cause burns, easy of use.
| General Specification |
| Voltage(V) | 100-240 (AC) |
| Temperature(°C) | 160-230 |
| Filament | PLA/ABS |
| Filament Diameter (mm) | 1.75 |
| Length (mm) | 190 |
| Width (mm) | 30 |
| Weight(gm) | 60 |
| Shipment Weight | 0.300 kg |
| Shipment Dimensions | 21× 16 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
No box is included with the package.
Documentation:
How to use:
Please follow the step to use the 3d pen correctly. You need to have a good quality 5v 2A USB power adapter. There is no battery inside so if you want to use the 3d pen as portable please use a good quality power bank which can supply 5V 2A.
Step 1:
Step 2:
Step 3:
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x 3D Printing Pen.
1 x USB Cable
1 x User Manual and ideabook
