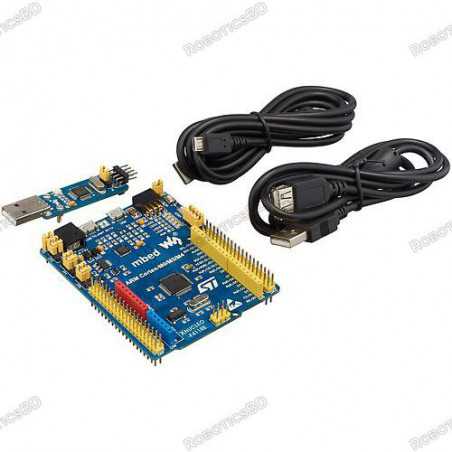

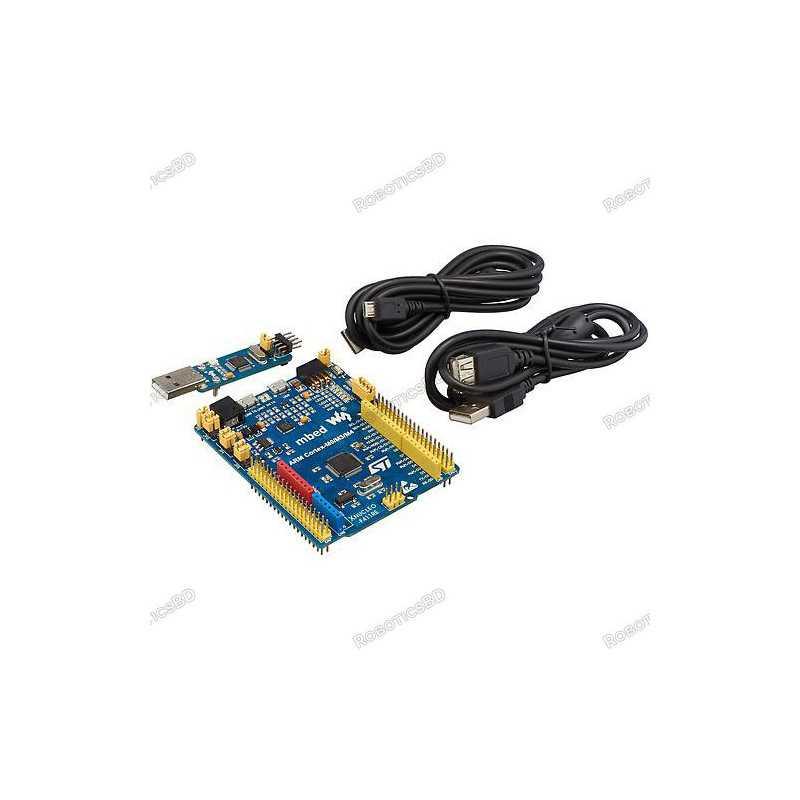

Waveshare XNUCLEO-F103RB, Improved STM32 NUCLEO Board. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Arduino compatibility | XNUCLEO can be configured by jumper to compatible with UNO (default) or Leonardo |
Arduino ICSP interface | ICSP is required by certain kinds of shields |
USB connectivity | The USB connector of NUCLEO is for debugging ONLY, not available for USB connection |
USB connector | Micro USB is the advanced USB standard |
Morpho headers mark | Now you can check the PCB mark instead of datasheet |
Common interfaces are connected via | Jumpers are much easier to use, need no soldering |
UART debugging | The NUCLEO integrated ST-LINK/V2 functional chip can be simulated as serial port, however, it's not available while in-circuit debugging, whereas XNUCLEO features a stand-alone USB TO UART chip. |
8MHz crystal | Timer is more accurate when using external 8MHz crystal |
32.768KHz crystal | Required for RTC |
USB fuse | The computer USB interface might be harmed without fuse |
LEDs | The more LEDs, the easier to monitor program running status |
UART indicator | Data communication is visible now |
DC input | A convenience |
Button position | The button won't be untouchable when connecting with an Arduino shield if it were close to the PCB edge |
ST-LINK | ST-LINK can be used anywhere else |
Shipment Weight | 0.210 kg |
Shipment Dimensions | 14 × 14 × 4.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x XNUCLEO-F411RE - Improved STM32 NUCLEO Board.
