STM32F411CEU6 - BlackPill v3.1 Development Board WeAct Studio

RBD-2662

BlackPill version 3.1 board equipped with STM32F411CEU6 microcontroller, USB type C connector, additional user programmable button, LED, built-in RTC clock, 16-channel A/D converter. It has 512 kB of Flash memory and 128 kB of SRAM memory. Popular SPI, I2C, USART and SDIO interfaces are also available. Included with the board are 2 20-pin goldpin strips and a 4-pin strip.

BDT 754.00
BDT 754.00 BDT 754.00 BDT 754.00 BDT 754.00
Tax included Tax excluded Tax included Tax excluded
BDT 754.00 Tax excluded
BDT 754.00 Tax included
BDT 0.00 Tax
BDT 754.00 Tax excluded
BDT 0.00 Tax
BDT 754.00 Tax included
Quantity
23 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Product description: BlackPill v3.1 development board with STM32F411CEU6 microcontroller - WeAct Studio

BlackPill version 3.1 development board is equipped with STM32F411CEU6 microcontroller, USB type C connector, additional user programmable button, LED, built-in RTC clock, 16-channel A/D converter. It has 512 kB of Flash memory and 128 kB of SRAM memory. Popular SPI, I2C, USART and SDIO interfaces are also available. Included with the board are two 20-pin goldpin strips and a 4-pin strip. The board can be programmed using external SWD programmer or with USB-UART converter (not included) and a bootloader preloaded on the microcontroller. Operating mode is configured using BOOT button. BlackPill can be programmed in MicroPython and Arduino.

Płytka rozwojowa BlackPill v3.1 z mikrokontrolerem STM32F411CEU6 - WeAct Studio

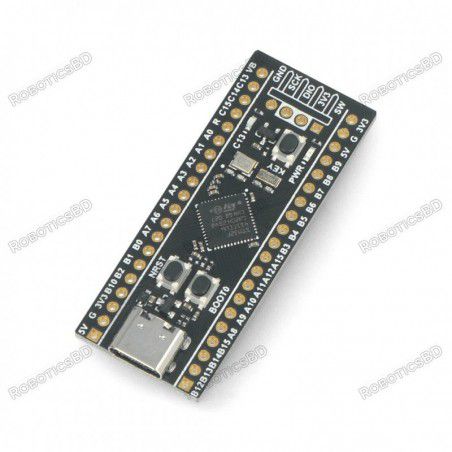

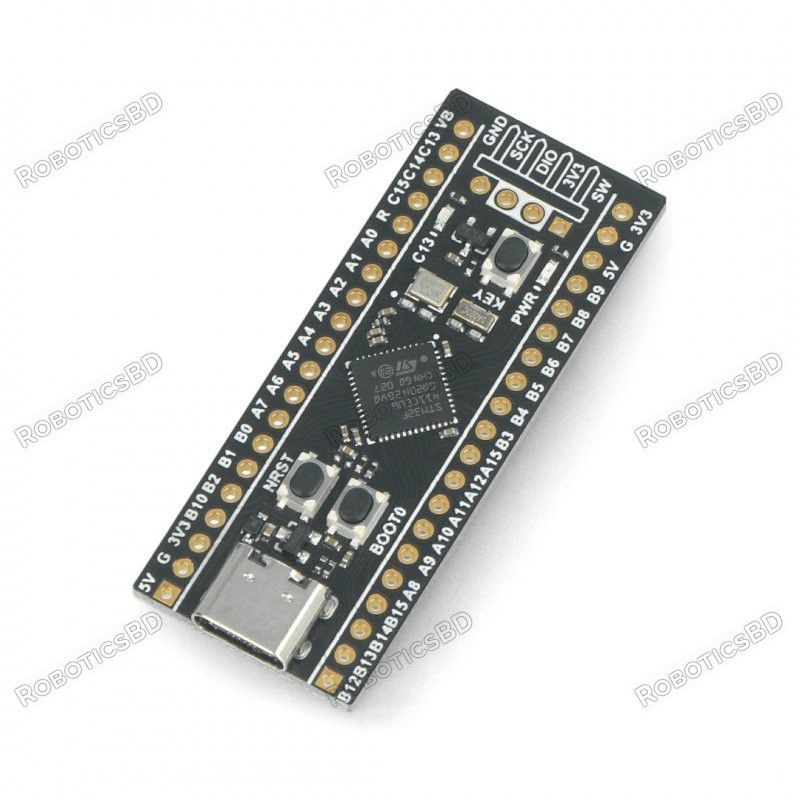

BlackPill v3.1 development board with STM32F411CEU6 microcontroller - WeAct Studio.

Dokładne wymiary płytki BlackPill


Exact dimensions of the BlackPill board.



I/O pins on BlackPill board.

BlackPill board specification

  • STM32F411CEU6 100 MHz microcontroller
  • Core: ARM CORTEX M4 32-bit with FPU support
  • 25 MHz quartz oscillator and 32.768 kHz 6PF low speed quartz oscillator
  • Version V3.1
  • I/O interface 2 x 20 pin
  • Interface support:
    • 3 x USART
    • 3 x I2C
    • 5 x SPI
    • 1 x USB
  • Buttons:
    • reset key
    • BOOT0 button
    • User (PA0) key
    • NRST reset key
  • Use of latest original ST chip
  • Flash memory: 512 kB
  • SRAM: 128 kB
  • Supply voltage: 3.3 V to 5 V
  • Port: USB type C
  • SWD debugging connector
  • Power and user LED
  • Gold plated pins
  • Support for MicroPython programming with MicroPython software available
  • Support for Arduino and C programming
  • Dimensions: 53 x 21 x 5 mm

Kit contents

  • BlackPill v3.1 development board with STM32F411CEU6 microcontroller
  • 2 x goldpin 20-pin strip with 2.54 mm pitch
  • 1 x goldpin 4-pin raster 2,54 m
Product Details
RBD-2662
23 Items

Specific References

EAN13
2662
