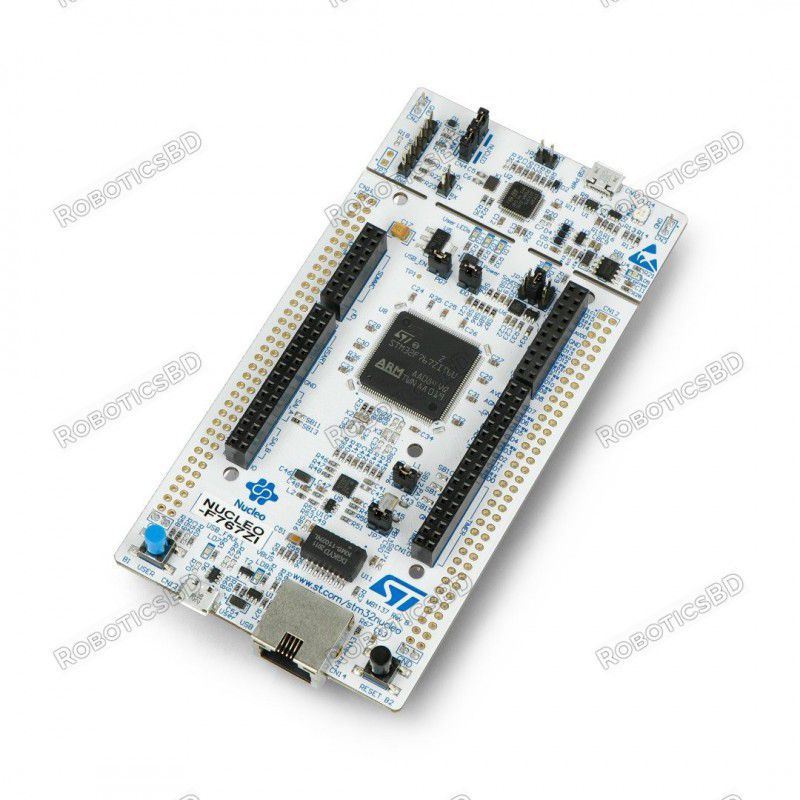

STM32 NUCLEO-F767ZI - STM32F767ZIT6 ARM Cortex M7 Development Board

Specification

• Microcontroller: STM32F767ZIT6

  • Core: ARM Cortex M7 32-bit
  • Clock frequency: 216 MHz
  • Flash memory: 2 MB
  • RAM: 512 KB
  • Analog-to-digital converter (ADC): 12-bit, 24 channel
  • Digital-to-analog converter (DAC): 12-bit, 2-channel
  • The number of 16-bit Timers: 12
  • The number of 32-bit Timers: 2
  • Interfaces: 4x I2C, 6x SPI, 3x I2S, 3x CAN, 4x USART, 4 UART, USB OTG
  • Ethernet connector (it may not work correctly, the details inthe documentation, page 18)
• Two types of connectors:
  • Connectors forcompatible caps with Arduino Uno Rev3
  • Standard pins STMicroelectronics Morpho to access the leads of the microcontroller
• The module is compatible with the system mbed (mbed.org)
• The debugger ST-Link/V2 is placed on the board with the possibility to work as a standalone device with the SWD output
• The ability to power through USB connector
• Three Embedded LEDs:
  • 1 x for indication of supply voltage
  • 1 x indicator of connection
  • 1 x at user disposal
• Two buttons:

  • 1 x RESET
  • 1 x at user disposal
• Three different interfaces via the connectormicroUSB(USB re-enumeration):
  • Virtual COM port
  • Mass memory
  • Port for programming/debugging
• The module supported by most of the popular environments, i.a.: IAR, Keil and the platforms based on GCC compiler
• Module dimensions: 135 x 70 x 18 mm

A detailed description can be found in thedocumentationand onthe website of the manufacturer.

Nucleo allows for the implementation of projects based on efficient microcontroller with 32-bit core ARM Cortex. The modules are compatible withArduino caps and with the system of the compiler on-linembed.org. Nucleo works with most popular programming platforms, including Keil, IAR and environments, based on the GCC compiler.
