ESP32-S3 Development Board with 1.28inch Round Touch LCD Robotics Bangladesh
  • ESP32-S3 Development Board with 1.28inch Round Touch LCD Robotics Bangladesh
  • ESP32-S3 Development Board with 1.28inch Round Touch LCD Robotics Bangladesh
  • ESP32-S3 Development Board with 1.28inch Round Touch LCD Robotics Bangladesh

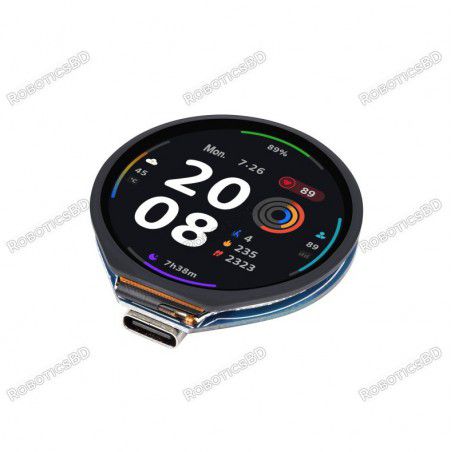

ESP32-S3 Development Board with 1.28inch Round Touch LCD

RBD-2770
Waveshare

ESP32-S3 Development Board, with 1.28inch Round Touch LCD, Compact size, Accelerometer And Gyroscope Sensor

SKU: 25098
Part Number: ESP32-S3-Touch-LCD-1.28
Brand: Waveshare

BDT 4,390.00
BDT 4,390.00 BDT 4,390.00 BDT 4,390.00 BDT 4,390.00
Tax included Tax excluded Tax included Tax excluded
BDT 4,390.00 Tax excluded
BDT 4,390.00 Tax included
BDT 0.00 Tax
BDT 4,390.00 Tax excluded
BDT 0.00 Tax
BDT 4,390.00 Tax included
Quantity
5 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

ESP32-S3 Development Board, With 1.28inch Round Touch LCD, Compact Size, Accelerometer And Gyroscope Sensor
ESP32-S3-Touch-LCD-1.28

Embedded GC9A01 Display Driver And CST816S Capacitive Touch Control Chip

 ESP32-S3-Touch-LCD-1.28-details-1.jpg ESP32-S3-Touch-LCD-1.28-details-3.jpg
Features

ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

  • Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with onboard antenna
  • Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
  • Type-C connector, keeps it up to date, easier to use
  • Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
  • Onboard 3.7V MX1.25 lithium battery recharge/discharge header
  • Adapting 6 × GPIO pins via SH1.0 connector
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
  • Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
Small Size, Touch More Possibilities

Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function

What's On Board
  1. ESP32-S3R2
    The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM
  2. W25Q128JVSIQ
    16MB NOR-Flash
  3. CH343P
    USB to UART chip
  4. ME6217C33M5G
    800mA output, low dropout, high rejection rate
  5. ETA6096
    high-efficiency Lithium battery recharge manager

  1. QMI8658
    6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
  2. MX1.25 battery header
    MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
  3. USB Type-C connector
    supports USB1.1 hosts and slave devices
  4. RESET button
  5. BOOT button
    Press it before resetting to enter download mode

Pin Definition

Product Show

Outline Dimensions
ESP32-S3-Touch-LCD-1.28-details-size-1.jpg ESP32-S3-Touch-LCD-1.28-details-size-2.jpg
Product Details
RBD-2770
5 Items

Specific References

EAN13
2770
