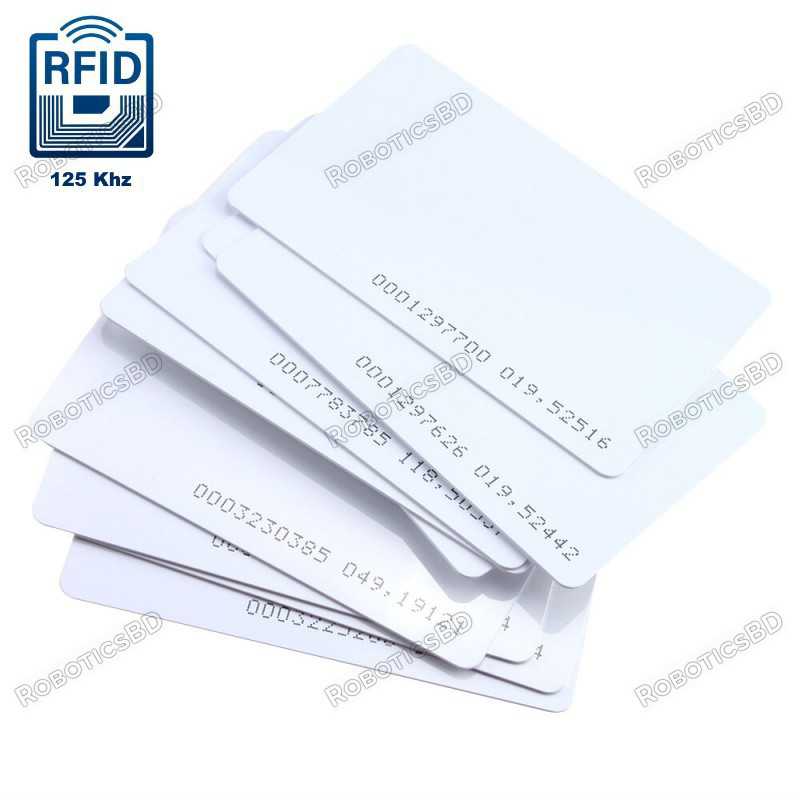

EM4100 125kHz Printable RFID Card

RBD-1099

  • Contactless transmission of data and supply energy (no battery needed)
  • Operating distance: Up to 1 to 5 cm (Depending on Antenna Geometry)
  • Operating frequency: 125KHz
  • Data transfer: 106 kbit/s
  • Data integrity: 16 Bit CRC, parity, bit coding bit counting
  • Anti-collision
  • Printable

Package Content: 1x Card

BDT 24.00
BDT 24.00 BDT 24.00 BDT 24.00 BDT 24.00
Tax included Tax excluded Tax included Tax excluded
BDT 24.00 Tax excluded
BDT 24.00 Tax included
BDT 0.00 Tax
BDT 24.00 Tax excluded
BDT 0.00 Tax
BDT 24.00 Tax included
Quantity
In-Stock
804 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is 125KHz RFID Card used for Contactless transmission of data and supplies energy with no battery needed. Its Operating distance is Up to 100mm depending on antenna geometry. Operating frequency is  125KHz and Data transfer speed is 106 kbit/s. RoboticsBD

It is featured with Data integrity of 16 Bit CRC, parity, bit coding bit counting which allows Anti-collision. These cards are typically used in ticketing transaction: <100 ms including backup management. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications :
  1. Public transportation
  2. Access control
  3. Event Ticketing
  4. Gaming & identity

Features:

  1. Contactless transmission of data and supply energy (no battery needed)
  2. Anticollision
  3. EEPROM
    • 1Kbit, organized in 16 sectors, each district two passwords
    • User definable access conditions for each memory block
    • Data retention of 10 years.
    • Write endurance 100 000 cycles
  4. Security
    • Individual key set per sector (per application) to support multi-application with key hierarchy
    • A unique serial number for each device
    • Transport key protects access to EEPROM on-chip delivery. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Chip Type T5577
Operating Distance Up to 1 to 5 cm (Depending on Antenna Geometry)
Operating Frequency 125 kHz
Storage Capacity 330 bits
Communication Rate 9600 bonds
Reading and Writing Time 67 ms
Erasable Life >100000 times
Operating Temperature (°C) -20 to 60
Dimensions (mm) 85×53.5×1
Shipment Weight 0.04 kg
Shipment Dimensions 9 × 7 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package includes:

1 x EM4100 125kHz RFID Card.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1099
804 Items

Specific References

EAN13
1099
