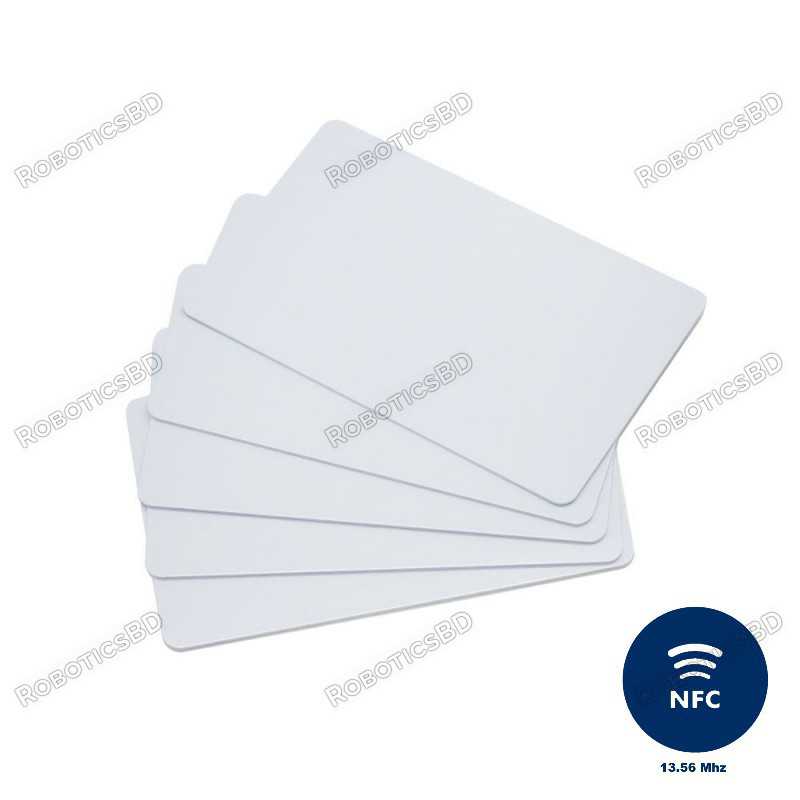

This is RFID 13.56MHz Card used for Contactless transmission of data and supplies energy with no battery needed. Its Operating distance is Up to 1 Meter depending on antenna geometry. Operating frequency is 13.56MHz and Data transfer speed is 106 Kbit/s. Featured By RoboticsBD.
Our Observation:
The iPhone 13 Pro Max does not support this card by default. We had to write the URL using a Samsung Galaxy device. After writing the URL to the card, it then worked on the iPhone 13 Pro Max. However, if we write anything other than a URL, such as text or a contact card, the iPhone doesn't detect the tag.
On our Samsung Galaxy device, it worked by default and we could write data onto it.
It can be used as an introductory card. Simply write your profile link using the NFC tool from your smartphone.
This product is an ID card decoding module. After sensing the ID card, it will actively decode and output the 10-digit card number. It also has an output port that can output high and low levels, which can meet the requirements of general ID cards, such as reading, deleting, and registering. Card operation!
Material: ABS
Dimension(LxWxH): 43.7×30.5×5.3mm
Response Frequency: 13.56MHz
Chip type: FM1108 Fudan Chip
Memory capacity: 8 kbit
Designed for the RFID 13.56MHz duplicator. can copy all the ID card, such as Access Card, District Card, Parking etc.
Contactless transmission of data and supply energy (no battery needed)
Operating distance: Up to 1 to 5 cm (Depending on Antenna Geometry)
Operating frequency: 125KHz
Data transfer: 106 kbit/s
Data integrity: 16 Bit CRC, parity, bit coding bit counting
Anti-collision
Printable
Package Content: 1x Card
Maximum effective distance up to 150mm
Less than 100ms decoding time
Support external antenna
Uart interface
Support EM4100 compatible read-only or read/write tags
Small outline design
Frequency: 125Khz.
Support μEM4001, 4100, or its compatible RFID, ID card.
Read first 10 digits of the RFID/Proximity card.
Support Windows95/98/2000/XP/7/8.
Plug and Play
Reliable working condition
Powered directly from USB, no need external power supply
USB Plug and Play.
RFID reader 0-8cm Reading Distance.
Win8/7/XP/Android Supported.
S50/S70 Card Supported.
OTG Phone Connection.
Built-in buzzer and LED for identification.
