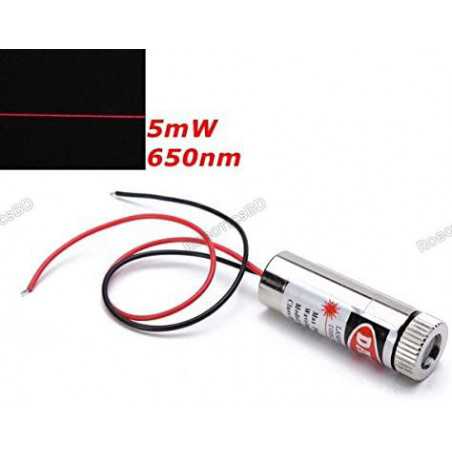

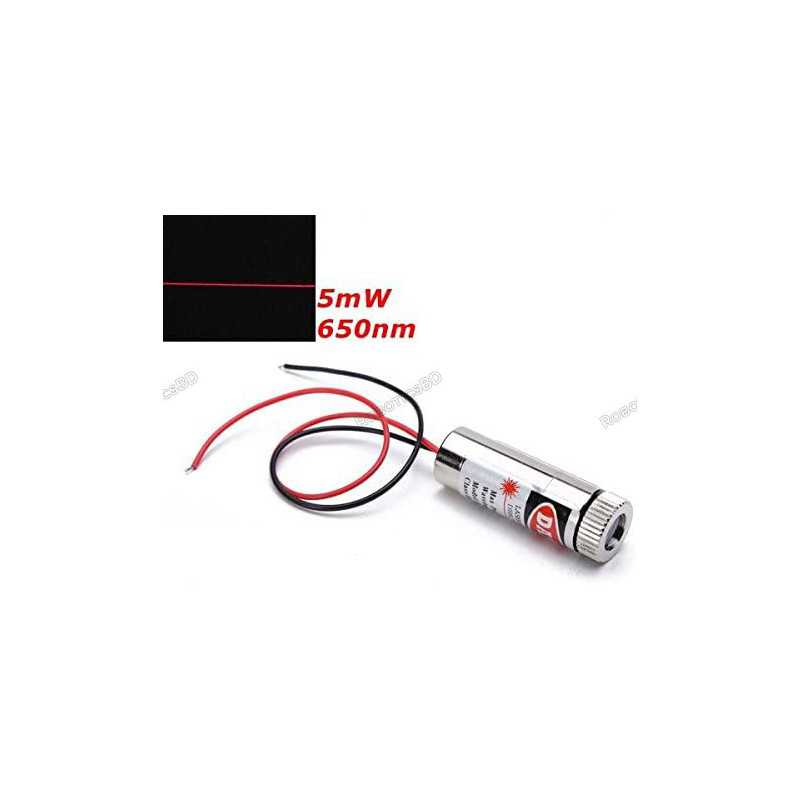

650nm 5mW Focusable Red Line Laser Module Laser Generator Diode Robotics Bangladesh
  • 650nm 5mW Focusable Red Line Laser Module Laser Generator Diode Robotics Bangladesh

650nm 5mW Focusable Red Line Laser Module Laser Generator Diode

RBD-1579

  • Laser Output Type: Red LINE Laser
  • Weight: 15 gm.
  • Wavelength: 650nm
  • Voltage: 3~6V
  • Output Power: Min 2.5mW, Typical 3.0mW, Max 5.0mW
  • Working current: Min 10mA, Typical 20mA, Max 25mA
  • Working voltage: Min 2.3VDC, Typical 4.5VDC, Max 8.0VDC
BDT 480.00
BDT 480.00 BDT 480.00 BDT 480.00 BDT 480.00
Tax included Tax excluded Tax included Tax excluded
BDT 480.00 Tax excluded
BDT 480.00 Tax included
BDT 0.00 Tax
BDT 480.00 Tax excluded
BDT 0.00 Tax
BDT 480.00 Tax included
Quantity
In-Stock
37 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This 5mW red line laser module is suitable for industrial equipment usage such as concentricity and equipment positioning with stable output power and long lifetime. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Industrial equipment usage
  2. Concentricity
  3. Sight and equipment positioning
  4. Signaling devices
  5. Laser test

Features:

  1. 650nm focusable red line laser module
  2. Supply current does not vary with the voltage ranging from 3.0V to 5.0V
  3. Focus line’s Intensity can be adjusted with the help of lens ring head
  4. Practical test for point head: reflection visible to random target >1000m

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Optical Power 5mW
Wavelength 650nm(red laser)
Voltage DC 3-5V
Current <40mA
Beam Shape line
Emitting Angle 120°
Power Cord Length 135mm(5.31")
Lens Material plastic
Size Φ12X35mm
Shipment Weight 0.015 kg
Shipment Dimensions 12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note:

  1. This laser module has high output power, please wear goggles when testing or using.
  2. The red cord is anode, the black cord is cathode.
  3. It does not emit the RED-SPOT or Single RED Cross LINE since it is a line laser module.
  4. Please use the DC power supply 3~6V.
  5. Careful! This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
  6. The laser beam must not be directed towards the eyes of a person or an animal in any way.

Package Includes:

1 x 5mW Red Line Laser Module.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1579
37 Items

Specific References

EAN13
1579
