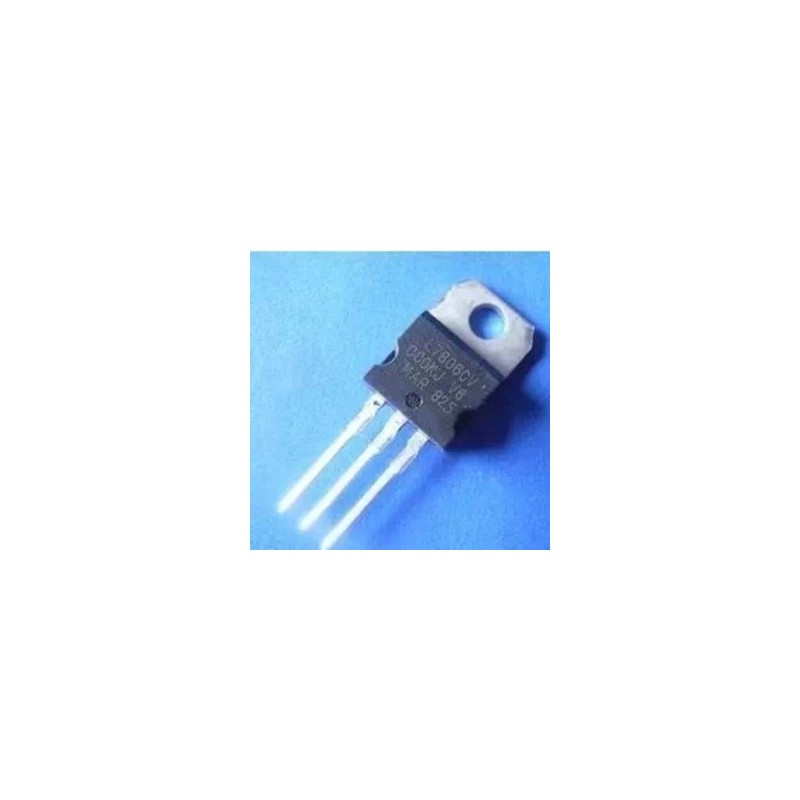

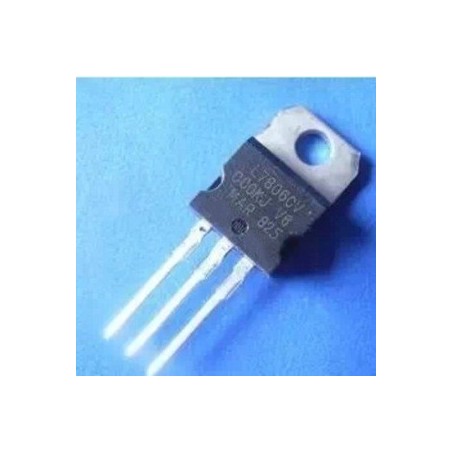

L7806CV Linear Voltage Regulator

Reference RBD-1012

Output Current up to 1A
Output Voltages of 5V
Thermal Overload Protection
Short Circuit Protection

Description
Product Details

Description

The KA78xx series of the three-terminal positive regulator are available in the TO-220/D-PAK package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut-down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Output Current up to 1A
Output Voltages of 5V
Thermal Overload Protection
Short Circuit Protection
Output Transistor Safe Operating area Protection

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Output Voltage	6 V
Maximum Output Current	1.5A
Package Type	TO-220
Output Type	Fixed
Mounting Type	Through Hole
Maximum Input Voltage	36 V
Pin Count	3
Minimum Operating Temperature	0 °C
Maximum Operating Temperature	125 °C
Number of Outputs	1
Polarity	Positive
Typical Dropout Voltage @ Current	2 V @ 1 A
Quiescent Current	8mA
Dropout Voltage Measurement Current	1 A
Width	4.6mm
Dimensions	10.4 x 4.6 x 15.75mm
Load Regulation	240 mV
Series	L78xx
Height	15.75mm
Length	10.4mm
Line Regulation	240 mV
Shipment Weight	0.005 kg
Shipment Dimensions	3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x L7806CV Linear Voltage Regulator.
