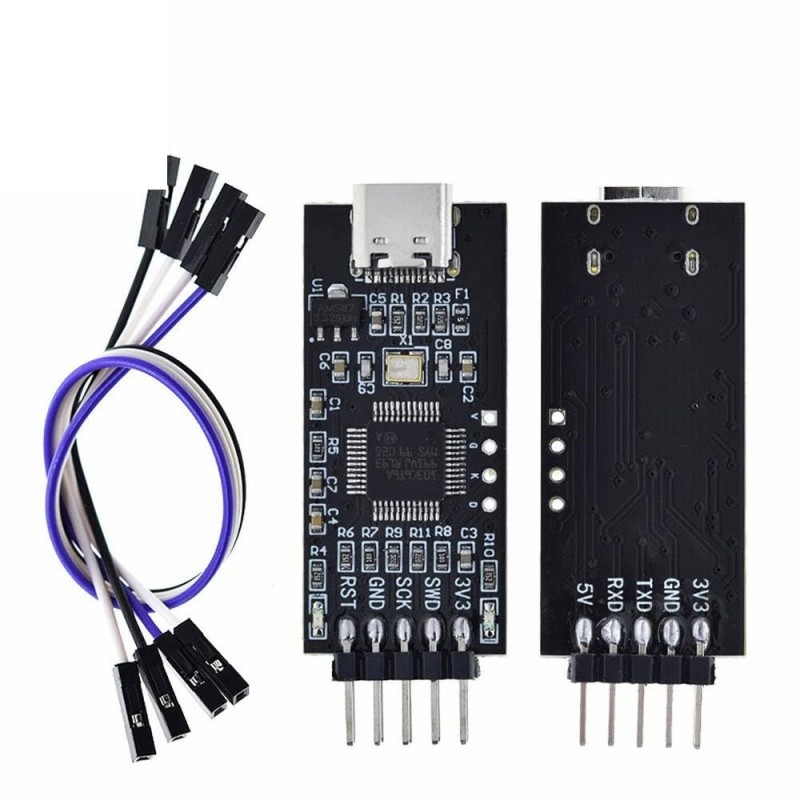

The DAPLINK STM32 Burner, Downloader, and Emulator is a versatile tool designed to replace JLINK OB and STLINK for ARM microcontroller development. Compatible with STM32, CKS32, and APM32 series, it enables efficient burning, downloading, and debugging through the CMSIS-DAP interface. Featuring dual LED indicators for status monitoring, plug-and-play functionality for Windows 10/11, and easy driver setup for Windows 7/8, this device is developer-friendly and reliable. Its seamless integration with Keil software makes it an essential tool for embedded system engineers, hobbyists, and IoT developers working on ARM-based microcontrollers. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Wide Compatibility – Supports STM32, CKS32, and APM32 microcontrollers.
Debugger & Emulator – Functions as a burner, downloader, and CMSIS-DAP debugger.
Plug-and-Play – No drivers required for Windows 10/11; simple driver install for 7/8.
LED Status Indicators – Power, detection, and burning status displayed in real time.
Keil IDE Support – Works with CMSIS-DAP Debugger in Keil for smooth operation.
High-Speed Download – Supports up to 10M download speed (adjustable for line length).
Compact & Lightweight – Easy to carry and integrate into development setups.
Cost-Effective Alternative – Replaces JLINK OB and STLINK with reliable performance.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
STM32 Development – Burn, download, and debug STM32 microcontrollers.
CKS32 & APM32 Projects – Compatible with multiple ARM-based MCU families.
IoT Development – Rapid prototyping and debugging of embedded IoT devices.
Educational Use – Perfect for learning ARM microcontroller programming.
Industrial Electronics – Reliable debugging for professional MCU development.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Product Type | Debugger, Burner & Emulator |
| Compatible MCUs | STM32, CKS32, APM32 |
| Interface | CMSIS-DAP |
| Supported IDE | Keil uVision (CMSIS-DAP Debugger) |
| Debug Modes | SW (Serial Wire) preferred |
| Max Download Speed | 10M (adjustable) |
| LED Indicators | Power, detection, and burning status |
| OS Support | Windows 7/8 (with driver), Windows 10/11 (plug & play) |
| Dimensions | Compact design |
| Shipment Weight | 0.0270 kg |
| Shipment Dimensions | 11 × 10 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
NOTE
The IDCODE of STM32 chip starts with 1, and that of domestic microcontroller starts with 2. Please note!
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Driver Installation
Win 10, Win11 system without installation driver, plug and play.
The CDC serial port driver must be installed in Windows 7 and 8; otherwise, the virtual serial port function cannot be used.
(Driving principle, can not see: Inf file for Windows 10. Copy the usbser. inf file to Windows 10. Usbser. inf file can be used as a common driver configuration file for CDC serial port devices in Windows7, with SourceDisksNames and SourceDisksFiles annotated. Apply to all CDC devices, no matter which device, and once installed, plug in other CDC serial devices will automatically install.)
1. First, insert the DAPLINK device, ignore the error "failed to install driver", open device Manager, right click on the corresponding device, and choose Update driver software from the menu:
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
2. Select browse computer to find driver software:
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
3. Click browse and select the directory where the cdc_usbser. inf file is located under the CDC serial Port Driver file in tools and Software.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
4. Click Next to install the driver. In the Windows security dialog box, select "Always install this driver software".
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
5. Click Next to install the driver. In the Windows security dialog box, select "Always install this driver software".
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Configuration in Keil software:
1. Use Keil software to open the program, and select steps 1, 2, and 3 as shown in the picture.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
2. Select CMSIS-DAP Debugger on the Utilities screen, as shown in the following figure.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
3. Detailed configuration:
- "Select "SW" mode, not JTAG;
- The download speed is up to 10M. If the download line is too long and the contact is not good, burning may fail. Please reduce the download speed.
- Select "Autodetect" to automatically detect;
- This string of numbers + English, proving that the MCU has been detected.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
4. Click burning, the progress bar below will display burning progress, burning will be completed soon.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x DAPLINK Replaces JLINK OB/STLINK STM32 Burner Downloader and Emulator ARM for Arduino
